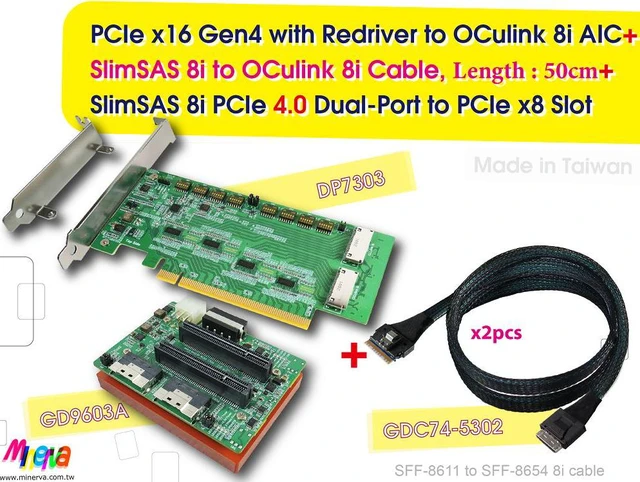

PCIe x16 Gen4 with ReDriver to OCulink 8i Daul port AIC & OCulink 8i to SlimSAS 8i cable, 100cm x2pcs & SlimSAS 8i Daul port to PCIe x8 Slot Daul port

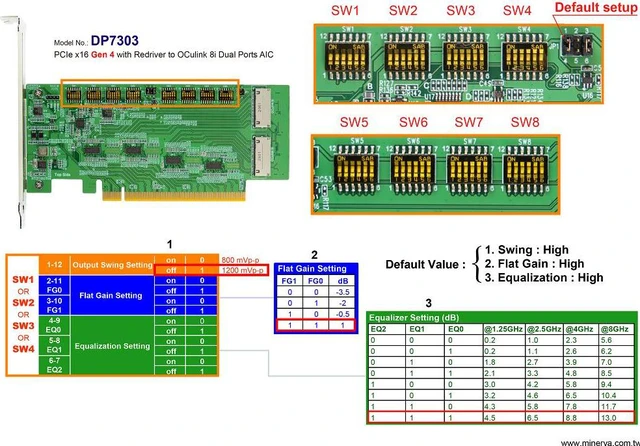

#"DP7303"adapter:
Features:
* OCulink 8i(SFF-8612) to PCIe x16 Gen4 convert
* Built-in SFF-8612 8i connector x2pcs, pin define by SFF-9402 Rev 1.1

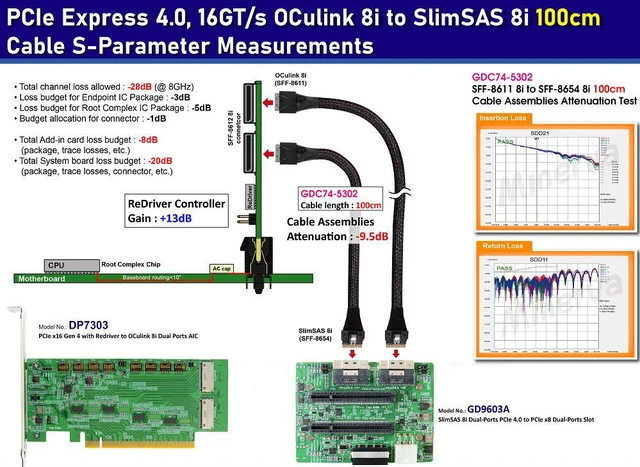

* Built-in ReDriver to extend PCIe 4.0, 16GT/s 16 lanes differential pair signals data link width.
* The PCIe 16 lanes can be bifurcated into four x4 link width to support different system topologies
* Built-in PCIe 100MHz Clock buffer(Address: 0x6C) for OCulink 8i(SFF-8612) to drive longer cable length. It may be buffered and fanned out to the OCulink 8i(SFF-8612) clock pin.
* Built-in SMBus Switch(Address: 0x70) with Reset Funtion for OCulink 8i(SFF-8612) SMBus communication
* Built-in SMBus I/O Expander(Address: 0x20) for OOB (out of band) management to remote OCulink 8i (SFF-8612) Reset signals.
* Supports PCIe PERST# management to control OCulink 8i(SFF-8612) Reset signals.
* Built-in PERST# Bus Buffer to be used over longer cable length.
* Built-in WAKE# Auto-Bidirectional Bus Buffer to be used over longer cable length.
* Built-in CLKREQ# Auto-Bidirectional Bus Buffer to be used over longer cable length.
* Built-in PWRBRK# Bus Buffer to be used over longer cable length.
* Built-in 12V to 3.3V, 5.5A PWM Power controller
* Built-in 3.3V Power Load Switch for ReDriver controller Power Protection.
* The WAKE# signals power supply can choose + 3.3V or 3.3VAUX, the default is 3.3VAUX
* D1 Green LED on indicates AIC ready

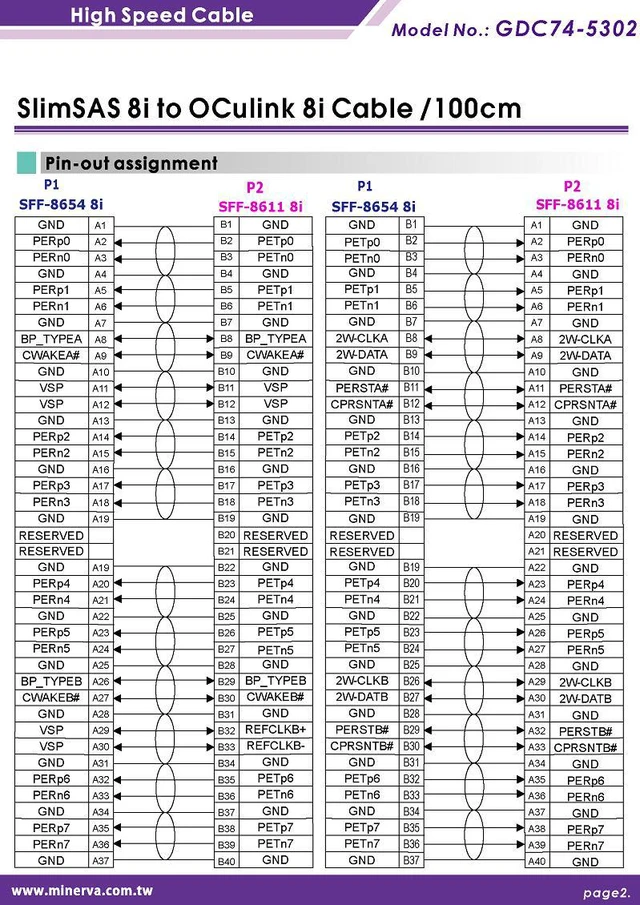

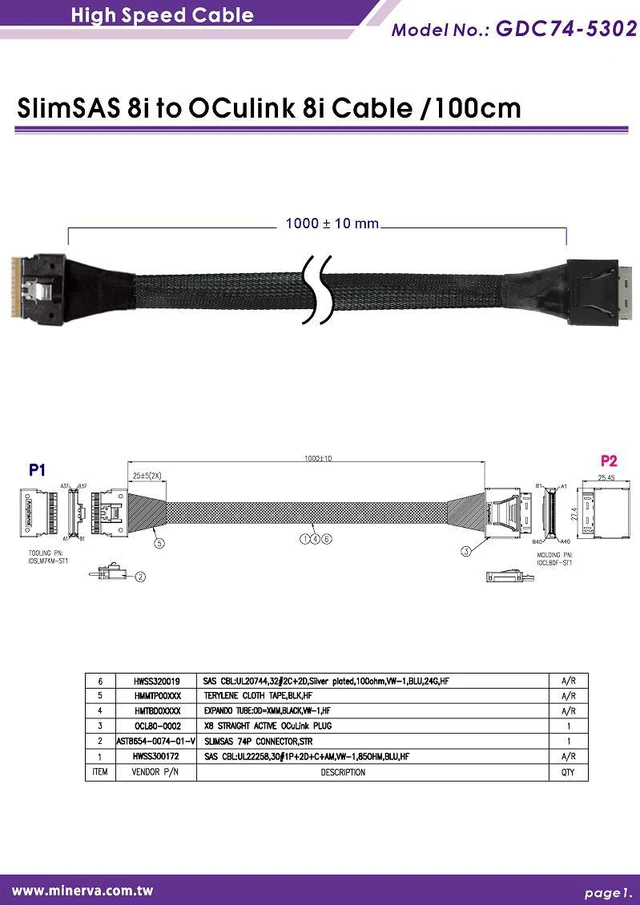

#Part Number: GDC74-5302
Product Description: PCIe Gen 4 SlimSAS 8i (SFF-8654) to OCulink 8i (SFF-8611) cable
Cable Length: 100CM

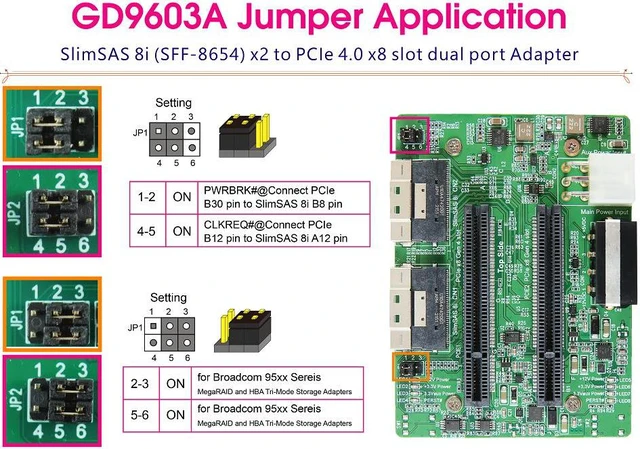

#GD9603A Adapter
Features:
* SlimSAS 8i(SFF-8654) x2 to PCIe x16 convert
* Built-in SlimSAS 8i(SFF-8654), 30udual port connector
* Built-in PCIe x8, 15udual port Slot
* Built-in PCIe PERST# Bus Buffer
* Support PCIe PERST# manual reset & generator
* Built-in SMBus Hot Swappable 2-Wire Bus Buffer
* Supports I/O card insertion into a live PCIe Solt without corruption of the data and clock busses
* Built-in +12V Hot Plug Power with eFuse protection for PCIe +12V
Programmable Current Limit: 6.5A
Programmable Inrush Current Slew Rate
Thermal shutdown protection and fault alert
Back-to-Back (B2B) FET Operation
* Built-in 12V output with 30-V, N channel NexFET power MOSFET, 32m ohm
* Built-in 12V output with Schottky Barrier Power Rectifier
* PWM synchronous 12V to 3.3V buck converter Power
4A maximum output current
Over Current Protection
Under Voltage Protection
Under voltage lock out protection (UVLO) monitors
Thermal shutdown protection
ESD Human Body Mode (HBM) /2KV
* Built-in 3.3V Power Load Switch for PCIe + 3.3V
* 12V to 3.3V, 500mA LDO buck converter Power
* Built-in 3.3V Power Load Switch for PCIe 3.3V aux
* Supports SlimSAS 8i BP_TYPEA, BP_TYPEB Pull up for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
* Supports SlimSAS 8i CPRSNTA#, CPRSNTB# Pull Low for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
* LED1, LED5 PCIe +12V power ready
* LED2, LED6 PCIe + 3.3V power ready
* LED3, LED7 PCIe 3.3V aux power ready
* LED4, LED8 indicate PERST# signal for LED function intentionally inverted (LED OFF - normal)

Specifications

:
* Support PCI Express Base Specification Rev 4.0
* Compliant with PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with SFF-8654 Rev 1.2
* Compliant with SFF-9402 Rev 1.1
* Support Broadcom Compliant with SFF-9402 Rev 1.1
