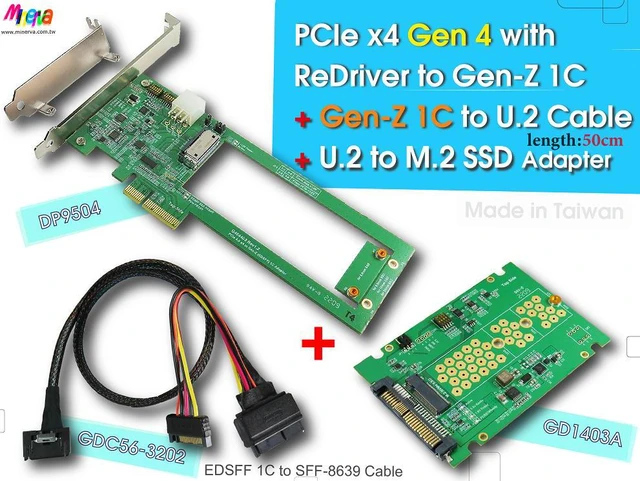

PCIex4 Gen 4 with ReDriver for EDSFF 1C Adapter & EDSFF 1C to U.2 Cable, 50cm & U.2 to M.2 NVMe Adapter KIT

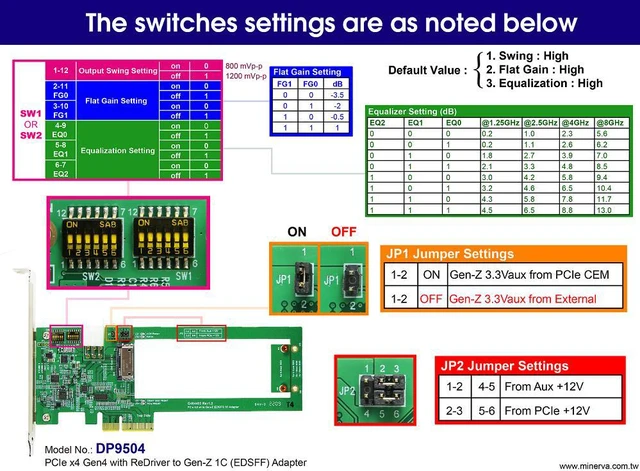

#DP9504 adapter:

Features:
* Gen-Z 1C (EDSFF) to PCI Express 4.0 x4 convert
* Built- in EDSFF 1C with latch connector

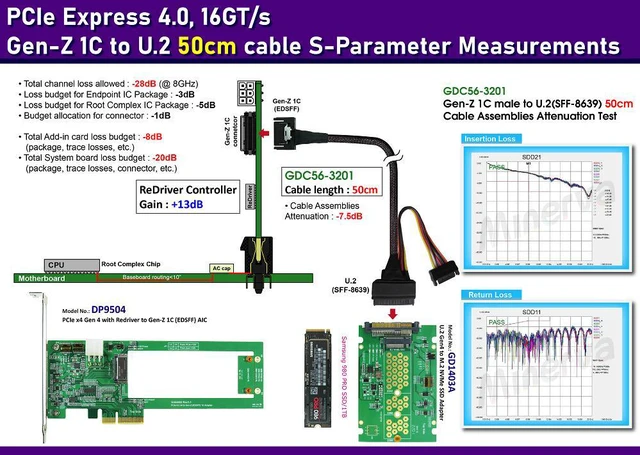

* Built- in PCIe ReDriver to extend PCIe Gen4, 16GT/s differential pair signals
* Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
* Built- in SMBCLK, SMBDAT bidirectional buffer repeater
* Built- in SMBUS I/O Expander(Address: 0x41) for EDSFF PWRDIS control
* Built- in SMBUS I/O Expander(Address: 0x41) for EDSFF SMBRST# control
* Built- in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable
* Built- in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable
* Built- in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable
* Built- in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable

Specifications

:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Support SSD_Form_Factor_Version1_a
* Compliant with SFF-TA-1002 Specification Version 1.3
* Compliant with SFF-TA-1009 Specification Version 2.0

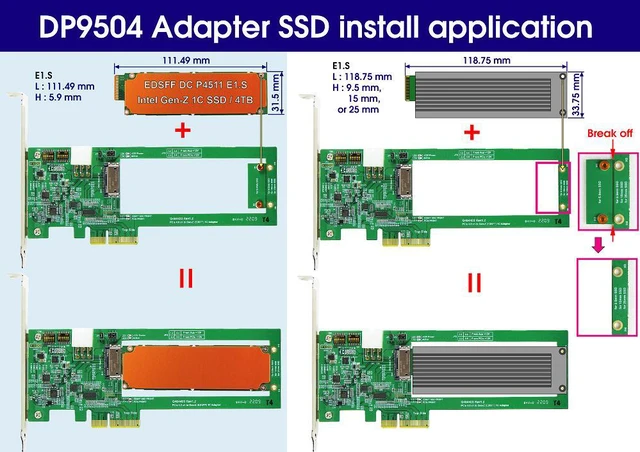

Supports the following form factor EDSFF 1C(Gen-Z) SSD:
* EDSFF 1C(Gen-Z) E1. S 5.9 mm Height
* EDSFF 1C(Gen-Z) E1. S 9.5 mm Height
* EDSFF 1C(Gen-Z) E1. S 15mm Height
* EDSFF 1C(Gen-Z) E1. S 25mm Height

Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard

Part Number: GDC56-3201

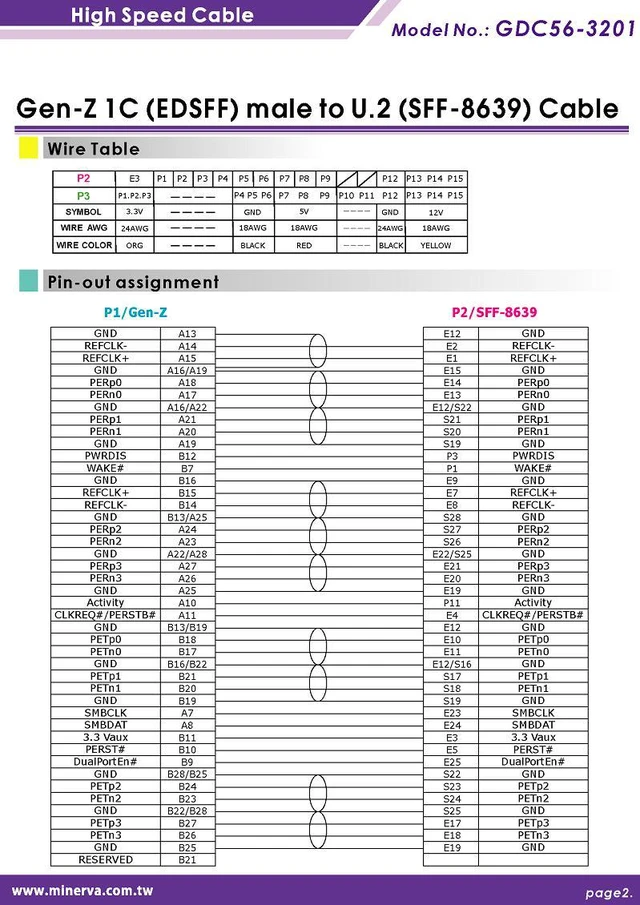

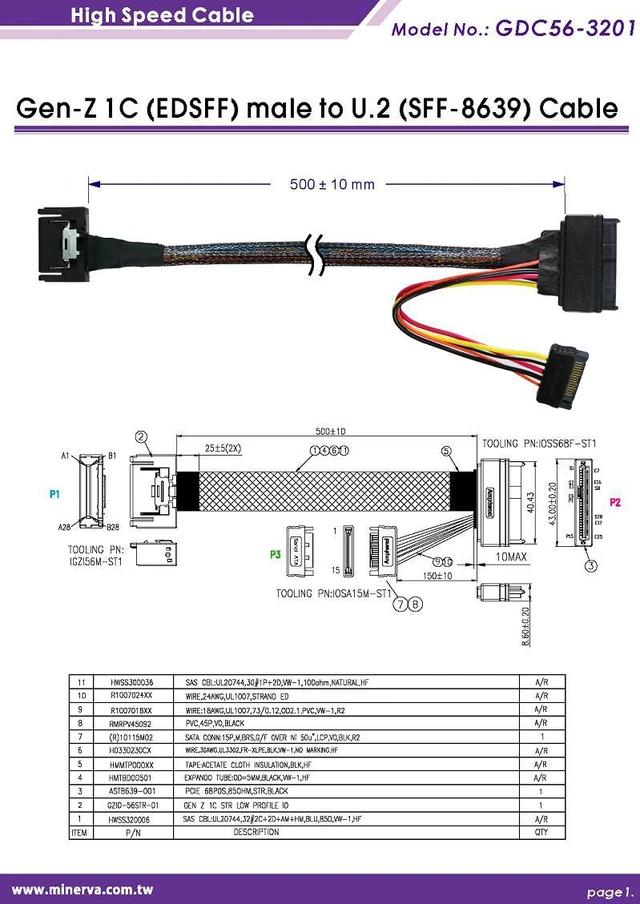

Product Description: Gen-Z (EDSFF) 1C Male to U. 2 (SFF-8639) Cable
Cable Length: 50CM

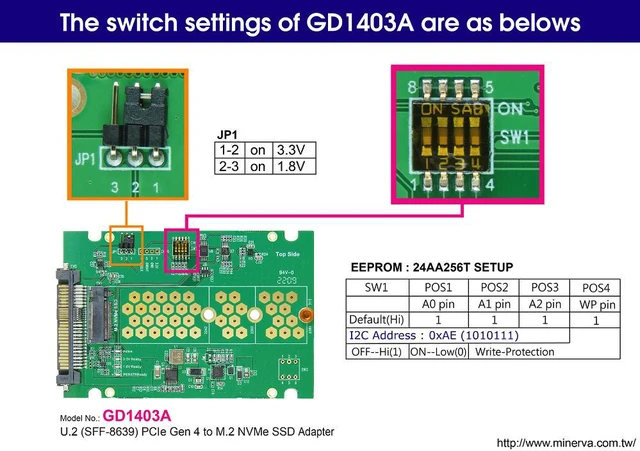

#GD1403A Adapter
Features:
* M. 2 NVMe to U. 2(SFF-8639) convert
* Built-in SFF-8639 connector, pin-out defined by SFF-9402 Rev 1.1
* PWM 12V to 3.3V synchronous buck converter Power for M. 2 NVMe SSD
5.5A maximum output current
Output Discharge Control
The output overcurrent protection (OCP)
Uundervoltage lock out protection (UVLO) monitor
Over/Under Voltage Protection
Thermal shutdown protection
ESD HBM (Human Body Mode) /500V
* Built-in 3.3V Hotswap Power controller with programmable Inrush Slew rate, support a maximun continuous current of 6.5A for M. 2 SSD protection
* Built-in 3.3V input with 400W TVS (TRANSIENT VOLTAGE SUPPRESSOR) ESD protection
* Built-in 3.3V output with 30-V, N channel NexFET power MOSFET, 32 m ohm
* Built-in 3.3V output with SCHOTTKY BARRIER Power Rectifier
* Supports M. 2 3.3V & 1.8V supply
* Supports M. 2 VIO_CFG Signal
* Supports M. 2 PERST# Signal 3.3V and 1.8V voltage level shift
* Supports M. 2 CLKREQ# Signal 3.3V and 1.8V voltage level shift
* Supports M. 2 WAKE# Signal 3.3V and 1.8V voltage level shift
* Supports PWRDIS Signal from U. 2 pin to M. 2 pin
* Supports M. 2 / 1.8V to U. 2/ 3.3V SMBus Hot Swap, Level Shift
* Supports M. 2 / 1.8V to U. 2 / 3.3V SMBus isolated, repeater
* Built-in SMBUS EEPROM 64KB
* LED1 RED Blinking indicates M. 2 active
* LED2 Green ON indicates 3.3V Power Ready
* LED3 Green ON indicates 1.8V Power Ready
* LED4 Green OFF indicates PERST# Normal (Function intentionally inverted)

Specificationa:
* Compliant with NVM Express 1.3 a
* Support PCI Express Base Specification Rev 4.0
* Support SSD_Form_Factor_Version1_a
* Compliant with PCI Express M. 2 Specification Version 1.2
* Compliant with PCIe SFF-8639 Module Specification Rev 3.0
* Compliant with SFF-TA-1001 Rev 1.1

Supports the following form factor M. 2
SSD:
* Type 2242-D2-B-M: 42mm (L) x 22mm (W)
* Type 2260-D2-B-M: 60mm (L) x 22mm (W)
* Type 2280-D2-B-M: 80mm (L) x 22mm (W)
