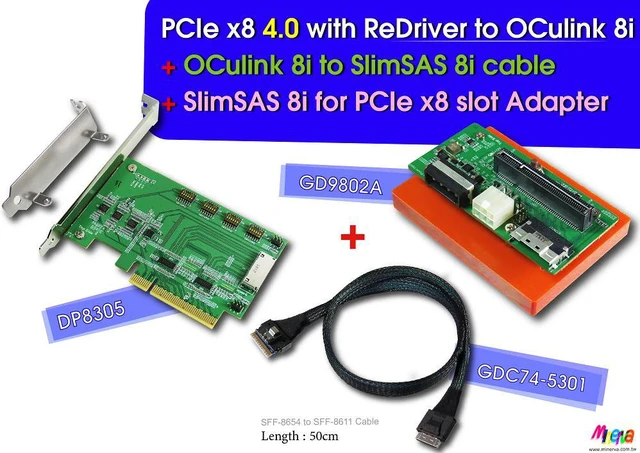

PCIe x8 Gen4 with ReDriver to OCulilnk 8i AIC & OCulilnk 8i to SlimSAS 8i cable,50cm & SlimSAS 8i to PCIe x8 Slot Gen4 with Hot plug Power Protection

#"DP8305"adapter:
Features:
* OCulink 8i (SFF-8612) to PCIe x8 Gen 4 convert
* Built-in OCulink 8i (SFF-8612) connector, pin-out defined by SFF-9402 Rev 1.1

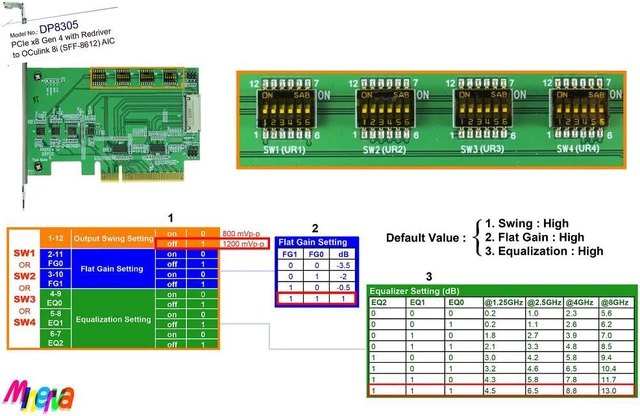

* Built-in ReDriver to extend PCIe 4.0 8 Lanes signals reach.
* Built-in PCIe 100MHz Clock buffer, default Zout=100 ohm to drive longer trace length and longer cable length.
* Built-in PCIe SMBus Switch (Address 0xE2) 4-channel with Reset Function for OCulink 8i (SFF-8612) SMBus and PCIe 100MHz Clock buffer SMBus control
* Built-in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable length.
* Built-in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable length.
* Built-in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable length.
* Built-in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable
* D1 Green LED on indicates AIC ready

Specifications

:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with Support SFF-9402 Rev 1.1
* Compliant with PCI_Express_OCuLink_ 1.0 a

Operating system support:
* Windows 8 & 8.1 * Windows 10
* UEFI 2.3. 1 or later

Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard

Number: GDC74-5301

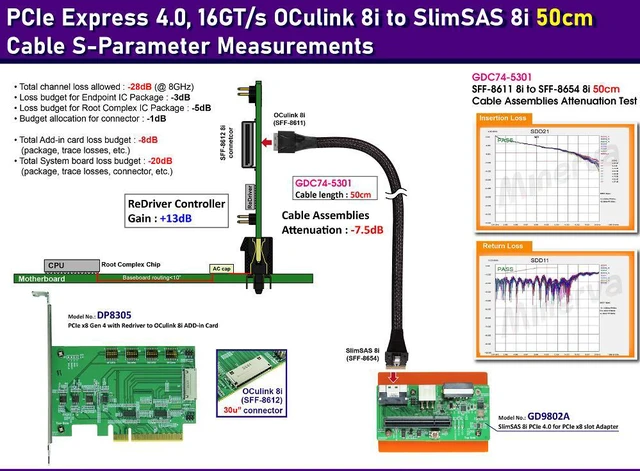

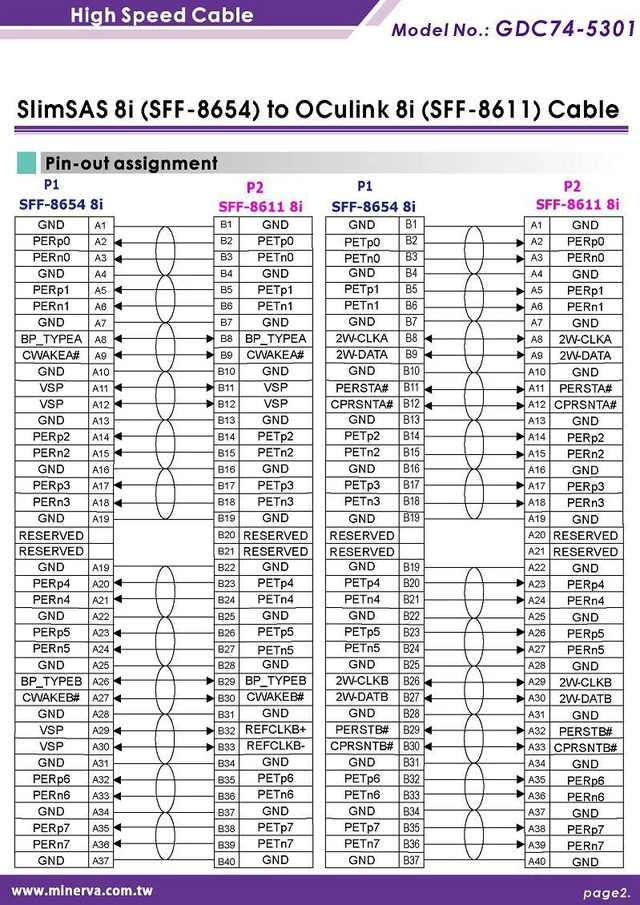

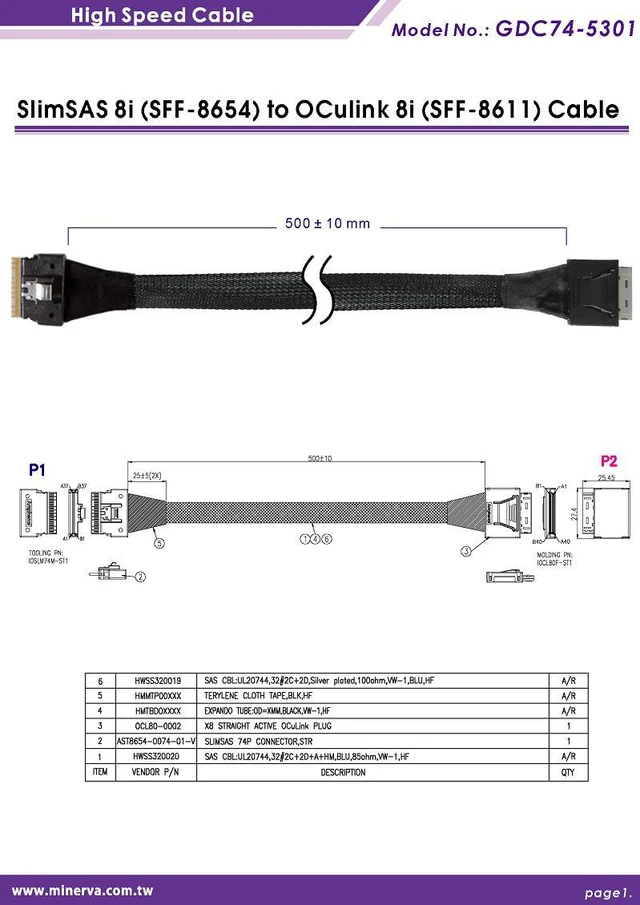

Product Description: PCIe Gen 4 SlimSAS 8i (SFF-8654) to OCulink 8i (SFF-8611) cable
Cable Length: 50CM


#"GD9802A"adapter:
Features:
* SlimSAS 8i(SFF-8654) to PCIe x8 convert
* Built-in SFF-8654 8i connector, pin-out defined by SFF-9402 Rev 1.1
* Built-in PCIe x8 Slot
* Built-in +12V Hot Plug Power with eFuse protection for PCIe +12V
* Programmable Current Limit: 6.5A
* Programmable Inrush Current Slew Rate
* Thermal shutdown protection and fault alert
* Back-to-Back (B2B) FET Operation
* PWM synchronous 12V to 3.3V buck converter Power
* 4A maximum output current
* Over Current Protection
* Under Voltage Protection
* Under voltage lock out protection (UVLO) monitors
* Thermal shutdown protection
* ESD Human Body Mode (HBM) /2KV
* Built-in 3.3V Power Load Switch for PCIe + 3.3V
* 12V to 3.3V LDO buck converter Power
* Built-in 3.3V Power Load Switch for PCIe 3.3V aux
* Built-in SMBus Hot Swappable 2-Wire Bus Buffer

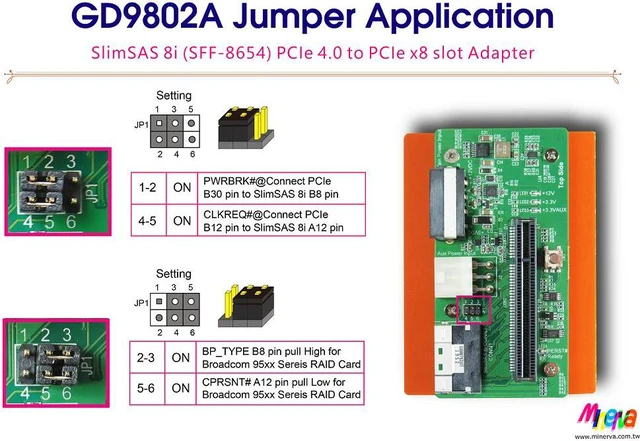

* Supports SlimSAS 8i BP_TYPEA, BP_TYPEB Pull up for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
* Supports SlimSAS 8i CPRSNTA#, CPRSNTB# Pull Low for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
* LED1 PCIe +12V power ready
* LED2 PCIe + 3.3V power ready
* LED3 PCIe 3.3V aux power ready

Specifications

:
* Support PCI Express Base Specification Rev 4.0
* Compliant with PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with SFF-8654 Rev 1.2
* Compliant with SFF-9402 Rev 1.1
* Support Broadcom Compliant with SFF-9402 Rev 1.1
