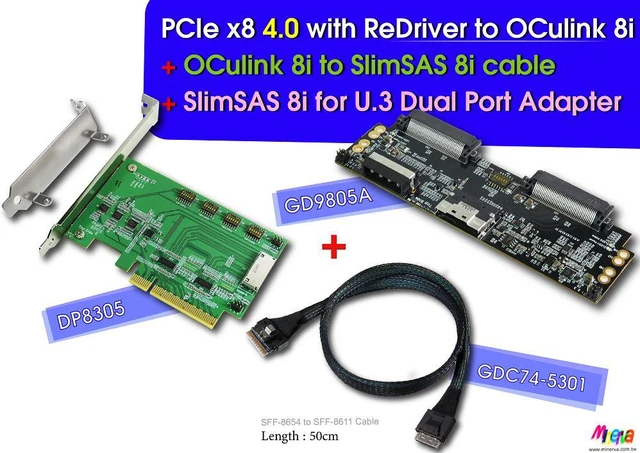

PCIe x8 Gen4 with ReDriver to OCulink 8i AIC & OCulink 8i to SlimSAS 8i cable, 50cm & SlimSAS 8i to U.3 Daul port Adapter

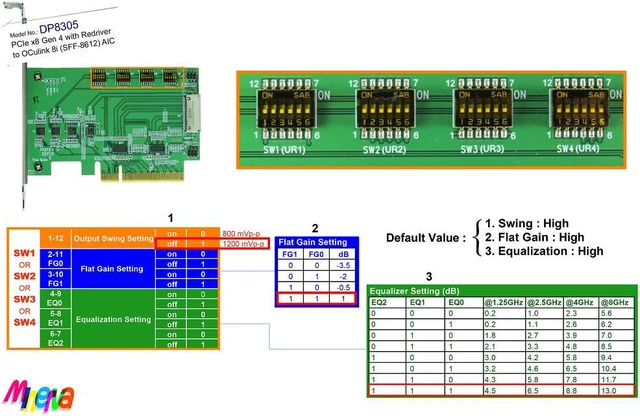

#"DP8305"adapter:
Features:
* OCulink 8i (SFF-8612) to PCIe x8 Gen 4 convert
* Built-in OCulink 8i (SFF-8612) connector, pin-out defined by SFF-9402 Rev 1.1
* Built-in ReDriver to extend PCIe 4.0 8 Lanes signals reach.
* Built-in PCIe 100MHz Clock buffer, default Zout=100 ohm to drive longer trace length and longer cable length.
* Built-in PCIe SMBus Switch (Address 0xE2) 4-channel with Reset Function for OCulink 8i (SFF-8612) SMBus and PCIe 100MHz Clock buffer SMBus control
* Built-in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable length.
* Built-in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable length.
* Built-in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable length.
* Built-in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable
* D1 Green LED on indicates AIC ready

Specifications

:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with Support SFF-9402 Rev 1.1
* Compliant with PCI_Express_OCuLink_ 1.0 a

Operating system support:
* Windows 8 & 8.1 * Windows 10
* UEFI 2.3. 1 or later

Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard

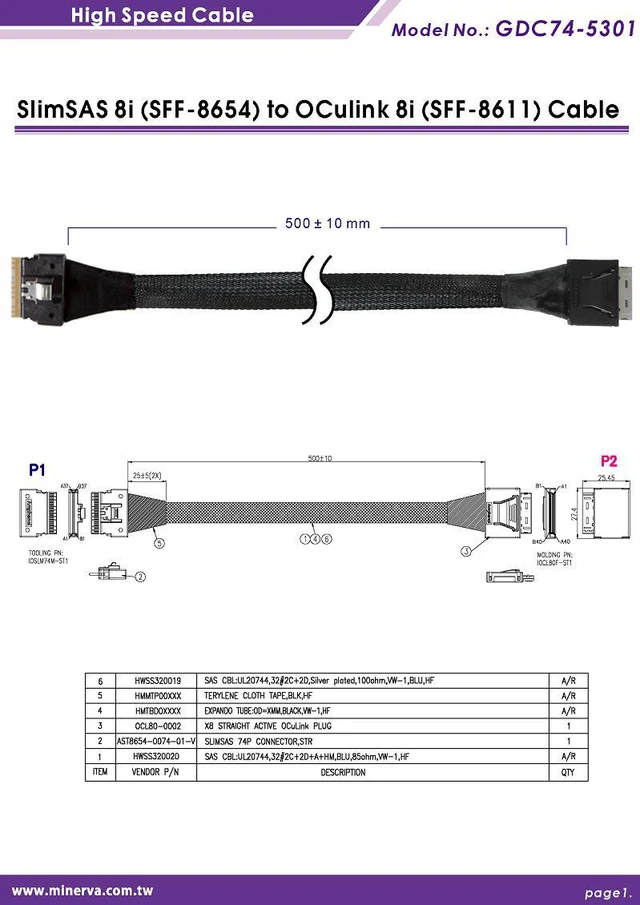

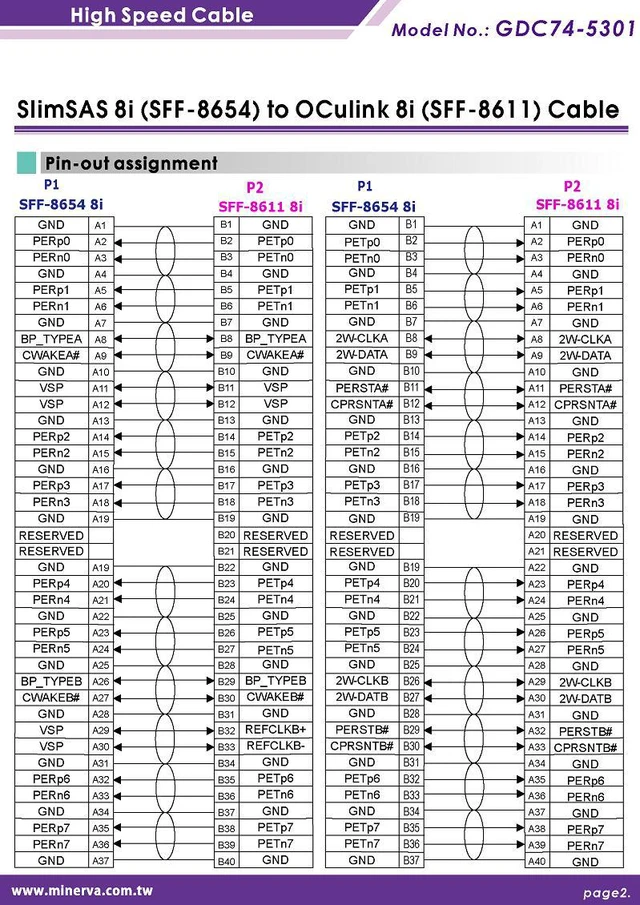

Number: GDC74-5301
Product Description: PCIe Gen 4 SlimSAS 8i (SFF-8654) to OCulink 8i (SFF-8611) cable
Cable Length: 50CM


#"DP8401"adapter:
Features:
* SlimSAS 8i (SFF-8654) to PCI Express 4.0 convert
* Built-in SFF-8654 8i connector, pin-out defined by SFF-9402 Rev 1.1
* Built-in PCIe ReDriver to extend PCIe Gen4, 16GT/s 8 Lanes differential pair signals
* Built-in PCIe 100MHz Clock buffer to drive longer trace length and longer length cable
* Built-in PCIe SMCLK, SMDAT bidirectional buffer repeater
* Built-in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable
* Built-in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable
* Built-in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable
* Built-in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable
* D1 Green LED on indicates AIC ready

Specifications

:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Support SSD_Form_Factor_Version1_a
* Compliant with SFF-8654 Specification Version 1.2

Operating system support:
* Windows 7
* Windows 8 & 8.1
* Windows 10
* UEFI 2.3. 1 or later

Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard
