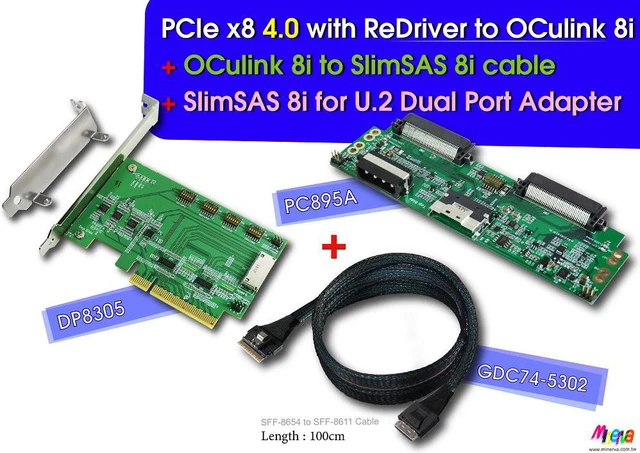

PCIe x8 Gen4 with ReDriver to OCulink 8i AIC & OCulink 8i to SlimSAS 8i cable, 100cm & SlimSAS 8i to U.2 Daul port Adapter

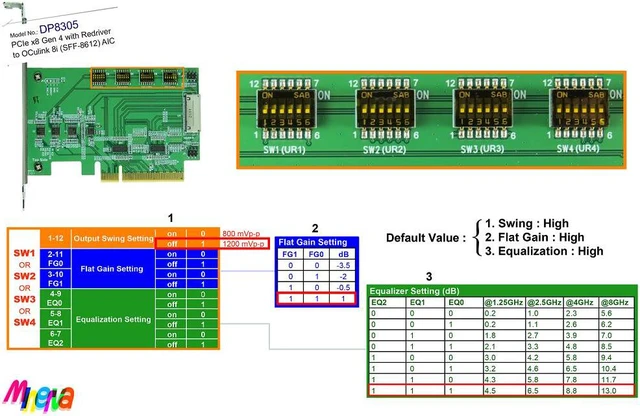

#"DP8305"adapter:
Features:
* OCulink 8i (SFF-8612) to PCIe x8 Gen 4 convert
* Built-in OCulink 8i (SFF-8612) connector, pin-out defined by SFF-9402 Rev 1.1

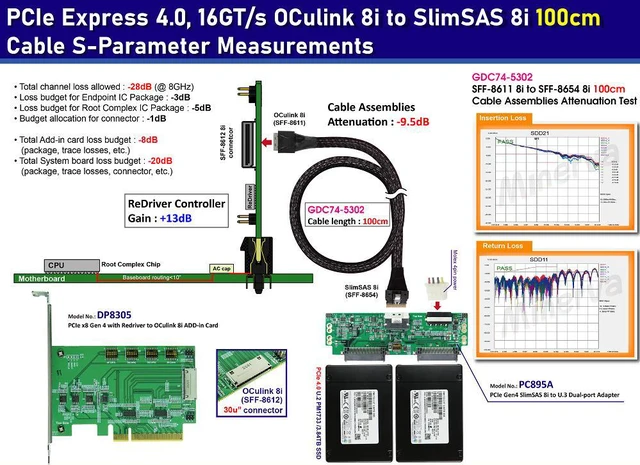

* Built-in ReDriver to extend PCIe 4.0 8 Lanes signals reach.
* Built-in PCIe 100MHz Clock buffer, default Zout=100 ohm to drive longer trace length and longer cable length.
* Built-in PCIe SMBus Switch (Address 0xE2) 4-channel with Reset Function for OCulink 8i (SFF-8612) SMBus and PCIe 100MHz Clock buffer SMBus control
* Built-in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable length.
* Built-in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable length.
* Built-in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable length.
* Built-in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable
* D1 Green LED on indicates AIC ready

Specifications

:
* PCI Express Base Specification Rev 4.0
* PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
* Compliant with Support SFF-9402 Rev 1.1
* Compliant with PCI_Express_OCuLink_ 1.0 a

Operating system support:
* Windows 8 & 8.1 * Windows 10
* UEFI 2.3. 1 or later

Applications:
* Rack server
* Microserver and Tower server
* High performance computing
* Hareware accelerator
* Storage Controller HBA (Host Bus Adapter)
* Desktop PC/motherboard

Number: GDC74-5302

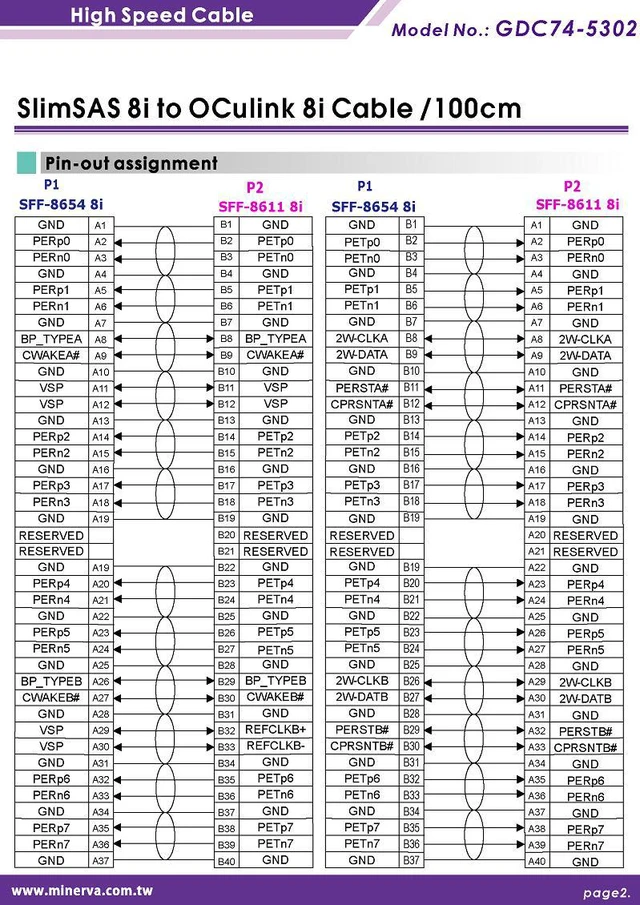

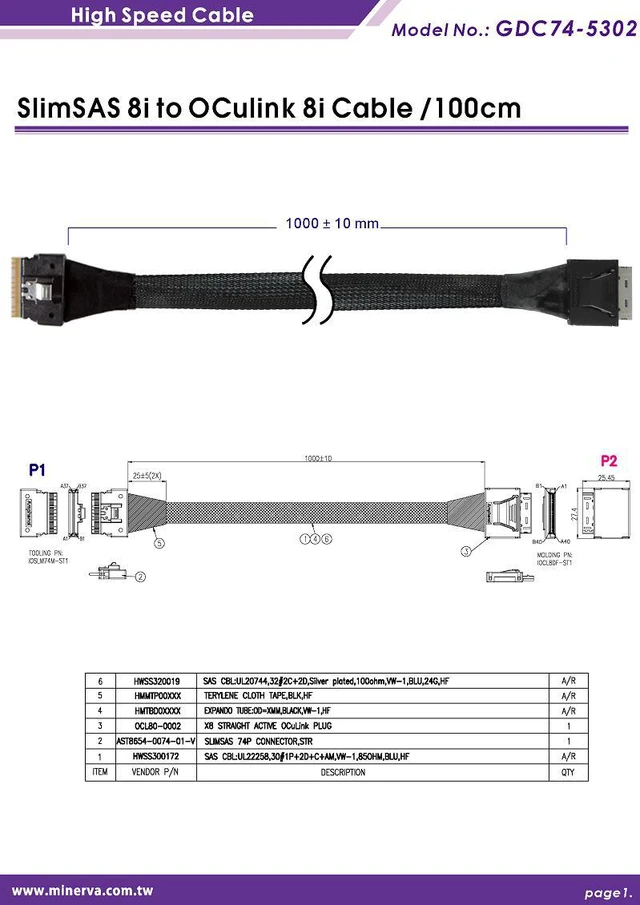

Product Description: PCIe Gen 4 SlimSAS 8i (SFF-8654) to OCulink 8i (SFF-8611) cable
Cable Length: 100CM


#PC895A Adapter
Features:
* U. 2 dual ports to SlimSAS 8i (SFF-8654) convert
* Built-in SlimSAS 8i, 15 connector, pin-out defined by SFF-9402 Rev 1.1
* Built-in two U. 2 SFF-8639, 30 connector
* Built-in two 12V Hot Plug Power with eFuse protection for U. 2 dual ports
Programmable Current Limit: 6.5A
? Programmable Inrush Current Slew Rate
? Thermal shutdown protection and fault alert
? Back-to-Back (B2B) FET Operation
* Supports U. 2 to PCIe CLKREQ#, WAKE#

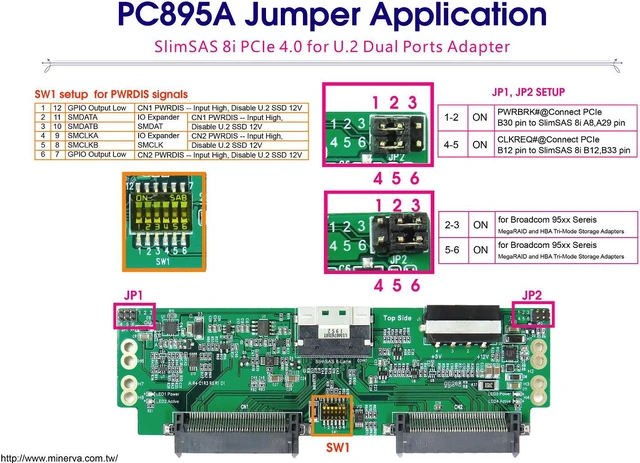

* Supports U. 2 PWRDIS Implementation
* Built-in SMBus Hot Swappable 2-Wire Bus Buffer
* Supports SlimSAS 8i BP_TYPEA, BP_TYPEB Pull up for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
* Supports SlimSAS 8i CPRSNTA#, CPRSNTB# Pull Low for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
* LED2, LED4 Green LED on indicates U. 2 NVMe SSD power ready
* LED1, LED3 RED LED Blinking indicates U. 2 active status

Specifications

:
* Compliant with NVM Express 1.4
* Support PCI Express Base Specification Rev 4.0
* Support SSD_Form_Factor_Version1_a
* Compliant with PCIe_SFF-8639_R 3.0 _V 1.0
* Compliant with SFF-TA-1001 Rev 1.1
* Compliant with PCI_Express_OCuLink_ 1.0
* Compliant with SFF-9402 Rev 1.1

Applications:
* Servers
* HBA (Host Bus Adapter)
* Data Center
* Storage Racks
* Storage Controller
* Servers RAI
Ds (Redundant Array of Independent Disks)
* Routers
* Switchs
