PCIe x4 Gen4 to OCulink 4i kits for GPU-100cm

DP9301 - PCIe x4 Gen 4 with Redriver to OCulink 4i AIC

1.Oculink4i (SFF-8612) to PCIe convert

2.Built- in SFF-8612 connector, pin-out defined by SFF-9402 Rev1.1

3.Built- in PCIe ReDriver to extend PCIe Gen 4, 16GT/s differential pair signals

4.Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable

5.Built- in PCIe 3.3V SMCLK, SMDAT bidirectional buffer repeater

6.Built- in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable

7.Built- in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable

8.Built- in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable

9.Built- in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable

10.D3 Green LED on indicates Host Bus Adapter ready

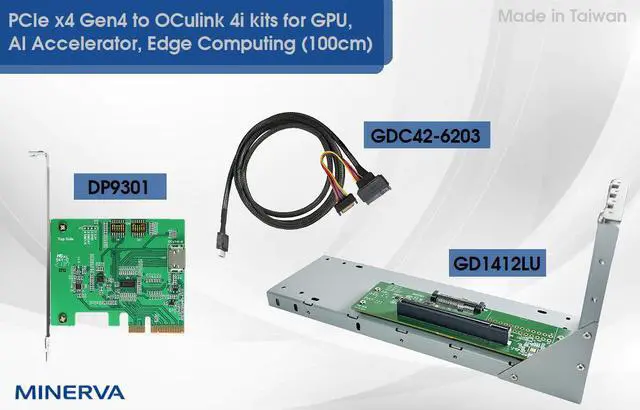

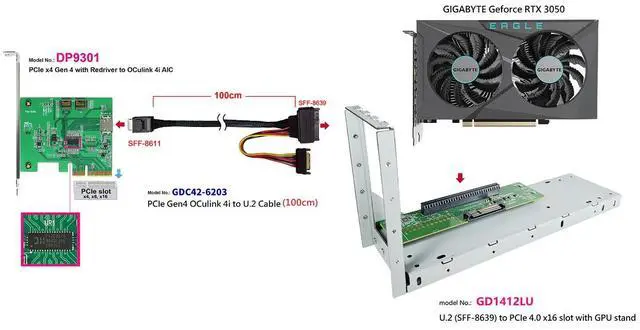

GDC42-6203- PCIe Gen4 OCulink 4i cable 100cm

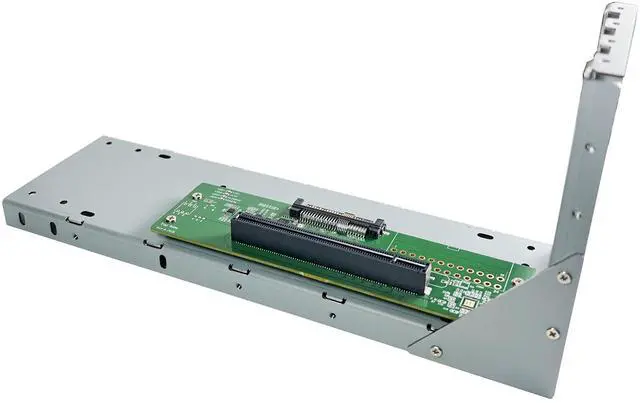

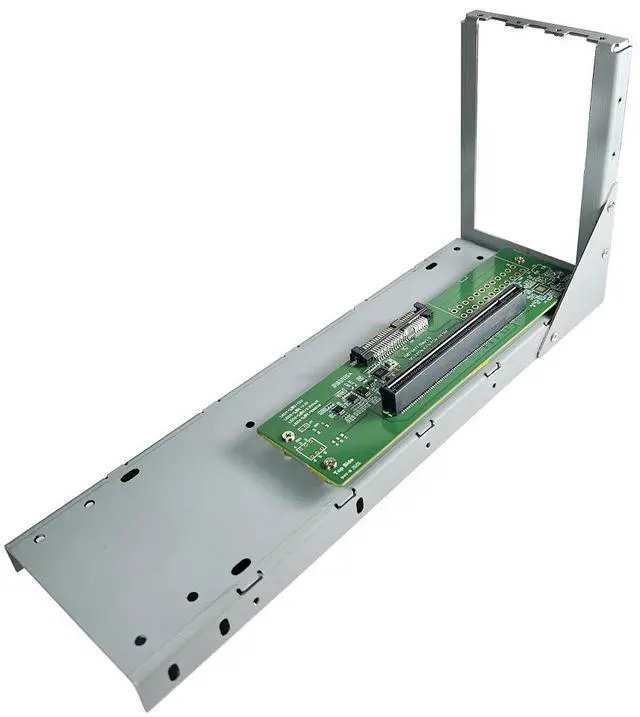

GD1412LU - U.2 (SFF-8639) to PCIe 4.0 x16 slot with GPU stand

1. U.2 PCIe 4.0 to PCIe x16 Slot with 4-lane data link width convert
2. Built-in U.2/ SFF-8639 connector with 30u(0.76um) min Au mating area plating
3. Built-in PCIe 5.0 x16 Slot with 30u(0.76um) min Au mating area plating
4. Built-in Fuse to protect input 12V/ 5A over current
5. Support 12V to 3.3V PWM Power Controller
6. Support 3.3VAUX with Load Switch protection
7. Built-in PCIe PERST# Bus Buffer & Programmable-Delay Supervisory Circuit
8. Built-in PCIe WAKE# Auto-Bidirectional Multi-Voltage Level Translator
9. Built-in PCIe CLKREQ# Auto-Bidirectional Multi-Voltage Level Translator
10. Built-in SMBus Hot Swappable Bus and Buffer
11. LED1 PCIe +12V power ready
12. LED2 PCIe +3.3V power ready
13. LED3 PCIe 3.3Vaux power ready
14. LED4 ON to OFF indicates PCIe PERST# OK
