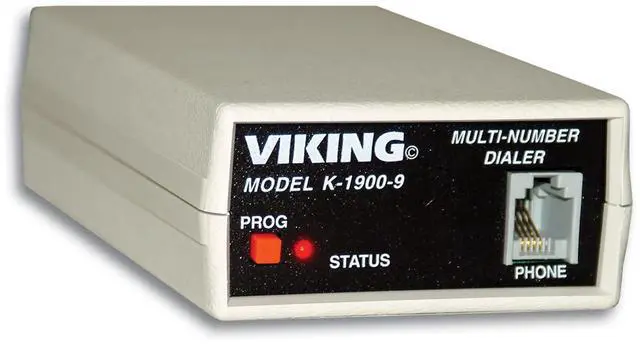

Viking Electronics Multi Number Dialer

AC Powered Dialer with Increased Toll Restriction and Added Versatility The K-1900-9 may be used with any standard Touch Tone phone to provide single number (hot-line) or multi-number speed dialing. The K-1900-9 is capable of storing 100 telephone numbers in non-volatile E2 memory and will operate on any standard loop start C. O. line or analog PABX/KSU station with a standard Touch Tone phone. When programmed as a multi-number dialer, the K-1900-9 will allow the user to enter a 1 or 2 digit Touch Tone code which will trigger the unit to speed dial one of up to 100 different telephone numbers.

When programmed as a single number hot-line dialer, the K-1900-9 will dial a single pre-programmed number when any off-hook condition is detected on the "PHONE" port. The K-1900-9 can also be used as an alarm dialer, initializing speed dialing from a contact closure.
Additional Information: ? Applications ? Turn any standard phone into a dedicated 100 number speed dialing phone ? Security phones ? Interactive point of sale displays ? Kiosks ? Catalog sales ? ATM's ? Hot-Line reservation phones for hotels, airlines, car rentals, etc. ? Alarm dial pagers, etc. ? Features ? Programmable as a single number hot-line dialer or a multi-number dialer ? Stores up to (100) 32-digit phone numbers ? Non-volatile E2 memory (no batteries required) ? Local or remote programmable with a standard Touch Tone phone ? AC power allows installation on nearly any analog line ? Touch Tone dialing with normal or high speed settings ? Increased toll restriction (programmable on/off) ? Ring thru mode allows you to call the phone connected to the dialer ? LED status indicator ? Push button security code override ? Allows 911 dialing ? Single number alarm dialer mode ? Programmable call timer ?
Specifications ? Environmental: 0? C to 32? C (32? F to 90? F) with 5% to 95% non-condensing humidity ?
DTMF Dialing Speed: Normal = 120ms on/off, High Speed = 60ms on/off ?
Connections: (1) RJ11 jack, (1) RJ11 plug ?
Power: 120V AC/ 13.8C AC, 1.25A UL listed adapter provided
