RFID IP68 Waterproof Access Control Keypad Outdoor + 280KG Electric Magnetic Lock+ 10pcs EM4100 Key Tags for Gate Door Lock System

Product

Specifications

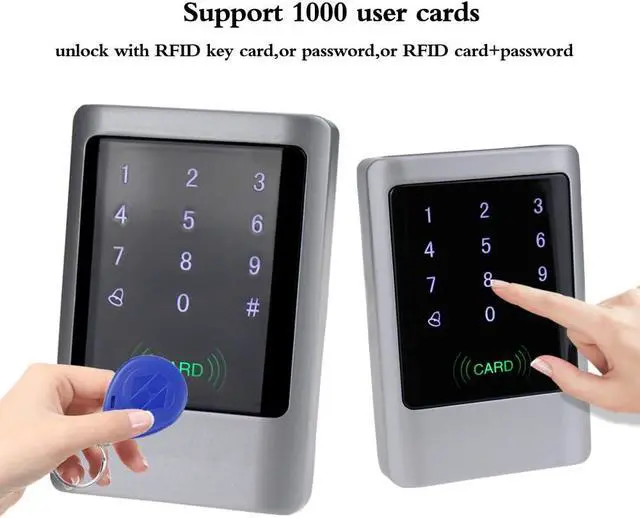

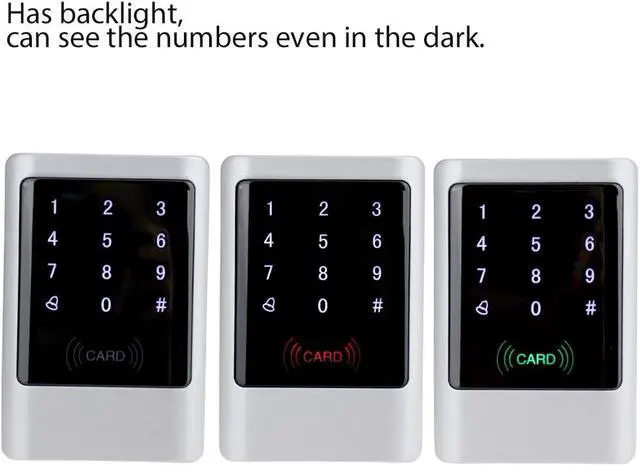

1* RFID Access Controller
Material: aluminium alloy
.

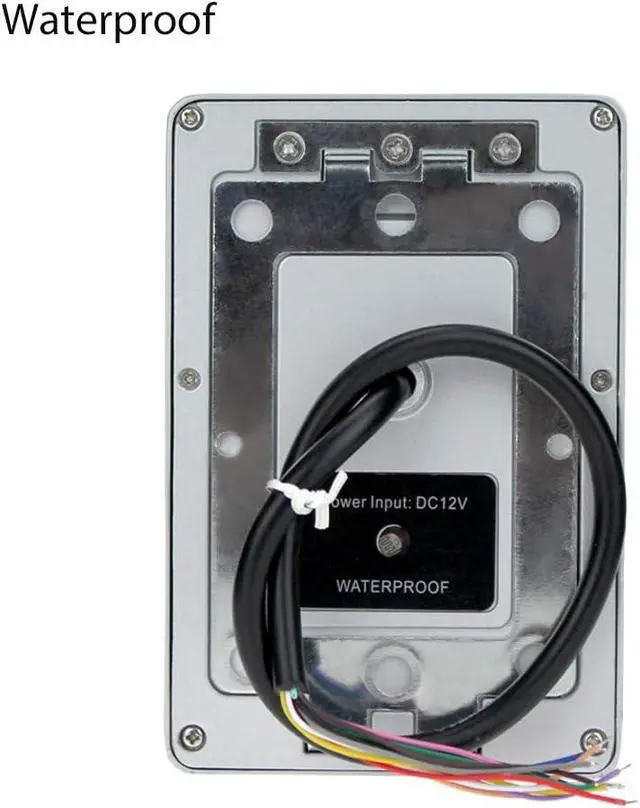

Waterproof Level: IP68
User Capacity: 1000 user
.
Dimension: 120 x 22 x 78mm
.
Working Frequency: 125KHz
.
Working Voltage: DC12V
.
Working Current: Unlock
mode: RFID Card, Password, or RFID card+Password.

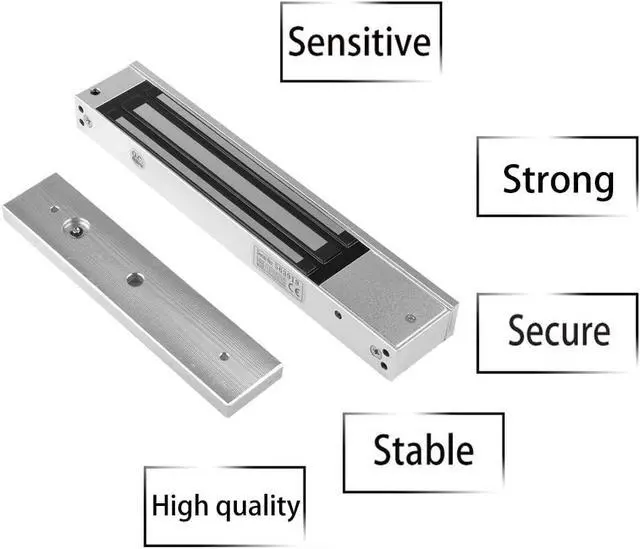

1* 280KG Magnetic Lock
Material: Aluminum alloy shell + iron plate
Holding force: 280KG / 600lbs
Working Voltage: DC12V
Working Current: 380-430mA
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Waterproof: Yes. can be used under the rain
Working mode: fail safe type (power-on to lock, power-off to unlock)
Suitable for wooden, metal, glass door.

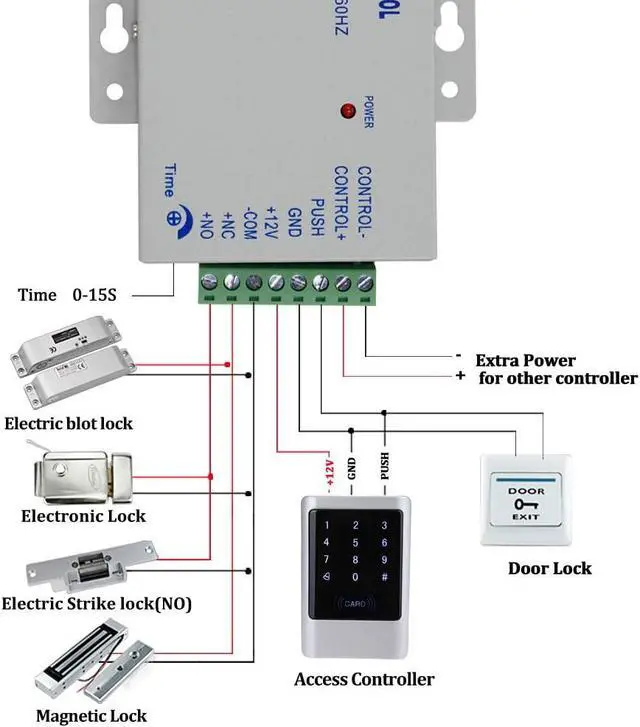

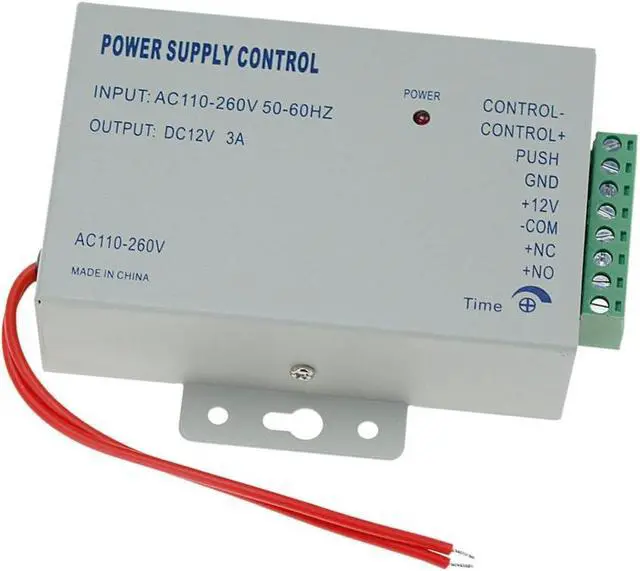

1* Power Supply

1.
Material: stell
2.
AC input: Standard AC100V-260V / 50-60HZ
3.
DC output: DC12V/ 3 A

4.
Time delay: 0-15 seconds adjustable.
5.
Dimension: 140X67X33mm( L/W/H )

1* Door Exit Button
Material: Hard Plastic
Maximum Power Rating: 36V DC 3A5A output
Support both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure Mode)
Dimension: 86X86MM ( L / W )

10* RFID Keyfobs
Material: ABS
Operating frequency: 125kHz
Detection range: 0-10cm
Each card pre programmed and has a unique identity number on it.
Support read only, not writable.
Color: blue.

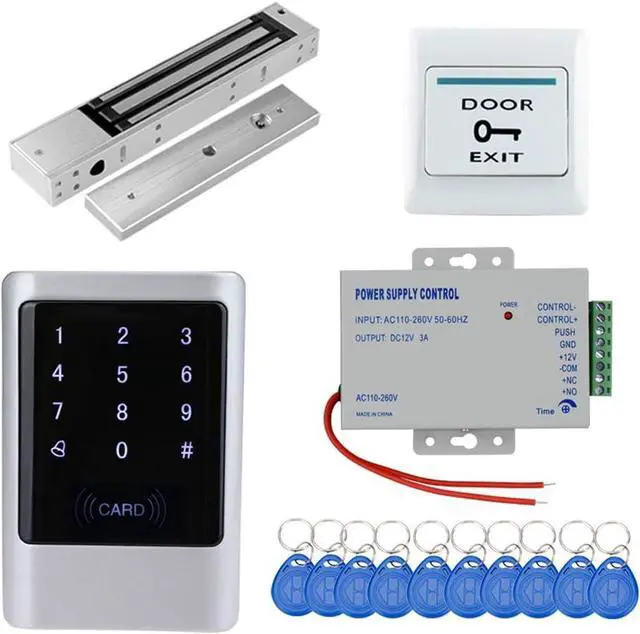

Package Including
1* RFID access controller
1* 280KG magnetic lock
1* Power supply
1* Exit button
10* RFID blue keyfobs
