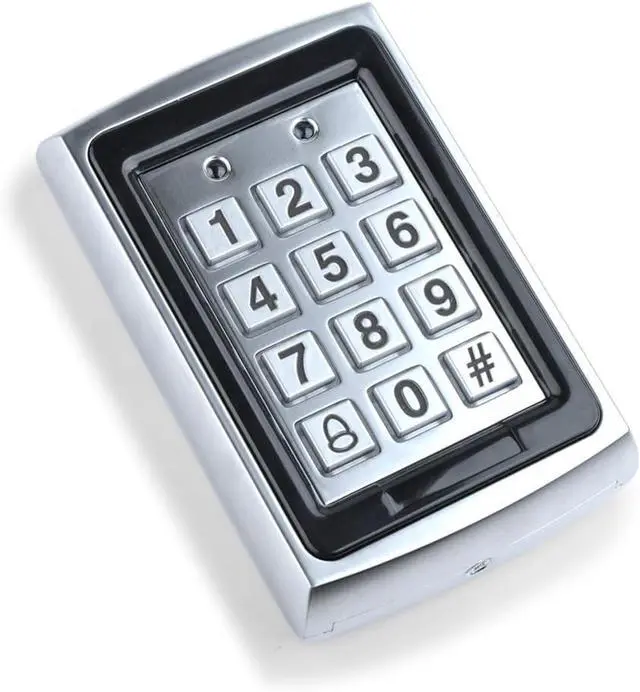

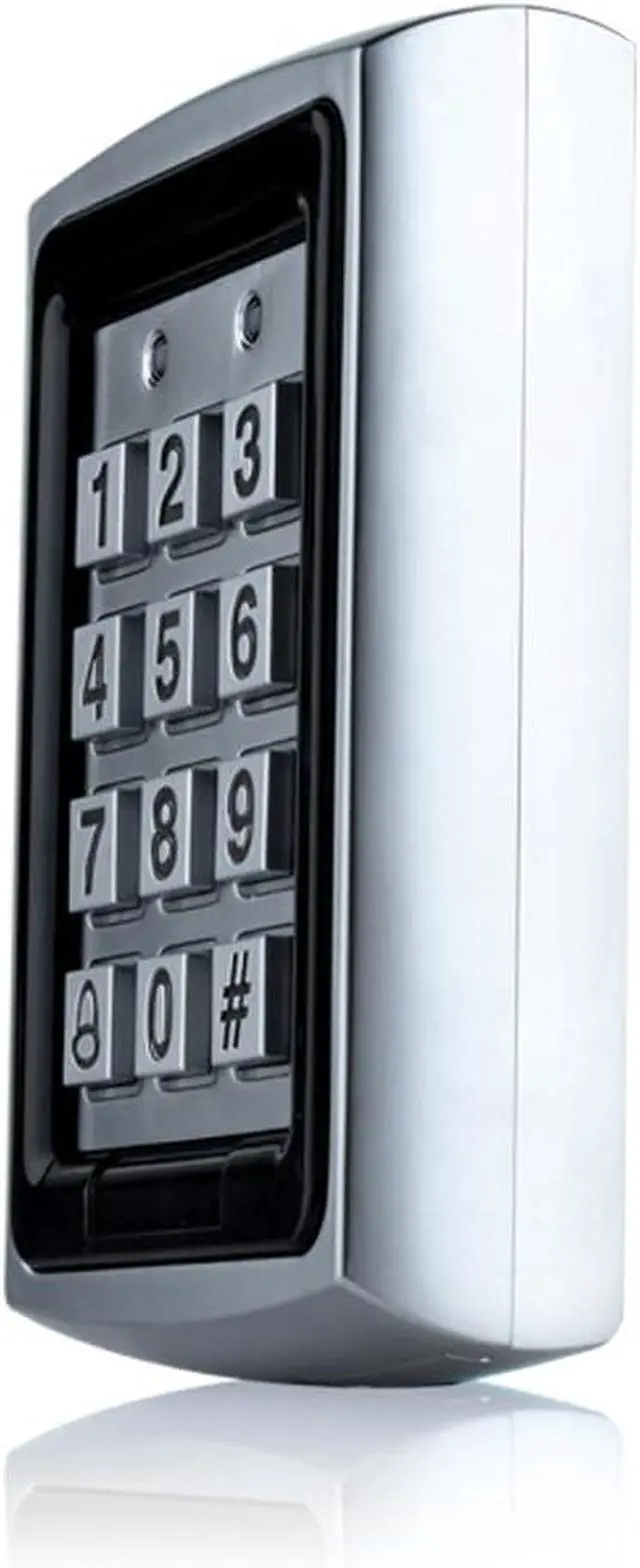

125KHz RFID Metal Access Control Keypad Standalone Access Controller EM Card Reader for Door Lock System WG26 Output

This is an security and effective RFID Standalone Access Controller. Perfect for Homes and Offices. Product FeaturesHigh quality and high security.
Sensitively and response quickly.
1000 standard user capacity.
With door bell button, blue backlight keypad.
With WG26 interface. 2 relays output
With time delay, tamper alarm function
Support card, password, password plus card to open the door
Classical Appearance with useful function.
Professional design for Home and Office.
Support one-door
Can be used as a standalone keypad
Doesn't need to connect on the computer, can works alone
Application: Home/ hotel/ office/ apartment/ factory, etcProduct

Specifications

RFID Access Control Keypad
User Capacity: 1000 user cards
Dimension: 77*120*27mm(L/H/W)
Working Frequency: 125KHz
Working Voltage: DC12V
Working Current: 1.2A
Working Temperature: -10 to +70
Reading Distance: 0-10cm
Relative Humidity: 20%-90%

Wiring Diagram
This Access Control Keypad is don't need to connected to the computer. You just connect it to the DC12V power supply, electric lock, exit button. Then ok.

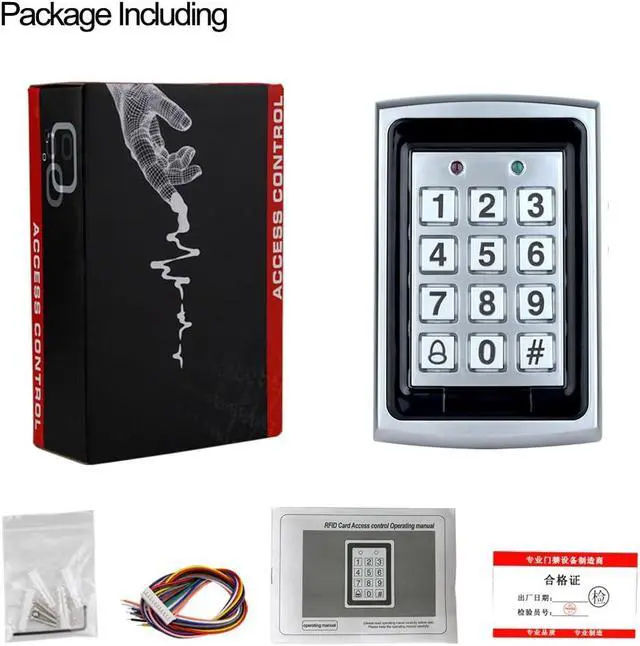

The power supply and electric lock, exit button, door bell is not included in the package, need to buy extra. Thank you!
