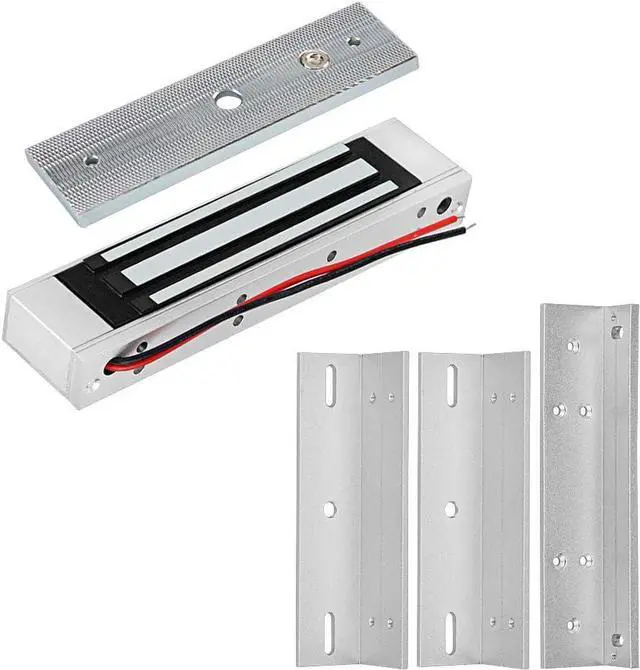

DC12V Electric Magnetic Lock 180KG / 350lbs Electromagnetic Locks Doors + 180KG ZL Bracket Access Control Lock for Home Security System Wooden/Metal/Glass Door

Product Features
1. Made of aluminum alloy shell, high quality, durable for use

2. Fail safe model, Locked when power on, unlocked when power off

3. Especially suitable for wooden/ glass/ metal/ security doors.

4. Working with DC12V power supply system

5. Can be opened by push button, remote controller, etc.

6. Built-in reverse current protection device (MOV).

7. Waterproof, can be install outside. Suitable for singele door
Product Specifications180KG Electric Magnetic Lock
Material: Aluminum alloy shell + iron plate
Holding force: 180KG/350lbs
Working Voltage: DC12V
Working Current: 380-430mA
Humidity: 0 to 95%
Working Temperature: -30 to 55 Celsius degree
Working mode: power on to lock, power off to unlock
Waterproof: Yes. Can be installed outside ZL Bracket
Material Selection: High strength aluminum, sandblast finished
Suitable for Door: Inward door
Opening Mode: 90 degrees door
Use for: Magnetic lock series of 180kg/350Lbs
Finished for Shell: Anodized aluminum

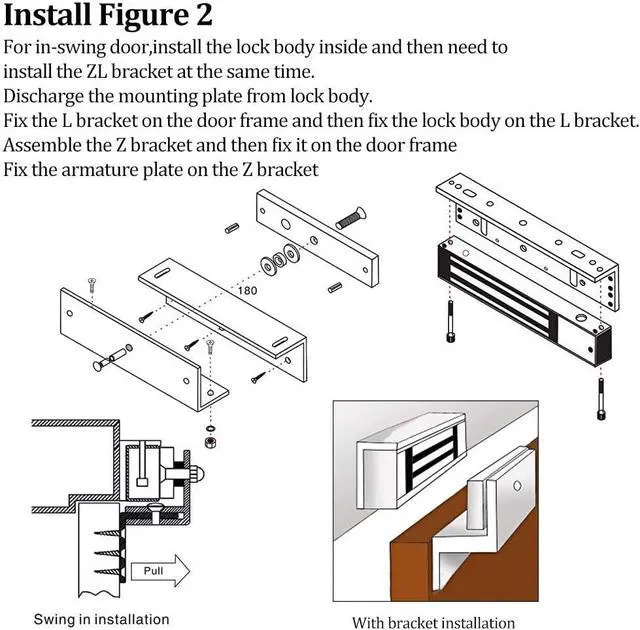

Made of special aluminum, firm and durable Special design, the inward door bracket is suitable for all kinds of the inward door

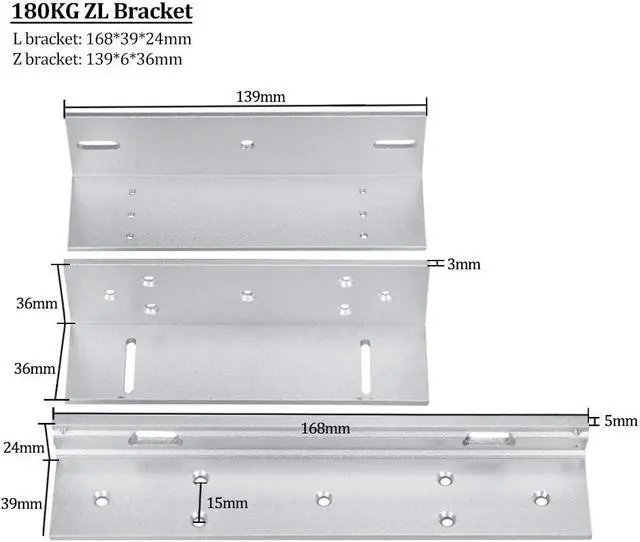

Z bracket: 139*6*36mm
L bracket: 168*39*24mm
Wiring Diagram
Red Wire: +12VDC
Black Wire: -GND
If you want to test the lock, please connect the red cable to "+12v", and black cable to "GND" of the 12VDC power supply.
When you install completed access control system kit set, please connect red cable to "NC", black cable to "COM" of the power supply. Package Including

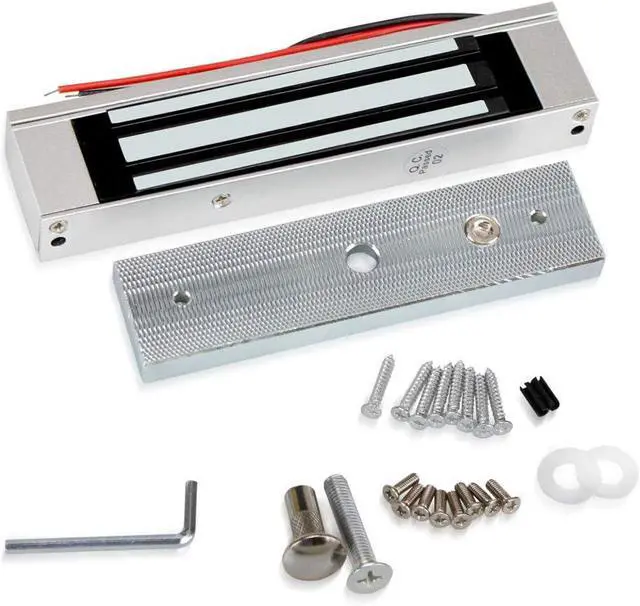

1 x electric 180KG magnetic lock
1x ZL bracket
1 x Package of screws

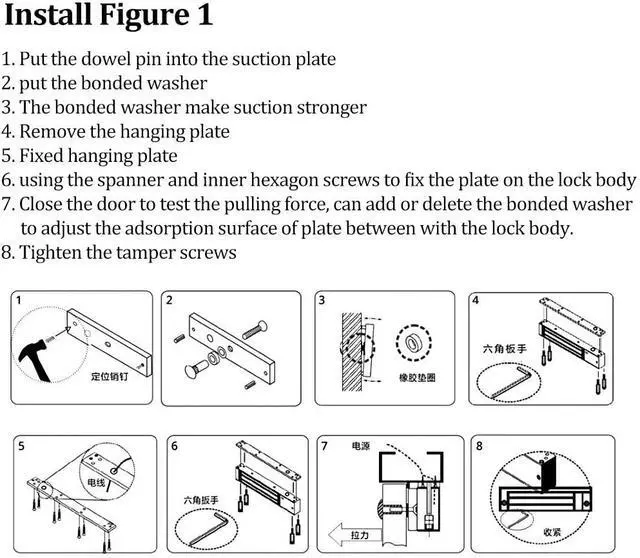

1 x Installation Instructions
