SMTAV 12x Optical Zoom, and 16x Digital Zoom,high-Speed PTZ, HDMI Output,H.265 Support Full HD Video Conference Cameras
- Item #: 9SIVU44M254060
- Mfr. Part #: CLOXB07WRP2GTQ
- Full Function USB Interface: Full function USB interface, compatible with USB3.0 and USB2.0, support audio, compressed video output and UVC v1.1~1.5 protocol.
- 1080P Full HD: Equip with 1/2.8 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolution and ach+A39:A51ieve quality image, The output frame rate can reach 60fps under 1080P.
- Use 72.5° wide-angle high quality lens, support 12x optical zoom, and 16x digital zoom. Support HMDI, USB3.0, network interface can output 1080P video at the same time.
- PoE support: Wired networks support PoE power supply. Control, power supply, video, and audio can be completed by using only one cable.

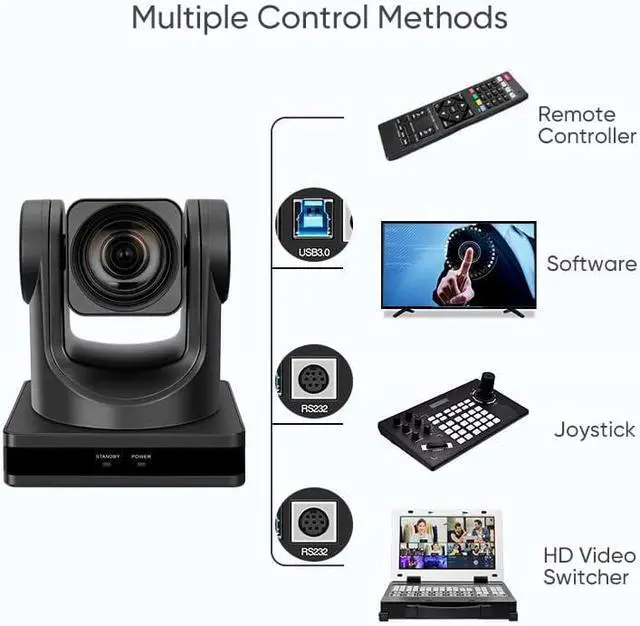

- Remote Control: Multiple control modes, using RS232, RS485, network and USB to control the camera.
- Support USB 5V power supply, 12V power adapter power supply and PoE power supply.
+
+
Overview
Specs
Reviews
Camera
Video System: 1080P601080P501080P301080P25720P60720P50
Sensor: 1/2.8'', CMOS, Effective Pixel: 2.07M
Lens: 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
Minimal Illumination: 0.5Lux @ (F1.8, AGC ON)
Digital Noise Reduction: 2D&3D Digital Noise Reduction
Video S/N: 55dB
Angle of View H: 72.5° ~ 6.9° / V : 44.8° ~ 3.9°

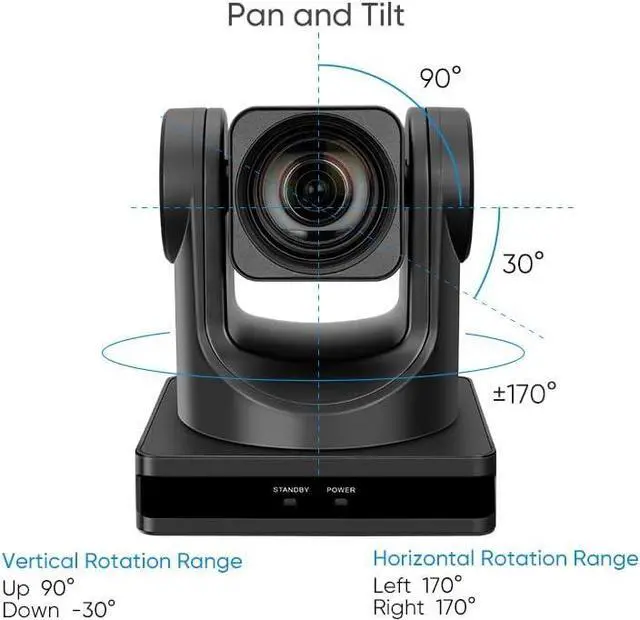

Rotation Range H : ±170° V: -30° ~ +90°
H & V Flip Support
Image Freeze Support
Number of Preset 255
Preset Accuracy 0.1°
USB Featured
Operate System Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
Color System / Compression YUY2 / H.264 / MJPEG
Video Format YUY2 : Max 1080P@60fps
Audio on USB Support
UVC PTZ control: Support
IPC Features
Video Compression H.264/MJEPG
Video Stream Main Stream, Sub Stream
Main Stream Resolution 1920x1080,1280x720,1024x576,960x540,640x480,640x360
Sub Stream Resolution 1280x720,1024x576,720x480,720x408,640x360,320x240320x180
Audio Compression AAC
Support protocols TCP/IP, HTTP, RTSP, RTMP, DHCP, Multicast, etc.

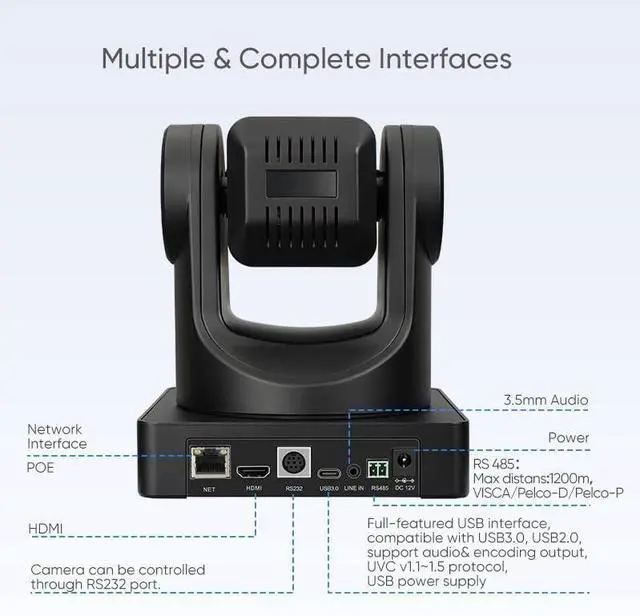

Input/Output Interface
Video Oupputs: USB3.0, HDMI1.4b,10M/100M Ethernet
Audio Interface :3.5mm Audio Interface, Line In
Communication Interface 1xRS232 1xRS485
Protocol: VISCA/Pelco-D/Pelco-P
Power Jack JEITA typeDC IN 12V/USB B typeDC IN 5V/PoE
Generic Specification
Input Voltage DC 12V/DC 5V/PoE(802.3af)
Power Consumption 12Wmax
Size 144mm x 144mm x 167.9mm
