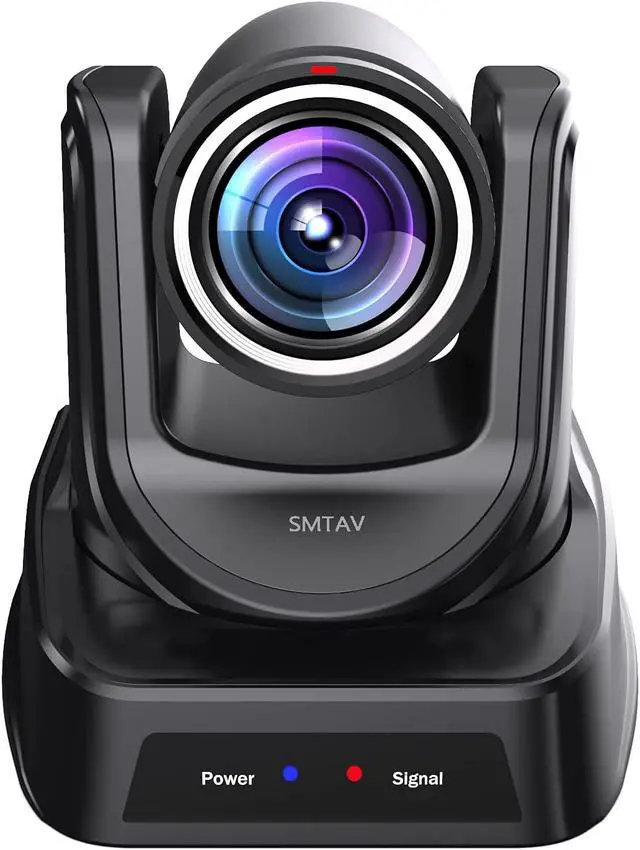

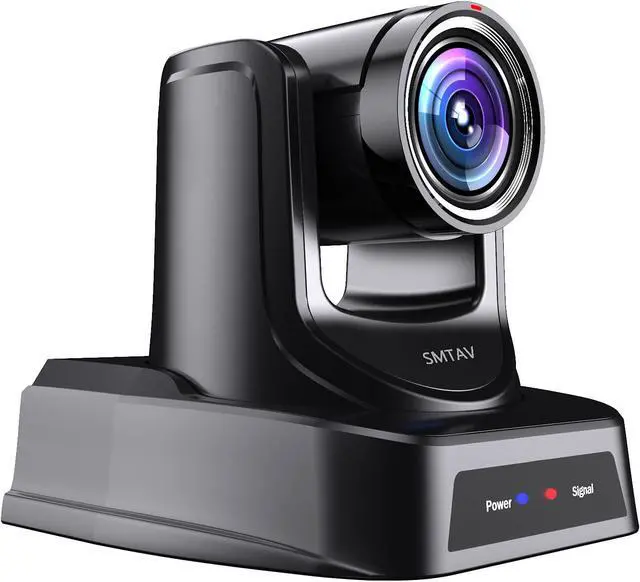

SMTAV PTZ Video Conference Camera - 20X Optical + 16X Digital Zoom, High-Speed PTZ, 3G-SDI + HDMI Output, H.265 Supported (IC 62227)
- Item #: 9SIVU44M254833
- Mfr. Part #: CLOXB085C2D1HR
- Use high quality super telephoto lens, supporting 20x optical zoom, and 16x digital zoom.
- Support H.265 encoding, enabling full HD 1080p/60fps video stream by ultra-low bandwidth, lag-time within 200ms.
- Applying 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor, reach maximum 1920 x 1080 high resolution and achieve quality image.
- Support 3G-SDI interface, effective transmission distance up to 150 meters (1080p30). SDI, Network can output at the same time.
+
+
Overview
Specs
Reviews
Video 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50.
Sensor 1/2.7'', CMOS, Effective Pixel: 2.07M
Scanning Mode Progressive
Lens 20x, f4.42mm ~ 88.5mm, F1.8 ~ F2.8
Digital Zoom 16x
Horizontal Angle of View 60.7° ~ 3.36°
Vertical Angle of View 34.1° ~ 1.89°
Minimal Illumination 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
Ceiling Installation Support
Video Compression H.265/H.264/MJPEG
Video Stream Main Stream, Sub Stream
Main Stream Resolution 1920x1080, 1280x720, 1024x576,960x540,640x480,640x360
Sub Stream Resolution 1280x720, 1024x576(50Hz ),720x480(60Hz ),720x408,640x360, 480x270,320x240
Video Bit Rate 32Kbps ~ 20480Kbps
Bit Rate Type Variable Rate, Fixed Rate
Frame Rate 50Hz: 1fps ~ 25fps, 60Hz: 1fps ~ 30fps
Audio Compression AAC
Audio Bit Rate 96Kbps, 128Kbps, 256Kbps
Support protocols TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc.
HD Output 1x3G-SDI: BNC type, 800mVp-p, 75, Along to SMPTE 424M standard
Network 1xRJ45:10M/100M adaptive Ethernet ports
Audio 1-ch: 3.5mm Audio Interface, Line In ,1-ch: 3.5mm Audio Interface, Line Out
Communication 1xRS485:Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
Power Connector JEITADC IN 12V
Reset Support
Input Voltage DC 12V

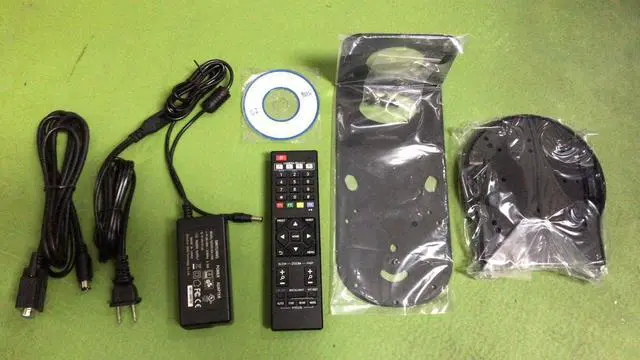

Packing list V60CL*1, remote*1, power adapter*1, US power cable*1, Ceiling mount bracket*1, Wall mount bracket*1, RS232 cable*1, User manual*1
