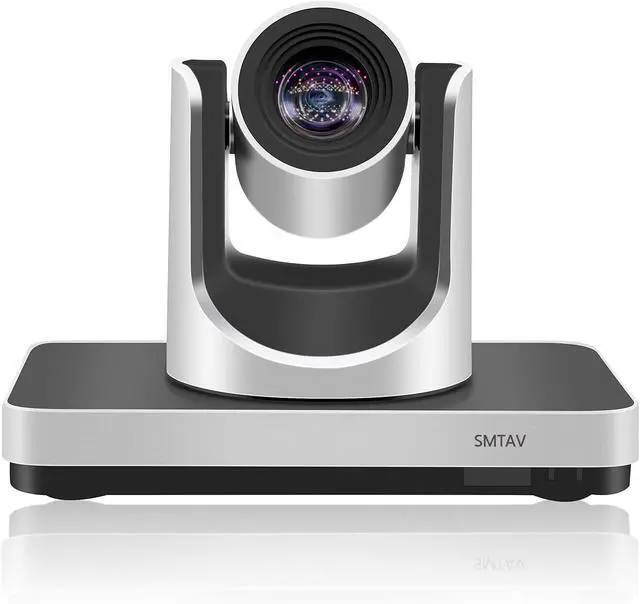

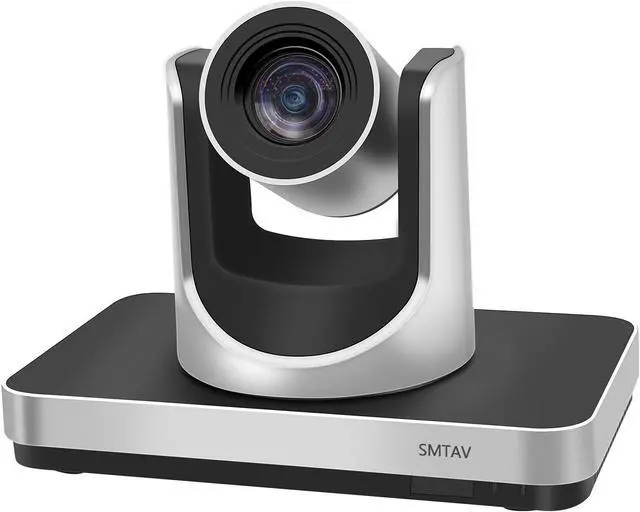

SMTAV 30X SDI Camera, 1080P Full HD, HDMI + 3G-SDI + IP Streaming simultaneously Output, high-Speed PTZ, Professional Video conferencing Camera (SDI, 30X)
- Item #: 9SIVU44M256104
- Mfr. Part #: CLOXB09333TY4J
- 1080P Full with Ultra-high Frame Rate--HD Apply Panasonic's high quality HD CMOS sensors of 1/2.7 inch, 2.07 million effective pixels, so as to reach maximum 1920 x 1080 resolution and achieve quality image.The output frame rate up to 60fps in 1080P.
- Low-light -- High quality CMOS sensor and 2D/3D noise reduction can reduce image noise.The Image is still clear and sharp even in low light enviroment, and the SNR is high more than 55dB.
- Multiple Interfaces-- Support HDMI , 3G-SDI interface, effective transmission distance up to 150 meters (under 1080p30). HDMI, SDI, Network can output at the same time.
- 30x Optical + 8x Digital Zoom-- Use TAMRON high quality super telephoto lens, support 30x optical zoom, and 8x digital zoom.
- H.265 Support-- H.265 ecoding, enabling transmit full HD 1080p video stream by ultra-low bandwidth.
+
+
Overview
Specs
Reviews

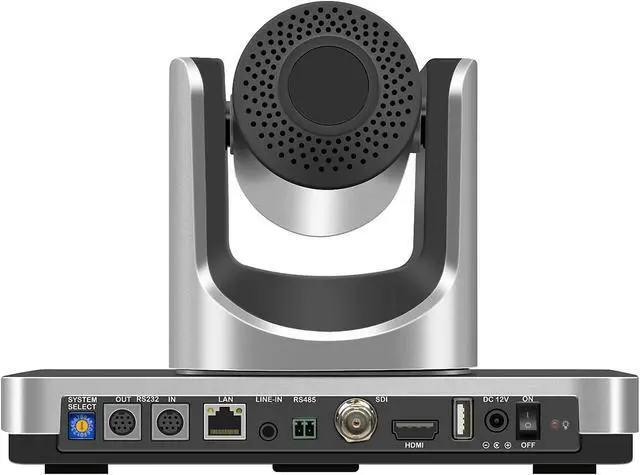

System select dial (resolution: 1080p-60/50/30/25/59.94*/29.97*, 1080i-60/50/59.94*, 720p-60/50/59.94*)
RS232 OUT jack (pass through for daisy chain: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only)
RS232 IN jack (8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P)N
etwork (IP streaming & control) , 10/100/1000 Ethernet port, PoE (802.3af)A
udio LINE IN Interface, 3.5mm audio interface (HDMI & IP)
RS485 jack : 2pin Phoenix port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
HD-SDI (Serial Digital Video Output) : BNC type, 800mVp-p, 75, Along to SMPTE 424M standard
HDMI (Digital Video Output) : Version 1.3
USB 2.0 (*no video out* Future - USB Storage)D
C 12V power jackP
ower switchP
ower Indicator
Simultaneously output max 1080p@60fps video from 3G-SDI, HDMI and IP streaming(MJPEG/H.264/H.265)
Power supplied through the PoE+ (Power over Ethernet) without additional power supply and cables that bring cost-effective and simple installation.
Support H.264/H.265/MJEPG ,Reduce the bandwidth, so that allows human-unnoticeable delays between live image and streaming video.
Standard Onvif/VISCA/Pelco-D/Pelco-P/CGI/HTTP and etc protocols Support.
Easily controlled by IR controller, Network or serial port
SDI cameras can also live stream directly to content delivery networks such as Facebook and YouTube.
Video System 1080p-60/50/30/25/59.94*/29.97*, 1080i-60/50/59.94*, 720p-60/50/59.94* CVBS: 576i, 480i Sensor 1/2.7", CMOS, Effective Pixel: 2.07M Minimal Illumination 0.05 Lux (@F1.8, AGC ON) Horizontal Angle of View 3.36° ~ 60.7° Vertical Angle of View 1.89° ~ 34.1° Horizontal Rotation Range ±170° Vertical Rotation Range -30° ~ +90° Input Voltage DC 12V / PoE (802.3af) Current Consumption 1.0A (Max) Size in. (W x D x H) 9.45 W x 5.67 D x 6.69 H (7.8 H w/ max tilt) Size mm. (W x D x H) 240mm W x 144mm D x 170mm H Image Flip Support Image Mirror Support Local Storage Support (FAT32) Number of Preset 255 Preset Accuracy 0.1° SMTAV New Appearance, 1080P Full HD, HDMI + 3G-SDI + IP Streaming simultaneously Output, high-Speed PTZ, Professional Video conferencing Camera Back of the Camera 3 Simultaneous Video Outputs Support PoE(IEEE802.3af) IP Live Streaming Multiple Protocol Support Compatible With Multiple Softwares Camera Specifications
