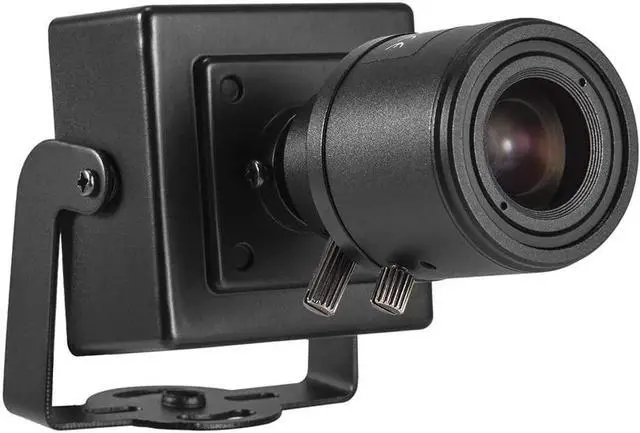

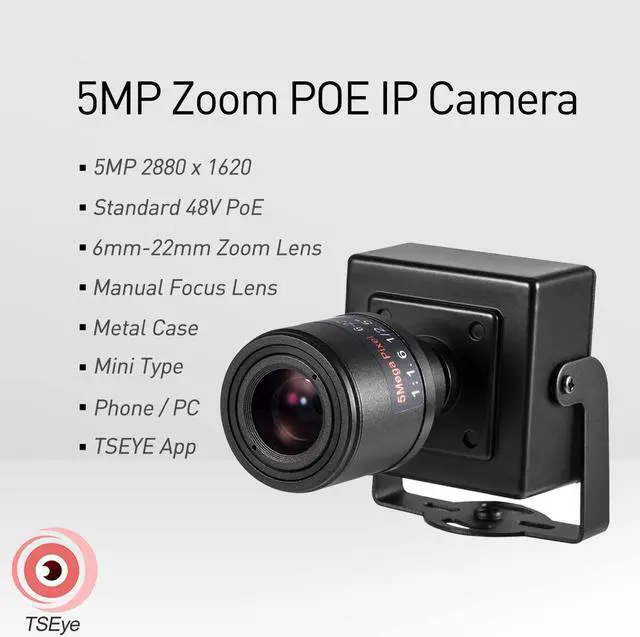

REVODATA 5MP POE IP Mini Camera, 6-22mm Manual Zoom Lens Ultra HD 2880x1620P Small Indoor H.265 Surveillance Camera,PC/Phone App,Motion Detection (I712-2-P)
- Item #: 9SIVRZWKRJ0524
- Mfr. Part #: CB09YH6HH4G
- UlatraHD 5MP QualityCMOS 1/3'' Image Sensor & 5.0 Megapixel (2880 x 1620P) at 20 fps, make a clear and smooth high-quality images/videos with more details.
- Standard 48V POE 802.3af Support POE function(Power Over Ethernet), connect to POE Swtich with only Cat5/6 cable, reduce the trouble of cable arrangement. Also have auxiliary power connector, supports 12V/2A power adapter connection, more flexible.
- 6-22mm Manual Zoom LensThis IP camera have zoom function, lens range from 6mm to 22mm.The lens is bigger, the distance is further. The smaller the lens, the closer you can see, the wider the visual range; the larger the lens, the farther you can see, the narrower the visual range. You can adjust the lens to get the best vision that you want.
- Dual H.265/H.264 Encode Compare with H.264, H.265 transit same quality image only need half of the bandwidth and record same quality image only need half of the storage.
- Service & WarrantyWe have free app "TSEYE" for smartphone
+
+
Overview
Specs
Reviews
Note:
1.This product power from POE, need to connect with a 802.3AF Standard 48V POE Switch.
2.This camera default 5MP & H.265, if your NVR do not support 5MP or H.265, you can change our camera into 1080P (2MP) and H.264.
3.IP camera will create more heat and the case of this camera is small, so after you operate the camera for a while, you will feel the camera is hot. And do not worry, it is normal and safe, hope you can understand.
* High Resolution 5.0 Megapixel 1/3'' CMOS Sensor
* 5MP 2880*1620P resolution
* HD 5MP 6-22mm Zoom Lens
* Support POE, reduce the trouble of cable arrangement.
* Have auxiliary power connector, can use like a Non-POE IP camera.
* Also support H.264 encode, so it can be compatible with both H.264 and H.265 device.
* Support web interface of IE8.0 and above (device embedded Web Server), Edge, Chrome, Firefox, Safari browser.
* Support iPhone, Android smartphone
* P2P Remote Viewing
* Support Motion detection, Email Alarm function
* Metal Material Shell
Camera
Model: I712-2-P-HS
Resolution: 2880 x 1620P 5.0 Mega Pixels camera
Sensor: Sensor: FH8852V200+GC5053
Min illumination: 0.1Lux @(F1.2,AGC ON)
Frame rate: 20fps
Lens: 6-22mm Zoom Lens
O NVIIF compliant Port: 8088
Lens interface type: M12
Compression Format: H.265/H.264
Storage: NVR or Computer
IP address: Static (Default 192.168.1.108) / Dynamic
Smart alarm: Motion detection, Email alarm
Support protocol: HTTP, TCP/IP, RTSP, RTP, UPNP, SMTP, DHCP, DDNS, DNS, FTP, NTP
Ethernet: 10M/100M mbps Ethernet (RJ-45)
General
Operating Temperature: -25°C~60°C
Operating Humidity: 10%~90%
Power Supply: POE
POE Standard: 802.3af
Dimension(cm): 5.6 x 4.6 x 6.3cm
Weight: 0.25kg

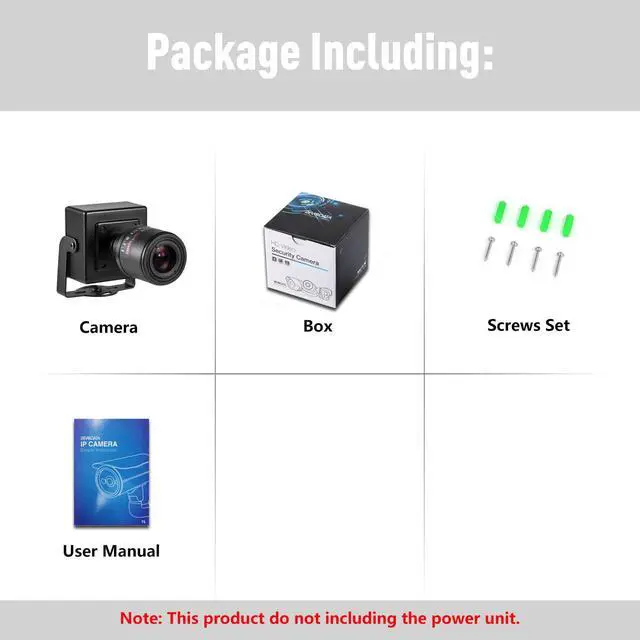

Package contents:
1 x Camera
1 x User Manual
1 x Screws Set
1.This product power from POE, need to connect with a 802.3AF Standard 48V POE Switch.
2.This camera default 5MP & H.265, if your NVR do not support 5MP or H.265, you can change our camera into 1080P (2MP) and H.264.
3.IP camera will create more heat and the case of this camera is small, so after you operate the camera for a while, you will feel the camera is hot. And do not worry, it is normal and safe, hope you can understand.
* High Resolution 5.0 Megapixel 1/3'' CMOS Sensor
* 5MP 2880*1620P resolution
* HD 5MP 6-22mm Zoom Lens
* Support POE, reduce the trouble of cable arrangement.
* Have auxiliary power connector, can use like a Non-POE IP camera.
* Also support H.264 encode, so it can be compatible with both H.264 and H.265 device.
* Support web interface of IE8.0 and above (device embedded Web Server), Edge, Chrome, Firefox, Safari browser.
* Support iPhone, Android smartphone
* P2P Remote Viewing
* Support Motion detection, Email Alarm function
* Metal Material Shell
Camera
Model: I712-2-P-HS
Resolution: 2880 x 1620P 5.0 Mega Pixels camera
Sensor: Sensor: FH8852V200+GC5053
Min illumination: 0.1Lux @(F1.2,AGC ON)
Frame rate: 20fps
Lens: 6-22mm Zoom Lens
O NVIIF compliant Port: 8088
Lens interface type: M12
Compression Format: H.265/H.264
Storage: NVR or Computer
IP address: Static (Default 192.168.1.108) / Dynamic
Smart alarm: Motion detection, Email alarm
Support protocol: HTTP, TCP/IP, RTSP, RTP, UPNP, SMTP, DHCP, DDNS, DNS, FTP, NTP
Ethernet: 10M/100M mbps Ethernet (RJ-45)
General
Operating Temperature: -25°C~60°C
Operating Humidity: 10%~90%
Power Supply: POE
POE Standard: 802.3af
Dimension(cm): 5.6 x 4.6 x 6.3cm
Weight: 0.25kg
Package contents:
1 x Camera
1 x User Manual
1 x Screws Set
