Universal Projector Ceiling Mount - dual-gear - preassembled design - quick release
- Item #: 9SIVB0EJ5N0602
- Mfr. Part #: BEA09Z5C7B3

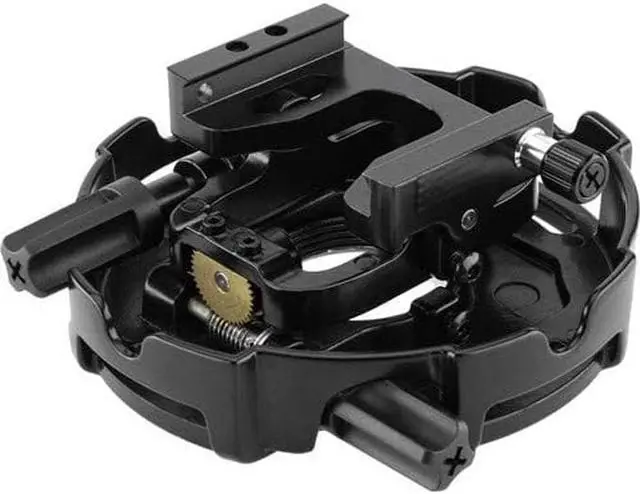

- DUAL-GEAR MECHANISM - The dual-gear mechanism allows you to quickly align your projector with tilt and roll adjustments to achieve your optimal viewing angle. Twist an adjustment knob to align your projector with your screen. Once in position, you can lock your projector in place, ensuring that its alignment won't shift over time
- QUICK RELEASE - The quick release mechanism lets you slide the projector assembly into the mounting plate and lock it down. It also aids in speedy removal of the projector for maintenance while keeping the alignment set
- PREASSEMBLED DESIGN - The mounting plate and projector mount are already assembled, so all you need to do is attach the plate to the ceiling and secure the mount to the projector
- CUSTOM ALIGNMENT - The UPMP-1000 offers up to 360° rotation, ±20° tilt, and ±10° roll adjustments, and the dual-gear mechanism keeps the projector in place without shifting. It is designed to only take a minute to have the projector properly angled towards your screen
+
+
Overview
Specs
Reviews

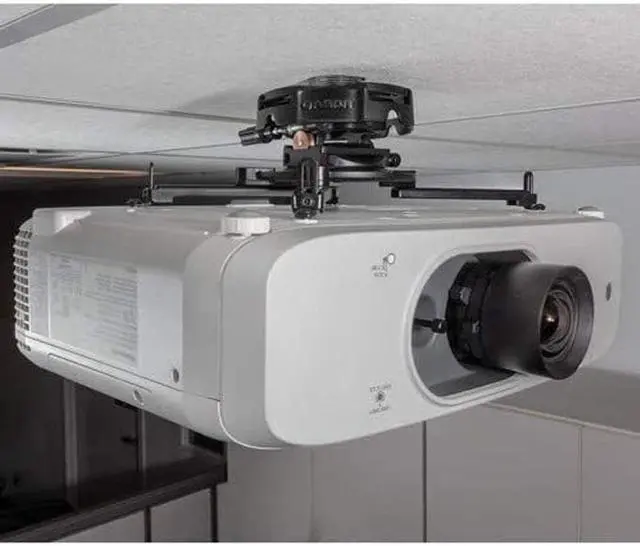

Mount nearly any projector weighing up to 50 lb to the ceiling with the Gabor UPMP-1000 Universal Projector Ceiling Mount. It features a dual-gear mechanism designed to allow you to easily and smoothly adjust the projector's tilt and roll alignment and prevent shifting during installation. The four arms can adjust to accommodate nearly any projector mounting hole pattern and are removable for use with projectors with only three mounting holes. This mount can attach directly to your ceiling or can be connected to a 1.5" NPT extension column for installation in high ceilings or drop ceilings.
The UPMP-1000 provides 360° of rotation, ±20° of tilt, and ±10° of roll adjustment for flexible installations.
Tamper-Resistant Screws
The tamper-resistant screws lock the projector in place and help ensure that it won't be stolen, making the UPMP-1000 well suited for installation in public places.
1.5" NPT Compatibility
The mount is compatible with 1.5" NPT pipes, allowing it to connect to a variety of extension columns for use in drop ceiling installations and various other surfaces.
Gabor UPMP-1000 Specs
Depth from Mounting Source: 3.85" / 9.8 cm
Load Capacity: 50 lb / 22.7 kg
Rotation: 360°
Tilt: ±20°
Roll: ±10°
Mount Compatibility: 1.5" NPT
Construction: Aluminum & Steel
Finish: Powder Coat
Dimensions (W x H x D): 18 x 4.5 x 18" / 45.7 x 11.4 x 45.7 cm
Weight: 3.1 lb / 1.4 kg
Packaging Info
Package Weight: 3.945 lb
Box Dimensions (LxWxH): 14.1 x 6.6 x 2.9"
The UPMP-1000 provides 360° of rotation, ±20° of tilt, and ±10° of roll adjustment for flexible installations.
Tamper-Resistant Screws
The tamper-resistant screws lock the projector in place and help ensure that it won't be stolen, making the UPMP-1000 well suited for installation in public places.
1.5" NPT Compatibility
The mount is compatible with 1.5" NPT pipes, allowing it to connect to a variety of extension columns for use in drop ceiling installations and various other surfaces.
Gabor UPMP-1000 Specs
Depth from Mounting Source: 3.85" / 9.8 cm
Load Capacity: 50 lb / 22.7 kg
Rotation: 360°
Tilt: ±20°
Roll: ±10°
Mount Compatibility: 1.5" NPT
Construction: Aluminum & Steel
Finish: Powder Coat
Dimensions (W x H x D): 18 x 4.5 x 18" / 45.7 x 11.4 x 45.7 cm
Weight: 3.1 lb / 1.4 kg
Packaging Info
Package Weight: 3.945 lb
Box Dimensions (LxWxH): 14.1 x 6.6 x 2.9"
