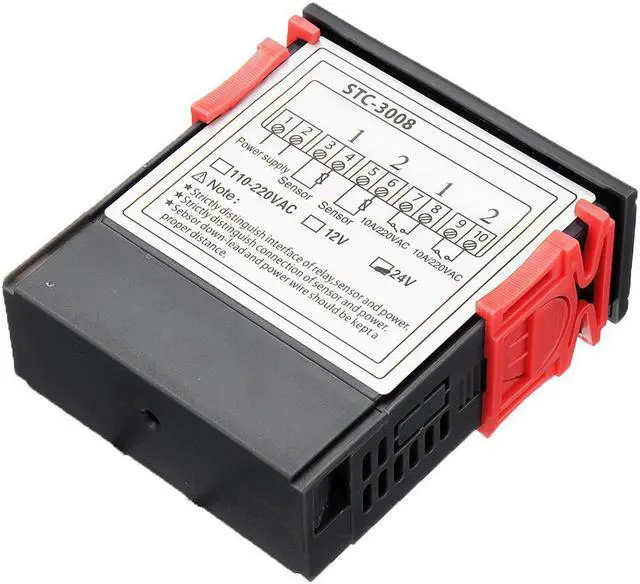

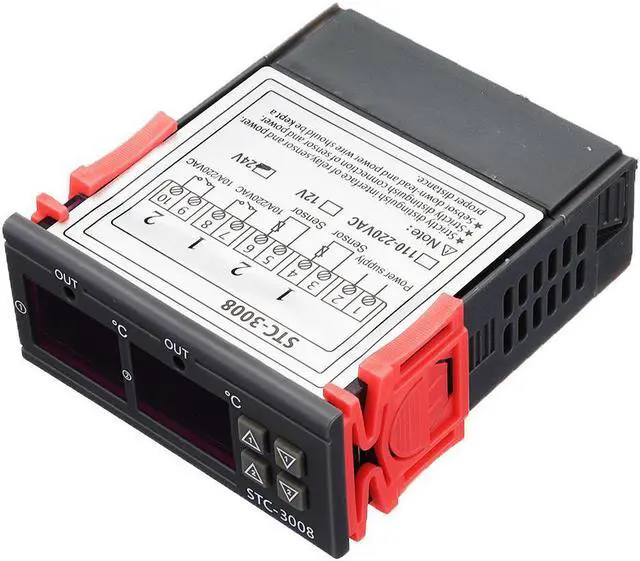

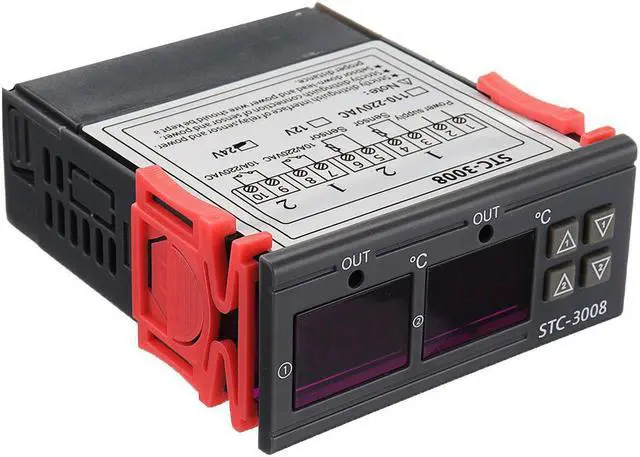

Dual Digital Incubator Thermostat Temperature Controller Two Relay Output Thermoregulator 10A Heating Cooling STC-3008 24V

Features:

1.Automatic conversion of refrigeration and heating mode

2.Control mode of return difference;Temperature display resolution 0.1

3.The temperature controller has the characteristic of high accuracy, high sensitivity, high stability.

4.Support temperature correction and support for power loss (the parameters of the sudden power failure are still valid

5.Application range is like home temperature control, farm, various cold storage, greenhouse, aquarium, etc

Specifications:

Display Type: Digital

Style: Standing Station

Temperature sensor: NTC 10K

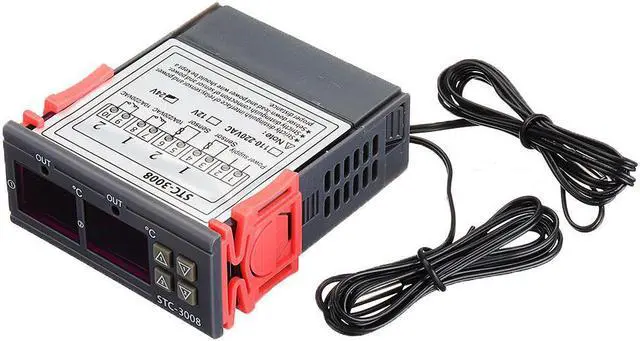

Sensor length: 1.0m

Temperature measuring range: -55 ° C ~ 120 ° C

Resolution: 0.1 ° C

Accuracy: ±1° C

Power supply: 24V DC

Power consumption: <3W

Storage temperature: -30 ° C ~ 75 ° C

Relative humidity: 20% ~ 85% (No condensate)

Relay contact capacity: Two Relay Cool 10A/240VAC; Heat 10A/240VAC

Default

P0

: Delay start

0-60 minutes

0

P1

: Delay start

0-60 minutes

0

P2

High temperature alarm

P3~120°C

120°C

P3

Low temperature alarm

P2~-55°C

-55°C

Long press UP 1 button for 3 seconds, display flashes, press UP or DOWN button to set the start temperature(25°C default)

Long press DOWN 1 button for 3 second, the display flashes, press UP or DOWN button to set the stop temperature (40°C default)

Long press UP 2 button for 3 seconds, display flashes, press UP or DOWN button to set the start temperature(25°C default)

Long press DOWN 2 button for 3 second, the display flashes, press UP or DOWN button to set the stop temperature (40°C default)

Long press DOWN 1 and DOWN 2 button for 3 seconds to reset the controllers.

Heating Mode--Start temperature
