Folding Bracket 12 inch 300mm for Shelves Table Desk Wall Mounted Support Collapsible Long Release Arm Space Saving Carbon Steel 2pcs

Folding Bracket can provide space saving solutions such as caravan, boat, motorhome, RV, apartment and small kitchens. It also provides a great solution for a lack of work surface in garage and workshop, you can create wall mounted folding workbench or fold down work table that can be folded away easily after using by its quick release.

Specifications:

Color: Black

Material: Carbon Steel

Surface Treatment: Baking Finish

Max. Load: Approx. 60kg / 132 lbs per Pair

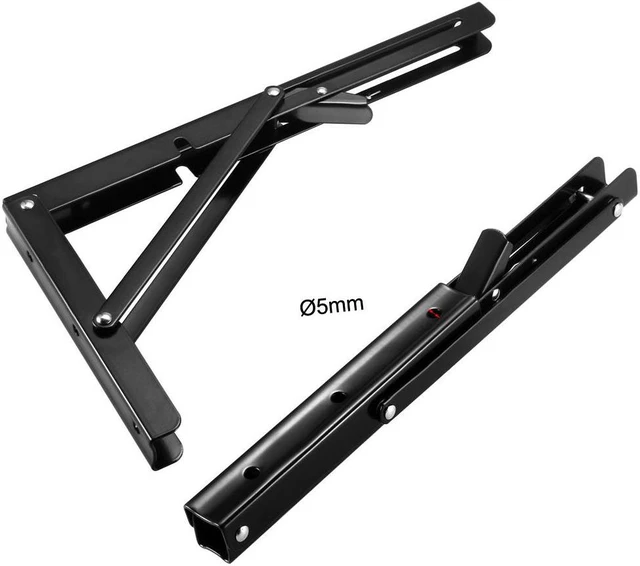

Hole Diameter: 5mm / 6.5mm

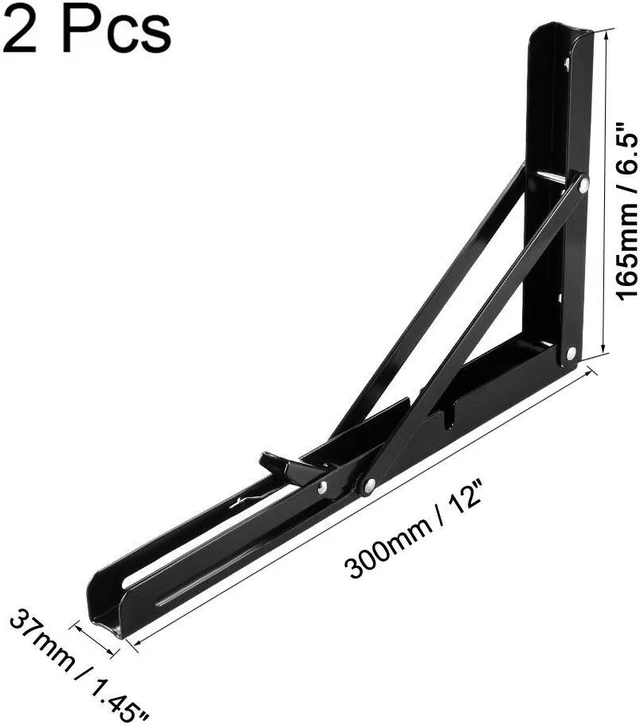

Fold Size: 300x37x40mm / 12x1.45x1.6 inch (L*W*H)

Open Size: 300x37x175mm / 12x1.45x7 inch (L*W*H)

Package Content:

2 x Collapsible Bracket

NOTE:

It is recommended to install in Pairs. If the load is greater than 60kg or the bearing plate is deformed and bent, better to add a fixed bracket in the middle to improve the stability of the installation.

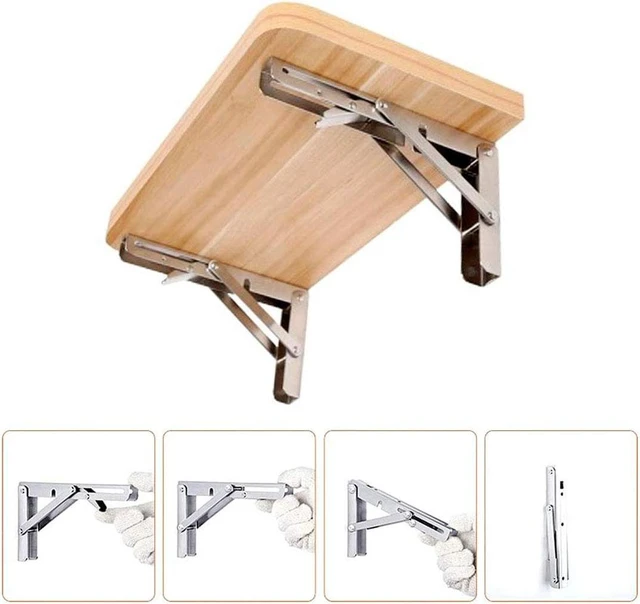

Installation Method:

1. Measure the position size on the board

2. The shelf protrudes 1mm from the board when aligned

3. Mark the position size

4. Fix the triangle bracket on the board

5. Mark the corresponding position on the wall

6. Drilling hole

7. Plugged with nylon expansion tube

8. Fix the triangle bracket with screws
