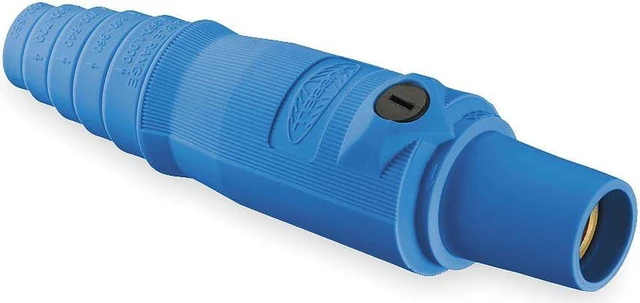

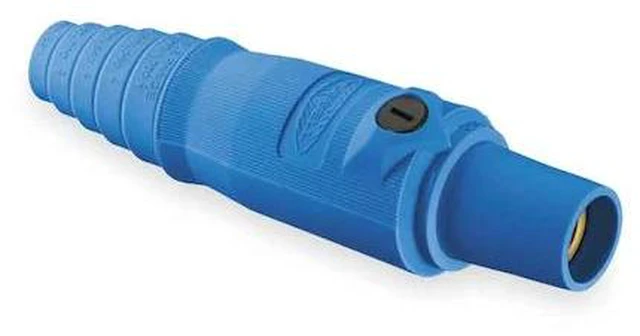

HUBBELL WIRING DEVICE-KELLEMS HBL300FBL Connector,Double Set,Blu,300AC/DC,Female

The HUBBELL Series 16 Double Set Female Connector is a single pole device designed for temporary electrical power distribution. It features a double set screw terminal connection and accommodates cable sizes from 6 AWG to 2/0 AWG. The connector is rated for up to 300A at both AC and DC, with voltage ratings of 600V AC and 250V DC. Its construction includes a brass contact within a thermoplastic elastomer housing.

Key Features of the HUBBELL Series 16 Double Set Female Connector:

• Amperage Rating: Rated for up to 300A (AC/DC)


• Voltage Rating: Rated for operation at up to 600V AC or 250V DC


• Cable Range: Accepts wire sizes from #6 AWG to 2/0 AWG


• Terminal Connection Type: Double set screw terminal connection


• Contact Material: Brass conductor and contact material


• Housing Material: Thermoplastic elastomer housing provides resistance against impact and wear


• NEMA Enclosure Ratings: Meets NEMA Types 3R, 4X, and 12K requirements


• Industry Standards: Complies with NEC, ANSI/NFPA70; UL Listed; cUL Listed standards


• Taper Nose Style: Single cam taper nose configuration compatible with Series16 devices
