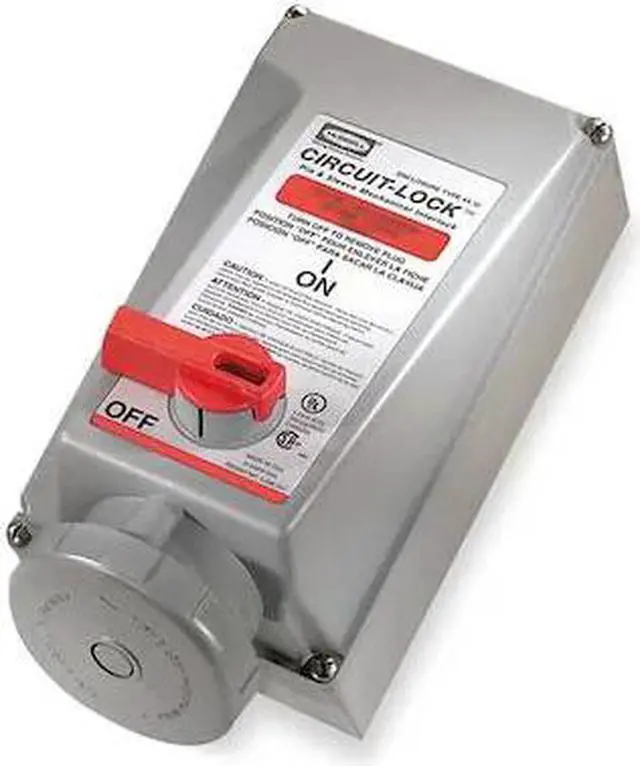

HUBBELL WIRING DEVICE-KELLEMS HBL460MI7W WT Mch Intrlk Dvc,3P4W,60 A,480V

The HUBBELL Receptacle Interlock is a rated for high ampacity electrical connections; suitable for specified indoor and outdoor use mechanical interlock designed for high ampacity electrical connections in demanding indoor and outdoor environments. This unfused, pin and sleeve device integrates a disconnect switch with the receptacle, includes a disconnect switch with the receptacle, compatible with lockout/tagout procedures supporting lockout/tagout procedures. It is rated for 60 A, 480V AC three-phase service, accepts compatible plug number 5Z917, and features a non-metallic thermoplastic housing; see specifications for environmental ratings suitable for harsh conditions.

Key Features of the HUBBELL Watertight Mechanical Interlock:

• Amperage/Voltage Rating: Rated for 60 A at 480V AC (three-phase), can be used with motor loads up to 30 hp as specified by manufacturer ratings


• Connection Type: Pin and sleeve configuration with pressure terminal screws; accommodates #8 AWG to #2 AWG wire sizes


• Watertight Construction: IP67 ingress protection; NEMA Type 4X and Type 12 enclosure ratings provided


• Housing Material: non-metallic thermoplastic housing; see specifications for environmental ratings


• Locking Handle: Lockable handle is compatible with OSHA lockout/tagout practices


• Circuit Interrupting Performance: Certified for current interrupting at full rated current/voltage; dielectric strength withstands up to 3000V AC


• Mounting Hardware Included: Screw mounting hardware provided


• Standards Compliance: UL Listed product meeting applicable industry standards
