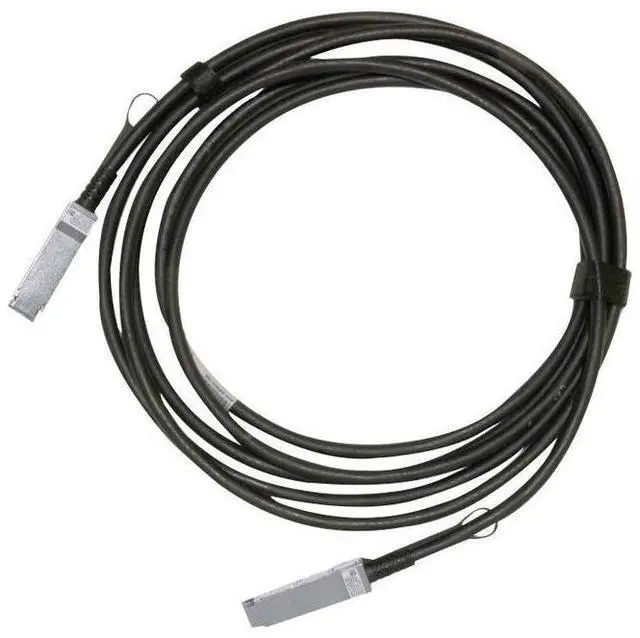

Passive Copper Cable, ETH 100GbE, 100Gb/s, QSFP28,According to inventory, send 1m/1.5m/2.m, Black, 30AWG, CA-N

®MCP1600-C0xxEyyz direct attach copper (DAC) cables are high speed, cost-effective
alternatives to fiber optics in 100Gb/s Ethernet applications.

QSFP28 passive copper cable contains four high-speed copper pairs, each operating at data rates
of up to 25GbE. Each QSFP28 connector includes an EEPROM providing product information which can be
read by the host system.

unique quality, passive, copper cable solutions provide power-efficient connectivity for short
distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and
reduced power requirement in the data centers.

MCP1600-C0xxEyyz cables up to 2m support IEEE 802.3 bj CA-25G-N (Cable Assembly No-FEC) with low
latency. Cables from 3m to 5m support IEEE 802.3 bj CA-25G-L (Cable Assembly Long) with RS-FEC enabled (1). For 2.5 m and 3m cables there are two versions supporting
either CA-25G-N or CA-25G-L.
