RHEEM-RUUD GN100-200 Natural Gas Commercial Gas Water Heater, 100 gal, 120V AC,

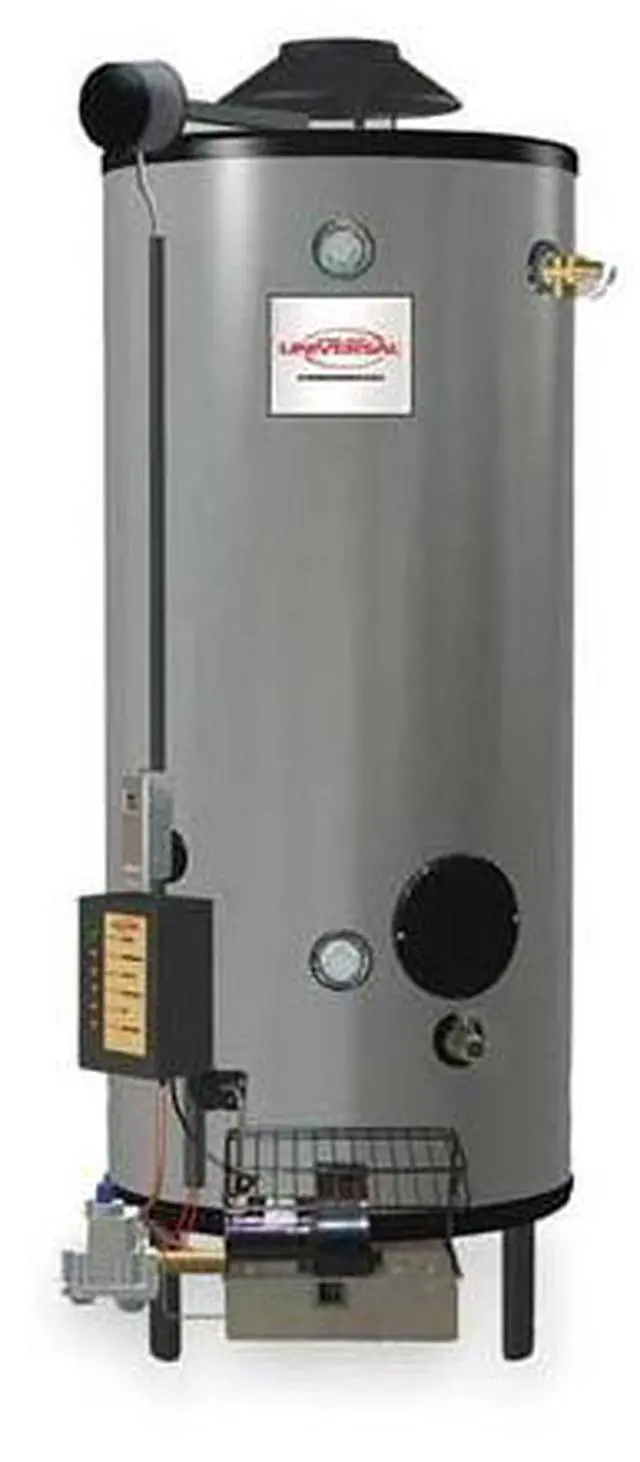

The RHEEM-RUUD GN100-200 is a commercial natural gas water heater with a 100 gal tank and 199,900 BtuH input. It is built for commercial hot water service where larger storage capacity and higher recovery are needed, with a first hour rating of 264 gal and first hour recovery of 264 gph. This unit operates on 120V AC and uses direct spark to pilot ignition, with a standard vent design and side water connections.

Key Features of the RHEEM-RUUD GN100-200 Commercial Gas Water Heater:

• Tank Capacity: 100 gal storage capacity for commercial hot water demand.
• Fuel Type: Natural gas-fired with 199,900 BtuH input.
• First Hour Rating: 264 gal indicates the amount of hot water available during the first hour of operation.
• Recovery Performance: 264 gph first hour recovery; recovery rates include 388 gph at 50°F rise and 138 gph at 140°F rise.
• Thermal Efficiency: 80% thermal efficiency.
• Temperature Range: Delivers water from 100°F up to 180°F.
• Ignition and Diagnostics: Direct spark to pilot ignition and an LED diagnostic system for operating status information.
• Connections: 3/4 in gas connection, 1-1/2 in top hot outlet, and 2 in side water connection.
• Construction and Venting: 30-1/4 in tank diameter, 73-1/16 in overall height, and 6 in draft hood/vent connection size.
• Included Components: Full port/full flow brass drain valve and temperature and pressure relief valve.
• Other Attributes: Low NOx burner, maximum working pressure of 150 psi, and maximum altitude rating of 8,000 ft.
