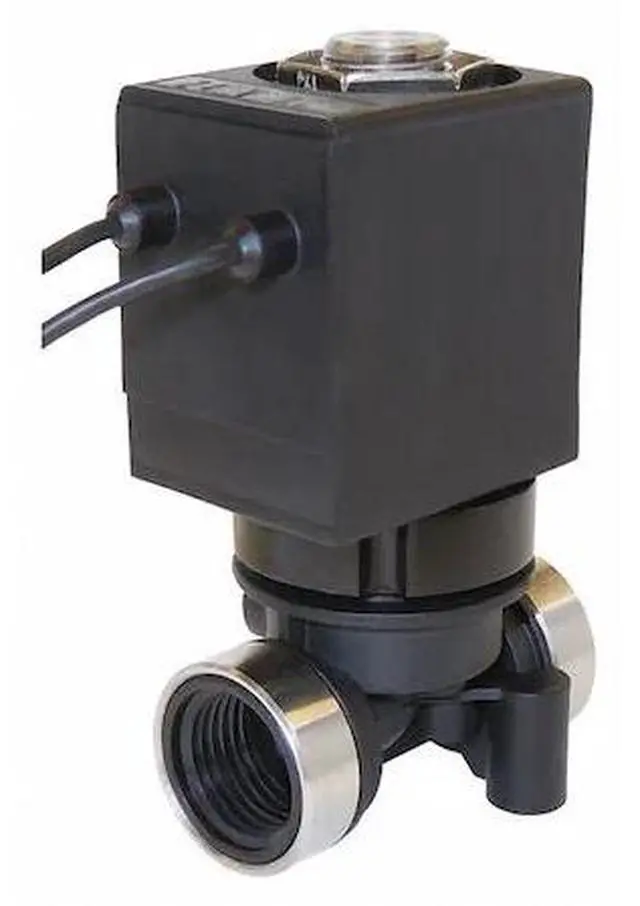

SPARTAN SCIENTIFIC 6200-B60-AAB6B Solenoid Valve, 2-Way, 2-Position, Normally

The SPARTAN SCIENTIFIC 6200-B60-AAB6B is a 2-way, 2-position direct acting solenoid valve; suitable for pneumatic or hydraulic systems requiring automated flow control. It features a normally closed poppet valve with a glass filled nylon body and Buna N seals, controls the flow of air, caustics, inert gases, light oil, and water within the specified operating conditions (Cv 0.52; 24V AC, 60 Hz; temperature and pressure ratings). This electrically actuated valve operates on 24V AC at 60 Hz; enclosure is watertight and dust-tight; insulation class F. Its valve design supports a maximum ambient temperature of 122°F and handles a maximum fluid temperature of 140°F. The valve includes coil and seals; suitable for installation in pneumatic or hydraulic systems requiring automated flow control.

Key Features:

• - Valve Type & Configuration: 2-Way, 2-Position, Normally Closed, Poppet design
• - Body Material: Glass filled nylon
• - Seal Material: Buna N
• - Operating Voltage: 24V AC, 60 Hz frequency
• - Coil: Included; enclosure is watertight and dust-tight; insulation class F
• - Connections: NPT inlet and outlet with 1/4 in nominal pipe size
• - Maximum Operating Pressure Differential: 75 psi for air/inert gas, light oil, and water
• - Flow Coefficient (Cv): 0.52
• - Temperature Ratings: Maximum ambient 122°F, minimum ambient 50°F, maximum fluid 140°F
• - Environmental Rating: Outdoor use
• - Dimensions: Overall height 3-7/32 in, length 1-13/16 in, width 1-15/32 in
• - Orifice Diameter: 5/32 in
• - Standards: CE certified
• - NEMA Rating: 4
• - Electrical Connections: Wire leads
