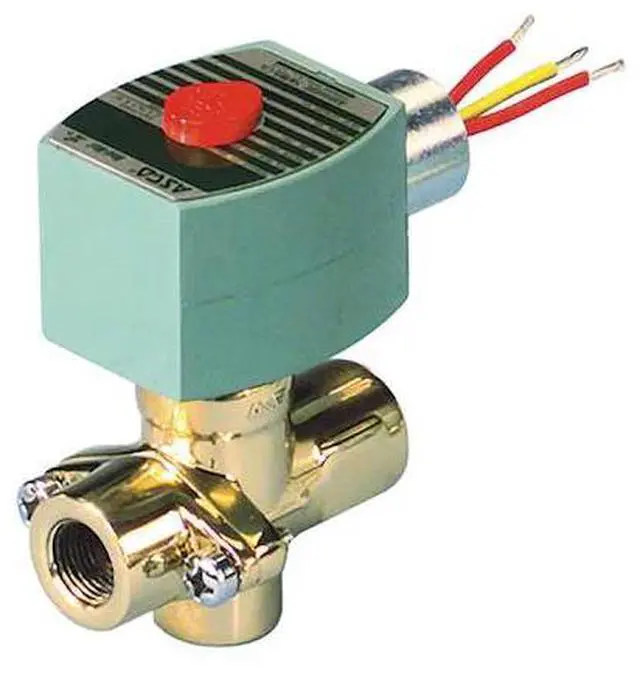

REDHAT 8267G011 Solenoid Valve, 2-Way, 2-Position, Normally Open, 3/8 in Pipe

The ASCO 8267G011 is a 2-way, 2-position solenoid valve with a normally open starting configuration. It controls the flow of steam by using an energized coil to actuate a plunger that opens or closes the flow path. The valve features a brass body and PTFE seals, rated for steam up to 280°F and differential pressure up to 30 psi. Environmental rating: Indoor, Outdoor; includes coil and seals.

Key Features:

• - Valve Design: 2-Way/2-Position, Normally Open
• - Body Material: Brass
• - Seal Material: PTFE
• - Maximum Fluid Temperature: 280°F
• - Maximum Differential Pressure: 30 psi
• - Coil Included: Yes
• - Coil Insulation Class: H
• - Coil Enclosure: Without Junction Box, Watertight
• - Electrical Connections: 1/2 in Conduit with 18 in Leads
• - Voltage: 120V AC
• - Wattage: 16.1 W
• - Environmental rating: Indoor, Outdoor
• - Ambient Temperature Maximum: 125°F
• - Nominal Pipe Size: 3/8 in
• - Orifice Diameter: 3/8 in
• - Center Line Pipe Center Size: 3-21/64 in
• - Overall Dimensions: Length 3-7/16 in, Height 4-5/16 in, Width 2-1/16 in
• - Coefficient of Volume (Cv): 5.1
• - Standards: UL Listed
