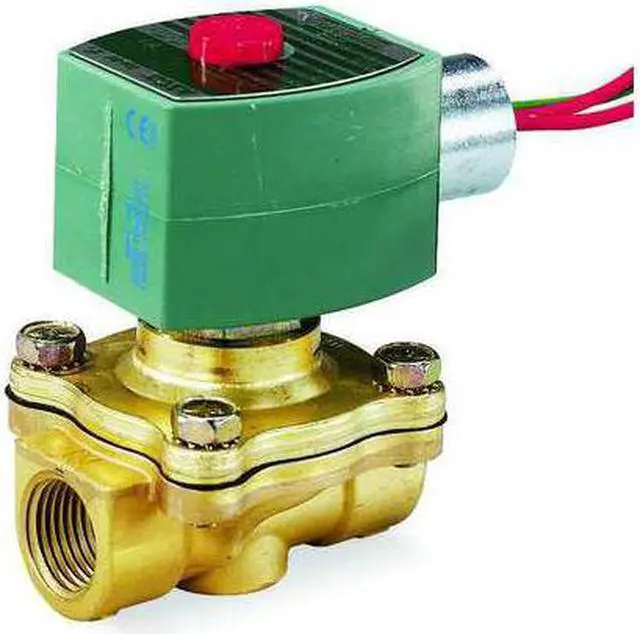

REDHAT 8210G095VH Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in

The ASCO 8210G095VH is a 2-way, 2-position pilot-operated solenoid valve with a normally closed starting configuration. Media compatibility: Air, Inert Gas, Water. Body material: Brass; Includes coil and seals. Operating ambient temperature range: 14°F to 140°F. Fluid temperature rating: up to 180°F. Mounting orientation: Vertical. Environmental rating: IP66 (dust and water ingress protection).

Key Features:

• - Valve Design: 2-Way/2-Position, pilot operated
• - Starting Configuration: Normally Closed
• - Media Compatibility: Air, Inert Gas, Water
• - Differential pressure range: 0 to 150 psi for air, inert gas, and water
• - Orifice Diameter: 3/4 in
• - Nominal Pipe Size: 3/4 in with NPTF inlet and outlet connections
• - Body material: Brass; Includes coil and seals
• - Response Time: 1 second
• - Coil Insulation Class: F with wattage rating of 10.1 W
• - Electrical Connections: 1/2 in Conduit Hub
• - Mounting orientation: Vertical
• - Environmental Rating: IP66 (dust and water ingress protection)
• - Dimensions: Overall Height 4-1/8 in; Overall Length 3 in; Overall Width 2-5/16 in
• - Valve Type: High Vacuum
