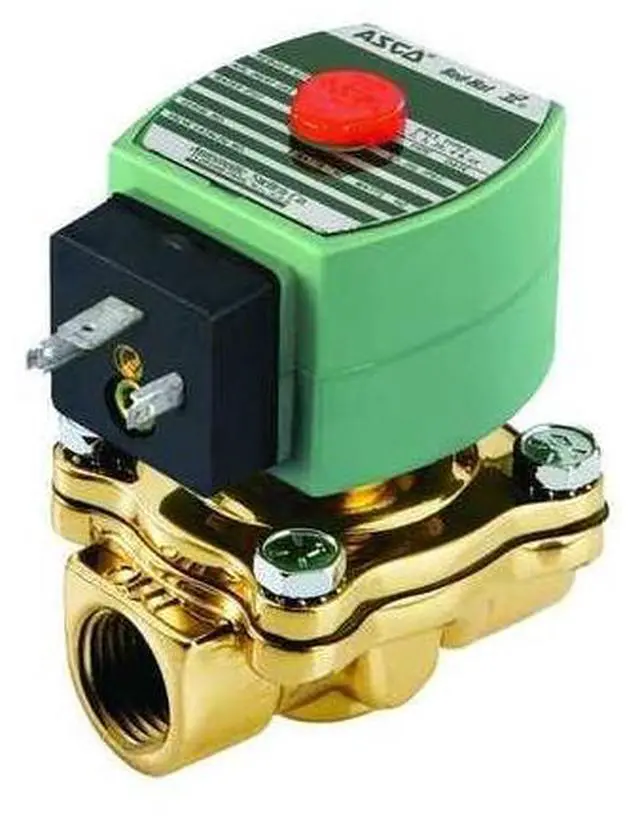

REDHAT SC8210G035 Solenoid Valve, 2-Way, 2-Position, Normally Open, 3/4 in Pipe

The ASCO SC8210G035 is a pilot-operated, 2-way/2-position solenoid valve designed for control of commercial and industrial gas burners. Constructed with a brass body and NBR seal material, this normally open valve controls fuel oil and gas flow via coil actuation. It includes the coil and seal, and is rated for indoor and outdoor use with an ambient temperature range from 32°F to 125°F. The valve operates at 110/120V AC with a coil wattage of 10.1 W; actuation time: 1 second, via 1/2 in conduit hub.

Key Features:

• - Valve Design: 2-Way/2-Position, Normally Open configuration
• - Valve Type: High Flow
• - Media Compatibility: Fuel Oil, Gas
• - Maximum Fluid Temperature: 180°F
• - Operating Pressure Differential: 0 to 150 psi (Air/Inert Gas and Water), 0 to 125 psi (Light Oil)
• - Orifice Diameter: 3/4 in
• - Nominal Pipe Size: 3/4 in, with 4 in centerline pipe spacing
• - Connections: NPTF inlet and outlet with NPT thread type
• - Coil: Included, Class F insulation, without junction box; electrical connection via 1/2 in conduit hub
• - Operating environment: indoor or outdoor use
• - Mounting Orientation: Vertical installation recommended
• - Dimensions: 4-5/16 in length, 2-5/16 in width, 4-21/32 in height
• - Standards: CSA and UL certified
