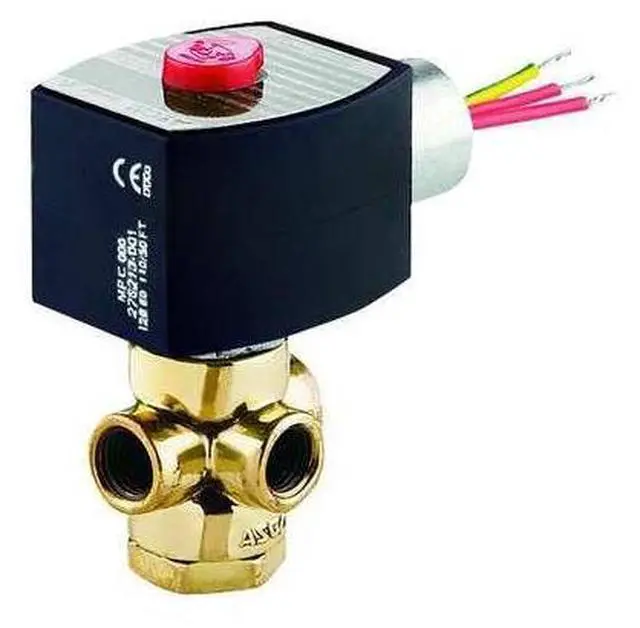

REDHAT 8320G089 Solenoid Valve, 3-Way, 2-Position, Normally Closed, 1/4 in Pipe

The ASCO 8320G089 is a direct-acting, 3-way/2-position solenoid valve with a normally closed starting configuration. The valve body is made of brass and it includes the coil and sealing components necessary for operation. The valve supports horizontal or vertical mounting and features BSPP threaded inlet and outlet connections.

Key Features:

• - Valve Design: 3-Way/2-Position with Normally Closed configuration
• - Operation Type: Direct Acting
• - Media Compatibility: Air, Inert Gases, Light Oil, Water
• - Maximum Fluid Temperature: 200°F
• - Operating Pressure Differential: 0 to 110 psi for Air/Inert Gas, Light Oil, and Water
• - Coefficient of Volume (Cv): 0.12
• - Orifice Diameter: 3/32 in
• - Body Material: Brass
• - Seal Material: NBR (Buna-N)
• - Electrical: 120V AC at 50/60 Hz, 9.1 W wattage, with 1/2 in conduit and 18 in leads
• - Coil Enclosure: IP66-rated watertight; no external junction box required
• - Environmental Rating: Indoor and Outdoor use
• - IP Rating: 66
• - NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X
• - Dimensions: Length 1-11/16 in, Width 1-7/16 in, Height 3-3/4 in
• - Mounting Orientation: Horizontal or Vertical
• - Includes: Coil and seal components
• - Thread Type: BSPP for inlet and outlet connections
• - Valve Type: Direct Mount
• - Pipe Size: 1/4 in nominal, with 1-3/4 in centerline pipe center size
