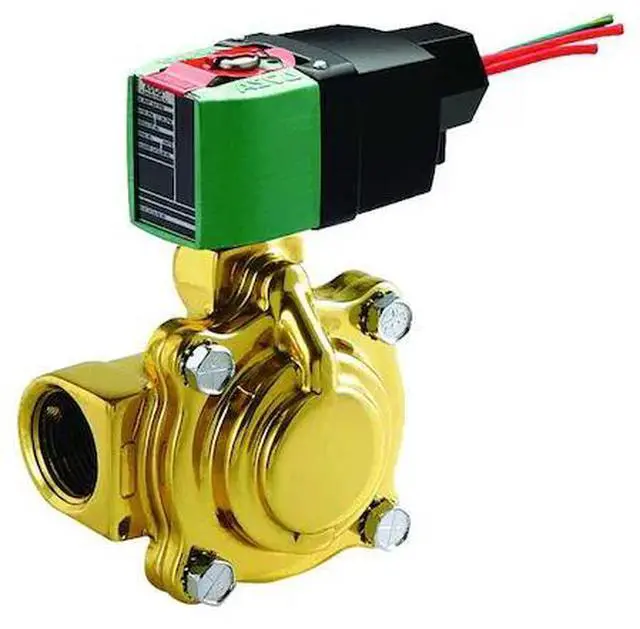

REDHAT 8210P008 Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/4 in

The ASCO 8210P008 is a pilot-operated, 2-way/2-position solenoid valve with a normally closed configuration. Controls flow for air, inert gas, light oil, and water within differential pressure ratings: 350 psi (air/inert gas), 100 psi (light oil), 150 psi (water). The valve body is constructed from brass and features NPT inlet and outlet connections with a nominal pipe size of 1-1/4 inches and a center line pipe center size of 2 inches. Coil and seals included. Mounting orientation: vertical. The coil has an H insulation class and operates at 100V to 240V AC/DC with a frequency of 60 Hz. Response time: 1 second. Operating temperatures: ambient 14-140°F; fluid temperatures up to 180°F.

Key Features:

• - Valve Design: 2-Way/2-Position, Normally Closed
• - Operation Type: Pilot Operated
• - Body Material: Brass
• - Connection Types: Inlet and outlet NPT threads, nominal pipe size 1-1/4 in
• - Flow Capacity: Cv of 15 with 1-1/8 in orifice diameter
• - Pressure Ratings: Maximum differential 350 psi (air/inert gas), 100 psi (light oil), 150 psi (water); minimum differential 5 psi for all media
• - Electrical: Coil wattage: 1.5 W; coil included; 100V to 240V AC/DC, 60 Hz frequency, and 1/2 in conduit hub connections
• - Enclosure ratings: IP66; NEMA 1, 2, 3, 3S, 4, 4X
• - Mounting orientation: Vertical
• - Seal Material: NBR
• - Dimensions: Overall length 4 in, height 5-5/8 in, width 3-3/4 in
