1/2" NPT 2-Way Solenoid Valve 3/4" ORF 3/4" Orifice ASCO 8212A019S0100F0

California Proposition 65: This product contains a chemical known to the State of California to cause cancer. California Proposition 65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm.

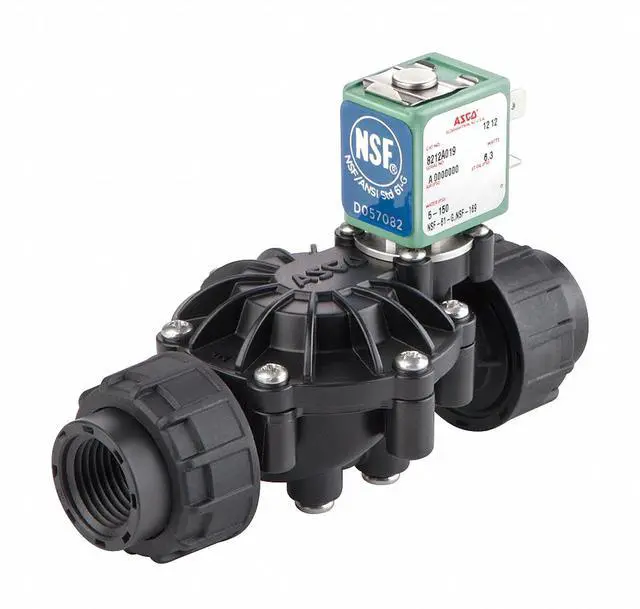

The ASCO 8212A019S0100F0 Solenoid Valve is a pilot-operated, 2-way/2-position valve with a normally closed configuration. Intended use: Water conditioning and purification systems. Its valve body is made from Polymide Polyphenylene Ether. The valve incorporates a 3/4 inch orifice diameter and 1/2 inch NPTF inlet and outlet connections. It operates at voltages of 110-120 VAC at 50/60 Hz with a holding wattage of 6.9 W. Coil enclosure: IP65 rated; NEMA 4X; insulation: Class F; electrical connection: DIN.

Key Features:

• - Valve Type: Pilot Operated, 2-Way/2-Position, Normally Closed
• - Media Compatibility: Water
• - Differential pressure range: 5 psi to 150 psi (water)
• - Maximum Fluid Temperature: 150°F
• - Body Material: Polymide Polyphenylene Ether
• - Seal Material: EPDM
• - Orifice Diameter: 3/4 in
• - Connection Types: Inlet and Outlet NPTF thread, 1/2 in nominal pipe size
• - Electrical: 110-120 VAC @ 50/60 Hz, 6.9 W wattage, DIN connection
• - Coil enclosure rating: IP65; NEMA 4X; insulation: Class F
• - Environmental Rating: Indoor use
• - Includes: coil and seals
• - Certifications: UL, CSA, NSF 61, 169, 42, 372
• - Dimensions: Overall height 3-5/16 in, length 4-29/32 in, width 2-5/8 in
