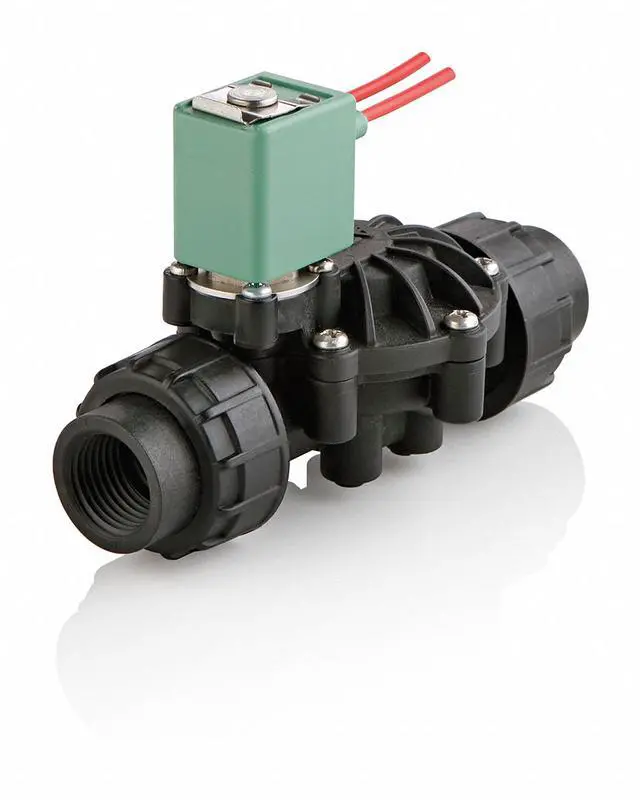

ASCO 8212A037L1100F0 Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in

California Proposition 65: This product contains a chemical known to the State of California to cause cancer. California Proposition 65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm.

The ASCO 8212A037L1100F0 is a pilot-operated, normally closed solenoid valve designed for controlling the flow of water in water conditioning and purification systems. It features a 2-way/2-position valve design with a nominal pipe size of 3/4 inch and an orifice diameter of 3/4 inch. The valve body is made from polymide polyphenylene ether, and it includes an EPDM seal. It is compatible with water media. Maximum operating temperature: 150°F. Maximum differential pressure: 150 psi (air, inert gas, and water).

Key Features:

• - Valve Type: High-pressure, temperature-rated
• - Differential pressure range: 5 to 150 psi (air, inert gas, and water)
• - Coil: Included with watertight enclosure and Class F insulation
• - Electrical Specifications: 110V AC @ 50Hz, 120V AC @ 60Hz; 6.9 W power consumption
• - Electrical Connections: Leaded coil with 1/2 in NPT threaded conduit adaptor
• - Connection Type: Inlet and outlet NPTF threads
• - Dimensions: 5-3/16 in length, 3-5/8 in height, 2-5/8 in width
• - Environmental Rating: Indoor with IP65 and NEMA 4X enclosure ratings
• - Valve Positions: 2-Position, Normally Closed starting configuration
• - Flow Coefficient (Cv): 7
• - Includes Seal: Yes, made of EPDM
• - Compliance Standards: UL, CSA, NSF 61, 169, 42, 372
