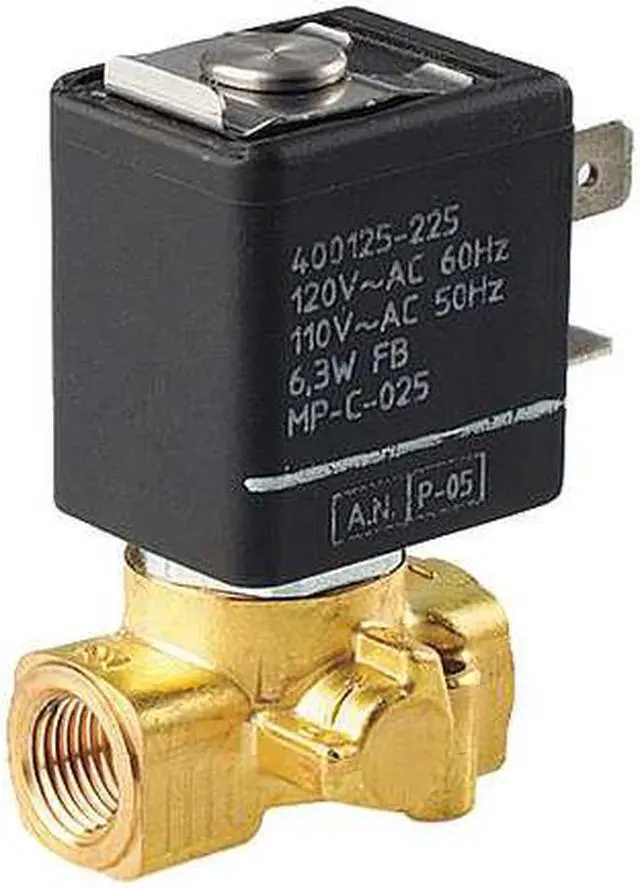

ASCO SC8256B045V Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in

The ASCO SC8256B045V is a compact, direct-acting 2-way/2-position solenoid valve with a normally closed configuration. The valve is rated to control media: air, inert gases, light oil, and water within the specified operating pressure and temperature ranges. Operation is actuated by an energized coil; coil included with the product. This valve supports both horizontal and vertical mounting orientations and is rated for indoor use with NEMA 4/4X enclosure protection and IP66 ingress protection.

Key Features:

• - Body Material: Brass
• - Seal Material: FKM
• - Nominal Pipe Size: 1/8 in
• - Center Line Pipe Size: 1-13/16 in
• - Orifice Diameter: 1/8 in
• - Valve Design: 2-Way/2-Position
• - Valve Starting Configuration: Normally Closed
• - Operating Pressure Differential Maximum: 135 psi air/inert gas, 80 psi light oil, 126 psi water
• - Operating Pressure Differential Minimum: 0 psi for air/inert gas, light oil, and water
• - Fluid Temperature Maximum: 180°F
• - Coil Voltage: 24V AC
• - Coil Wattage: 6.3 W
• - Coil Insulation Class: F
• - Electrical Connections: DIN
• - Coil enclosure without a junction box; enclosure rated watertight per product specifications
• - Includes Coil: Yes
• - Includes Seal: Yes
• - Environmental Rating: Indoor
• - Response Time: 20 msec
• - Overall Dimensions: Length 1-13/16 in, Height 2 in, Width 1 in
