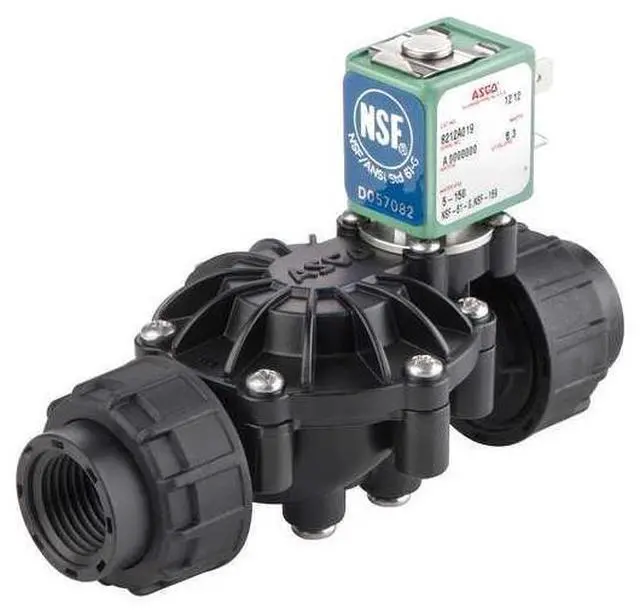

ASCO 8212A020S0100F1 Solenoid Valve, 2-Way, 2-Position, Normally Open, 1/2 in

California Proposition 65: This product contains a chemical known to the State of California to cause cancer. California Proposition 65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm.

The ASCO 8212A020S0100F1 is a pilot-operated, normally open solenoid valve designed for controlling water flow in water conditioning and purification systems. It features a 2-way, 2-position configuration with a 3/4 inch orifice diameter and 1/2 inch NPTF inlet and outlet connections. Valve body material: polyimide polyphenylene ether (per manufacturer specification). It operates at 24V DC with an 11W coil included. This valve provides automated flow control with a flow coefficient (Cv) of 4.5, suitable for indoor environments and rated for fluid temperatures up to 150°F.

Key Features:

• - Valve type: High-pressure, temperature-rated per specification
• - Seal Material: EPDM
• - Coil enclosure: NEMA 4X rated
• - Coil Insulation Class: F
• - Compliance: UL, CSA, NSF 61, 169, 42, 372
• - Electrical Connections: DIN
• - NEMA Enclosure Rating: 4X
• - Operating Pressure Differential: Minimum 5 psi; Maximum 150 psi Air/Inert Gas, 120 psi Water
• - Maximum operating water pressure: 90 psi
• - Dimensions: Overall Height 3-5/16 in, Overall Length 4-29/32 in, Overall Width 2-5/8 in
• - Includes Seal and Coil
