30A Solar Panel Regulator Charger Controller 12V/24V Auto Focus Tracking

Features:
-Build- in industrial micro controller.

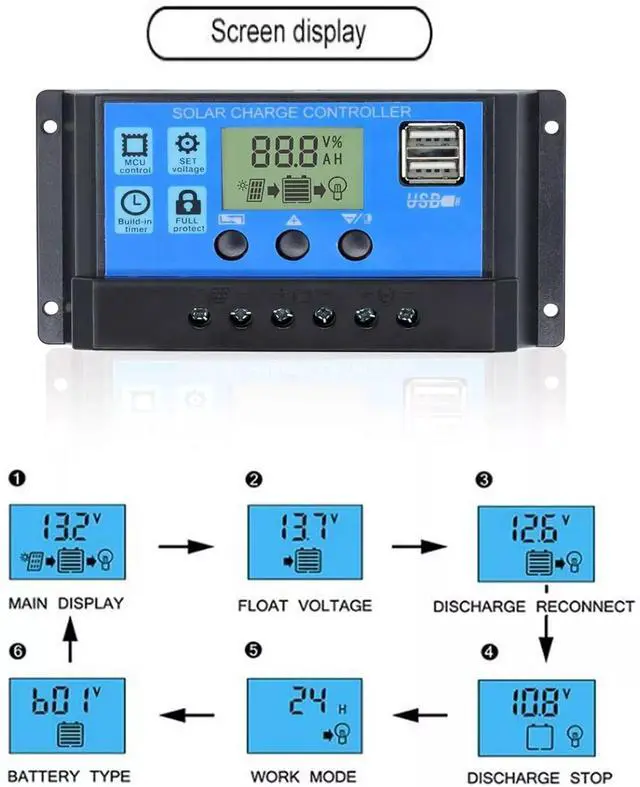

-Big LCD/LED display, charge and discharge current display, cumulative power generation and discharge power query, temperature display, light control + delay control; adjustable charge and discharge parameters, with power-off memory and other functions.
-Fully 3-stage charge management, PWM battery charging as well as MPPT solar charge controller.

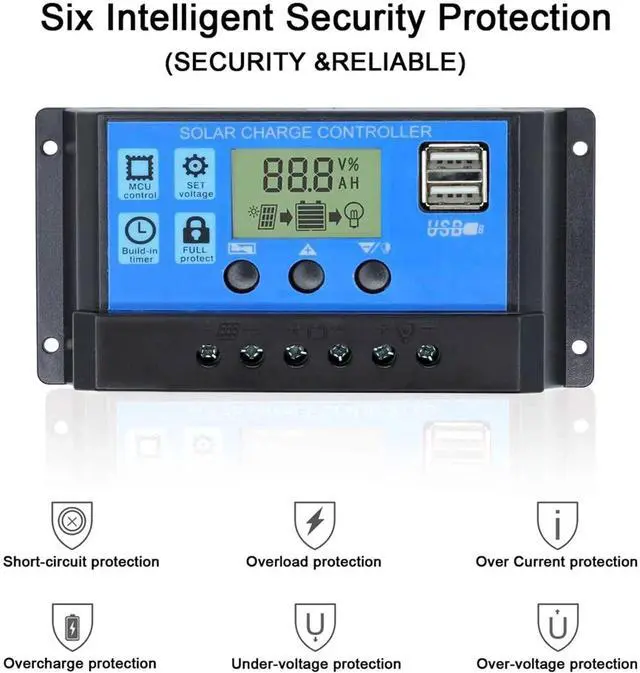

-Build -in short-circuit protection, open-circuit protection, reverse protection, over-load protection.
-Dual USB output, the maximum current of 2.5A, to support Apples mobile phone charging.
-Dual reverse current protection, low heat production.

Specification:
Rated voltage: 12V/24V
Charging Mode: PWM+MPPT
Rated current: 30A
Max PV VOTAGE: 50V
Max PV input Power: 360W (12V) 720 (24V)
colour: orange
Material: Plastic
size: 133x70x35mm/ 5.24 * 2.76 * 1.38
Display: LCD screen
Self-consumption: <10MA
Overcharge protection: 14.4V / 28.8V
Overcharge Float charge: 13.7V / 27.4V
Charge recovery voltage: 12.6V / 25.2V
Over discharge protection: 10.7V / 21.4V
Over discharge recovery: 12.6V / 25.2V
Dual USB output: 5V / 2A (charge mobile phone, iPad, etc. )
Working temperature: -35 -60
12V fits 18V solar panel, 24V fits 36V solar panel
12.0 volt lead acid battery corresponding
The float voltage is set to: 13.6
The recovery discharge voltage is set to: 12.6
The discharge cut-off voltage is set to: 10.7
12.8 volt lithium iron phosphate battery corresponding
The float voltage is set to: 14.6
The recovery discharge voltage is set to: 13.6
The discharge cut-off voltage is set to: 11.0
11.1 volt lithium battery corresponding
The float voltage is set to: 12.6
The recovery discharge voltage is set to: 11.6
The discharge cut-off voltage is set to: 9.6
The minute is adjustable when the output is turned off, which is more convenient (there is no adjustment when the market is only available).

Package included:
1 x 30A Solar Controller
