4000W MPPT Solar Charge Controller 100A/12V 24V 36V 48V USB Battery PV Regulator

Feature:
LCD Liquid Crystal Display: Large LCD display, support battery working status display, solar panel working status display, mode control display, load output status and each parameter display, normal and fault status display.

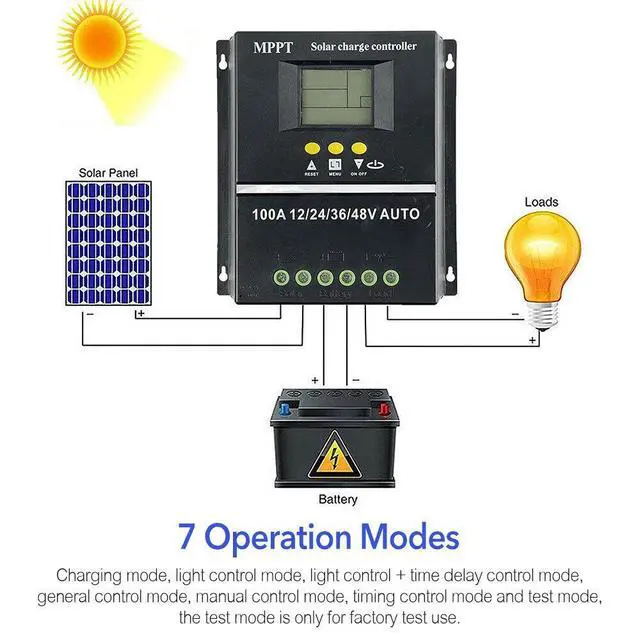

7 Operation Modes: Charging mode, light control mode, light control + time delay control mode, general control mode, manual control mode, timing control mode and test mode, the test mode is only for factory test use.

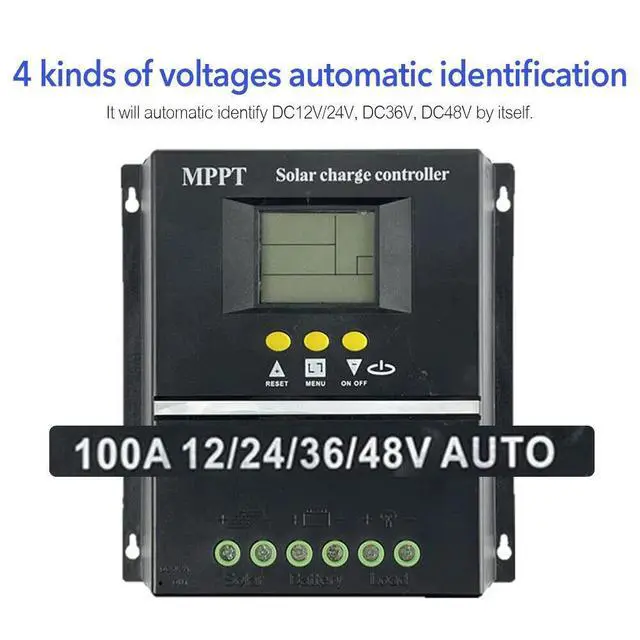

4 kinds of voltages automatic identification: It will automatic identify DC12V/24V, DC36V, DC48V by itself.
Large-section Wiring Port: use large-section, large-spacing wiring ports, can be installed 16mm wire, the wire spacing of 7mm increases the insulation performance and the reliability of installation, effectively reduces current and voltage drop while reducing losses.
Dual USB Charging Ports: The solar charge controller adopts a dual USB charging port design, which can charge two devices at the same time, and supports most of USB port devices, such as mobile phones, tablets, PSP game consoles, etc.
Thickened Aluminum Alloy Heat Sink: The MOS tube is used to lock the heat sink design, the heat dissipation is more uniform, and there is no fear of the temperature rise caused by the MOS tube, the powerful heat dissipation capacity can operate normally in the environment of 55, at the same time, it is equipped with functions to prevent overcharge, overvoltage, DC output low voltage, high voltage protection and reverse polarity protection, etc.



Clock setting instructions:
When the battery is connected, press "" "" to set the clock table, short press "" to save.
Charging voltage setting instructions:
After connecting the battery, after setting the clock and saving, long press "" for 3-5 seconds, the screen displays L**V as the floating charge voltage, which can be adjusted by pressing ""; short press again ""H**V is to increase the charging voltage, which can be adjusted by pressing ""; shortly press "" again. F**V is the low-voltage cut-off voltage of the DC load, which can be adjusted by pressing ""; after setting Long press "" for 3-5 seconds to save and exit.



Specification:
Type: Solar Charge Controller
Maximum charging current: 100A
Maximum input voltage of photovoltaic panels: 15V-23V (12V), 30V-45V (24V), 45V-69V (36V), 60V-90V (48V)
Maximum input power of photovoltaic panels: 1000W (12V), 2000W (24V), 3000W (36V), 4000W (48V)
Output voltage: DC12V/24V/36V/48V; DC5V/ 1.5A x2USB

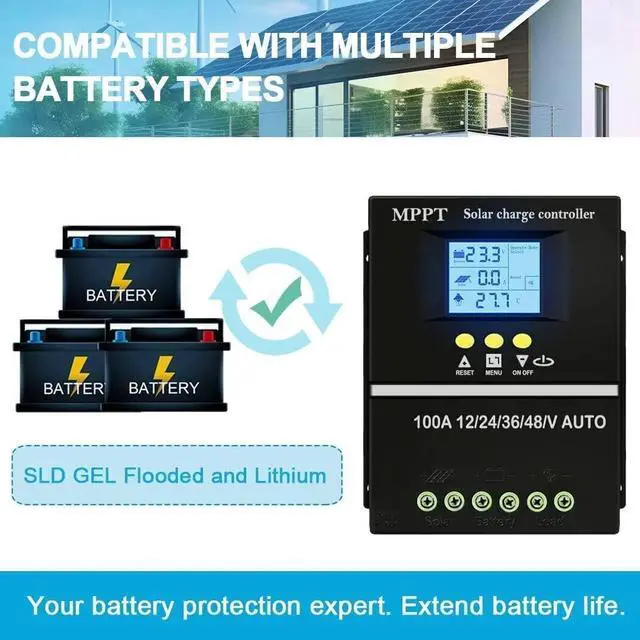

Support Battery: Lithium Battery & Lead Acid Battery
Working temperature: -25~55
Cooling method: heat sink self-cooling

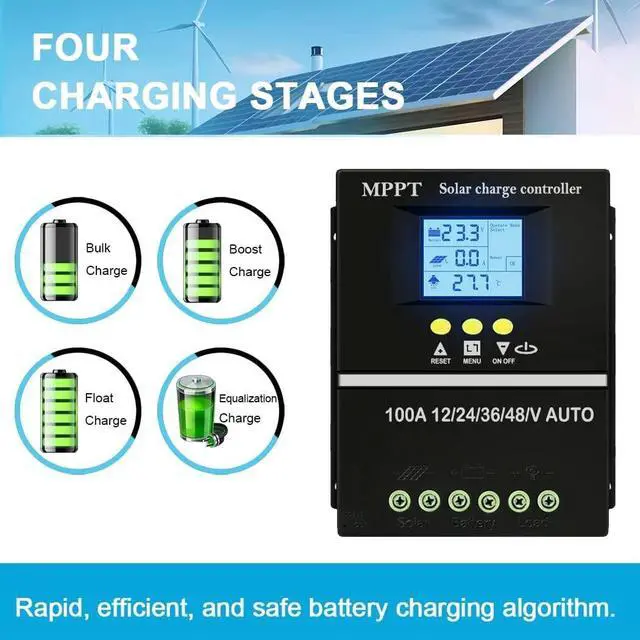

Charging method: Focused MPPT modulation charging
Working mode: seven
Protection function: prevent overcharge, overvoltage/DC output low voltage, high voltage protection, reverse polarity protection, etc.



Package list:
1 × Solar Charge Controller
1 × Manual
