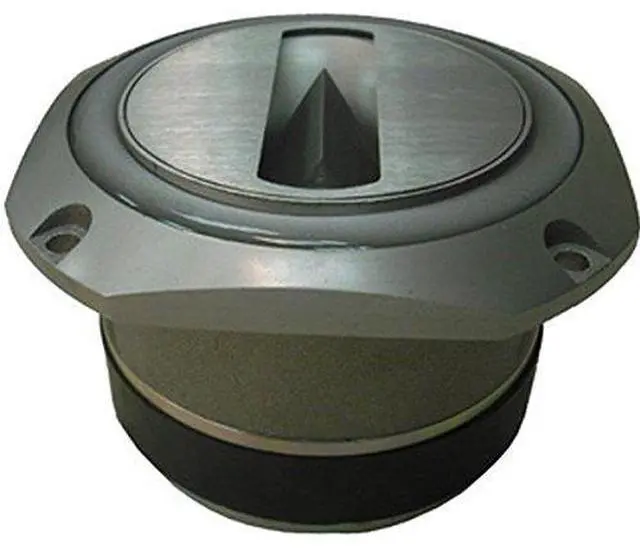

    BEYMA 4",8OHMS,25WATT AES,

    • Item #: 9SIV00CK6W8315
    • Mfr. Part #: CP21F
    Be the first to review this product...
    +
    +
    Overview
    Specs
    Reviews

    BEYMA 4", 8OHMS, 25WATT AES,

  • Nominal impedance: 8 Ohms
  • Minimum impedance: 8 Ohms @ 9 kHz
  • Re: 6.1 Ohms
  • Power capacity: 25 W AES
  • Program power: 50 W
  • Sensitivity: 105 dB 1 W @ 1 m coupled to horn
  • Frequency range: 3500-20000 Hz
  • Recom. crossover frequency: 5 kHz or higher (12 dB/oct. min slope)
  • Dispersion HxV: 140x40A Degrees
  • Voice coil diameter: 37.6 mm 1.5 in
  • Flux density: 1.55 T
  • BL factor: 5.2 N/A
  • Diaphragm material: Aluminium
  • KEY FEATURES
  • Wave guide fulfillin requeriments for Line Array applications.
  • 3-in x 0.4 -in rectangular exit.
  • Neodimium magnetic circuit for hight efficiency.
  • Effective acoustical coupling up to 18 kHz
  • Extended frequency range 0.7 - 20 kHz
  • 1.75 -in voice coil for excelent power handing (410 W AES).
  • CONSTRUCTIVE DETAILS
  • External diameter: 102x102 mm 4x4 in
  • Depth: 72 mm 2.83 in
  • Cutout diameter: A, 92 mm 3.62 in
  • Bolt circle diameter: 107 mm 4.21 in
  • Net weight: 1.7 kg 3.75 lb
  • Total weight: 1.75 kg 3.85 lb
  • Magnet: Ferrite
