PCIE3.0 to 4-Ports 6Gbps SATA 3.0 Expansion Card for PCs, Servers, NAS, MAC Pros-Plug and Play on Windows, MAC OS, Linux System-ASMedia ASM1064 Non-Raid PCIE 3.0 SATA Controller (FS-S4-Pro)

PCI Express 3.0 to 4-Ports Serial ATA/SATA 3.0 6Gbps Max Speed Expansion Card
This FebSmart FS-S4-Pro is a PCI Express to 4-Ports Serial ATA/SATA 3.0 expansion card. It is PCIE 3.0 X1 interface degsin will provide 8Gbps total bandwidth, each SATA 3.0 ports will get 6Gbps max speed. It supports none boot mode and AHCI Boot up mode. With this PCIE SATA card users can add 4X max None-Raid SATA 3.0 6Gbps speed SSD/HDD on desktop computers, working stations, Mac Pros and Network Attached Storage (NAS). It is also support plug and play on almost all currently active systems .

SATA Controller Down Stream Features:

Compliant with Serial ATA Specification 3.1.Supports communication speeds of 6 Gbps, 3 Gbps, and 1.5 Gbps.

Supports programmable transmitter signal levels.Supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.

Supports AHCI 1.0 programming interface.Supports Native Command Queuing (NCQ).

Supports Port Multiplier FIS based switching or command-based switching.

Supports Partial and Slumber Power Management states.Supports Staggered Spin-up.

PCIE Up Stream Features:

Compliant with PCIe 3.0 specifications.Supports communication speed of 2.5 Gbps,5 Gbps and 8Gbps.

Supports AHCI programming interface registers for the SATA controller.Supports aggressive power management

Supports error reporting, recovery, and correction.Supports Message Signaled Interrupt (MSI).

FS-S4-Pro Tech Specifications

4X 6Gbps Max SATA III Data Ports
1. 4X SATA 3.0 6Gbps Ports,will backward compatible with SATA I 1.5Gbps,SATA II 3Gbps.

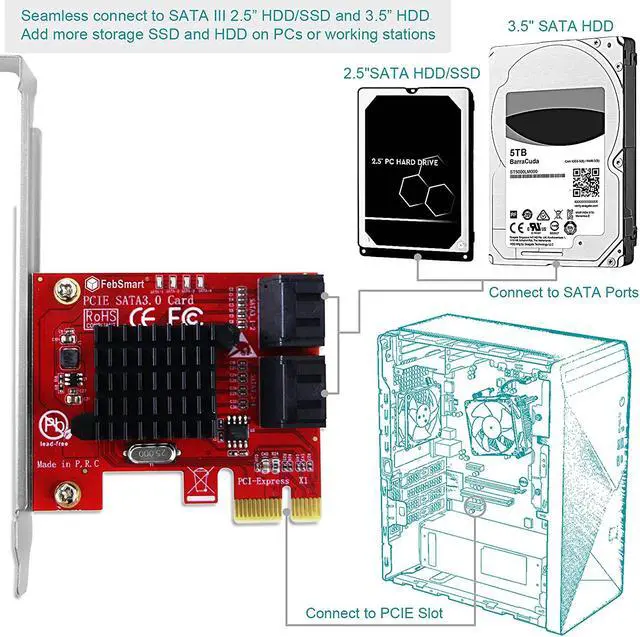

2. Seamless works with SATA I, SATA II and SATA III standard SSD/HDD.

3.Light up 4X Max SSD/HDD on PCs,also support AHCI mode BOOT UP.

4.PCIE 3.0 X1 degsin will provide 8Gbps total bandwidth.

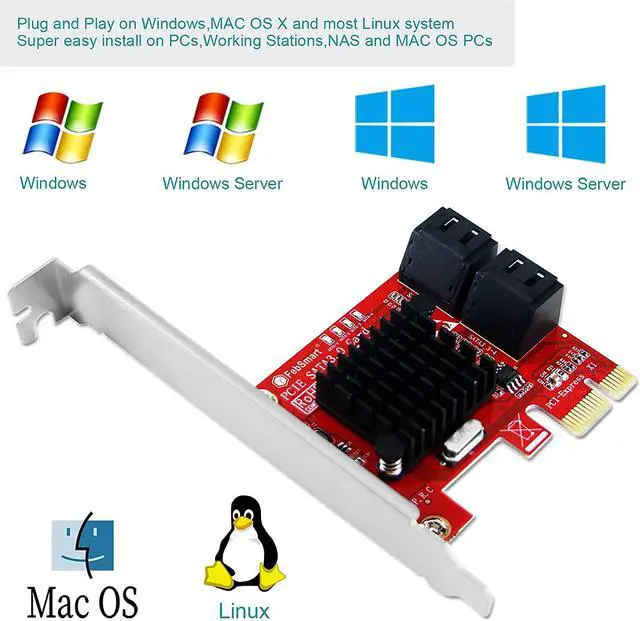

Support Windows,MAC OS,Linux
1.Plug and Play on all active Windows system,Windows XP,7,8.0,8.1,10(32/64) and Windows Server 2003,2003R2,2008, 2008R2, 2012,2012R2,2016,2019(32/64)

2.Support In-Box driver on MAC OS 10.4.x, 10.5.x,10.6.x,10.7.x,10.8.X,10.9.x, 10.10.x, 10.11.x,10.12.x,10.13.x,10.14.x,10.15. x.

3.Most of main stream Linux system support plug and play.

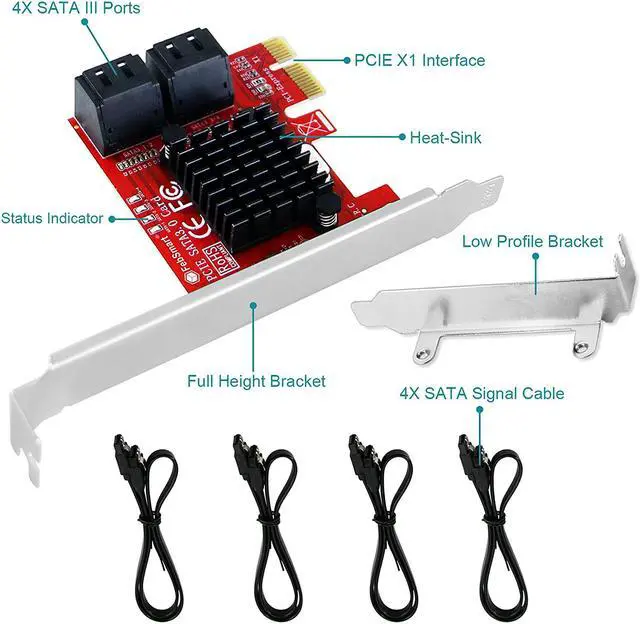

Packed with 4X SATA III Cable
1.To ensure the PCIE SATA card performance we packed 4X SATA 3 cable in the retail package.Users no need to buy SATA cable anymore.

2.Enjoy super easy installation with plug and play function on most of desktop PCs, working stations and data centers.

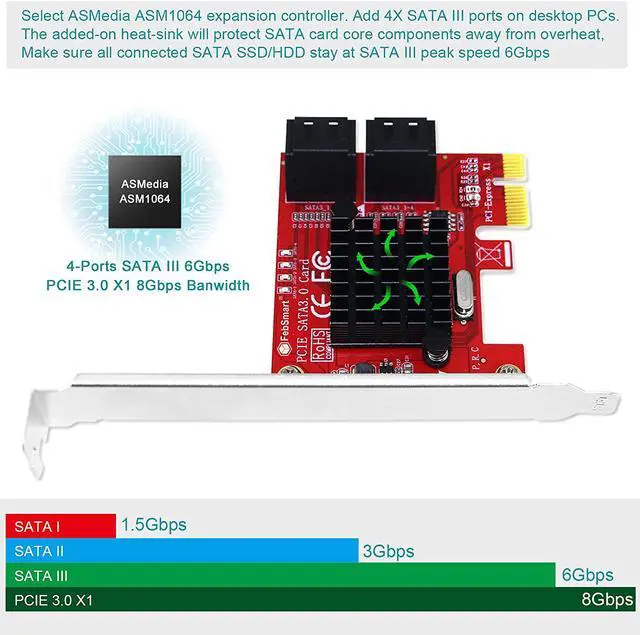

ASMedia ASM1064 SATA Controller
1.FebSmart FS-S4-Pro select the best compatibility 4-Ports PCIE SATA controller solution ASMedia ASM1064. Works well on Intel,AMD,MAC and ARM platform.

2.We designed the Heat-Sink on the ASMedia major chip to ensure the PCIE SATA expansion card performance,keep this card always in best condition.

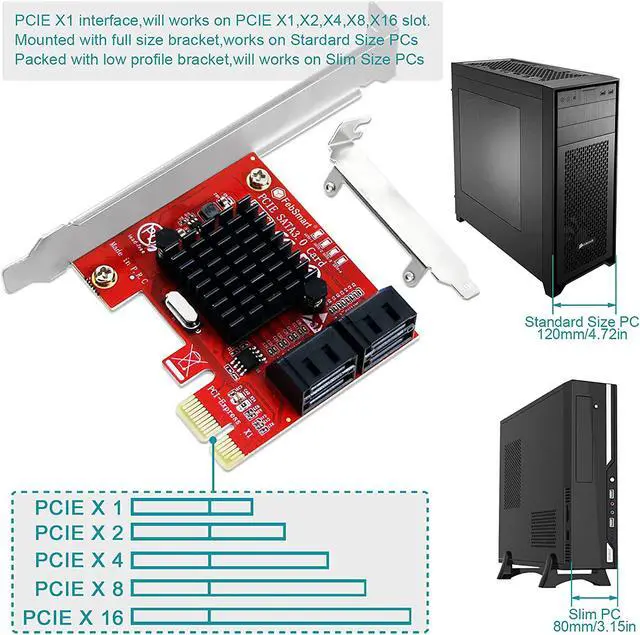

PCI Express 3.0 X1 Interface Design
1. PCI Express 3.0 standard design,will works on PCI Express 1.x,2.x3.x and 4.x protocol.

2.PCI Express X1 interface design,works on PCIE X1,X2,X4,X8,X16 slot.

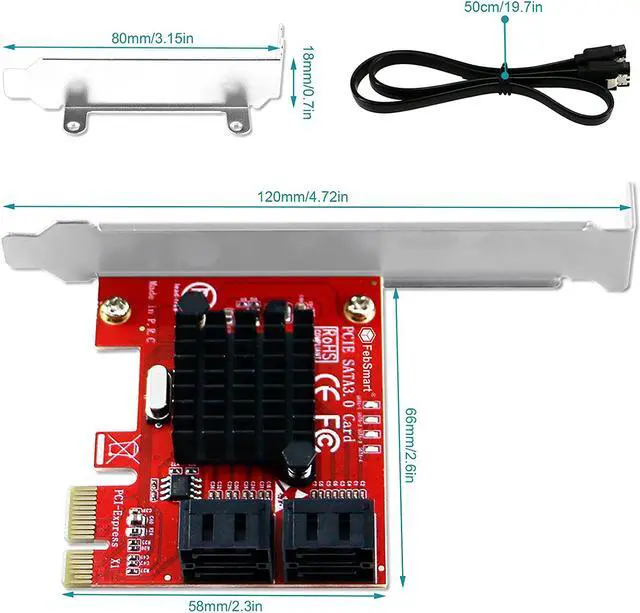

Works on Full Size and Slim Size PCs
1. Mounted with full height bracket,will works on standard size desktop computers and servers.

2.Packed with low profile bracket will works on Slim size desktop c
