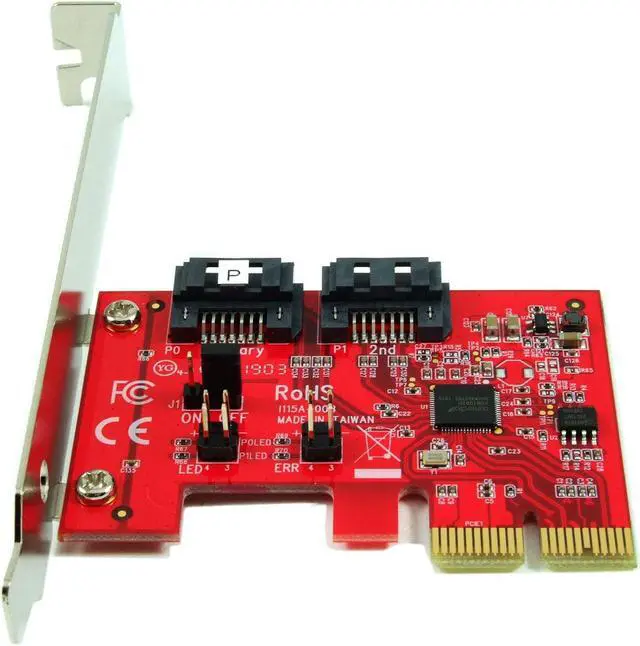

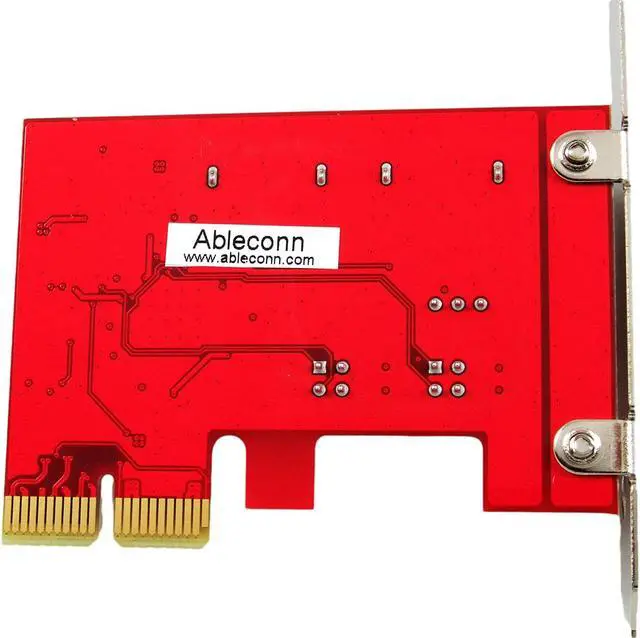

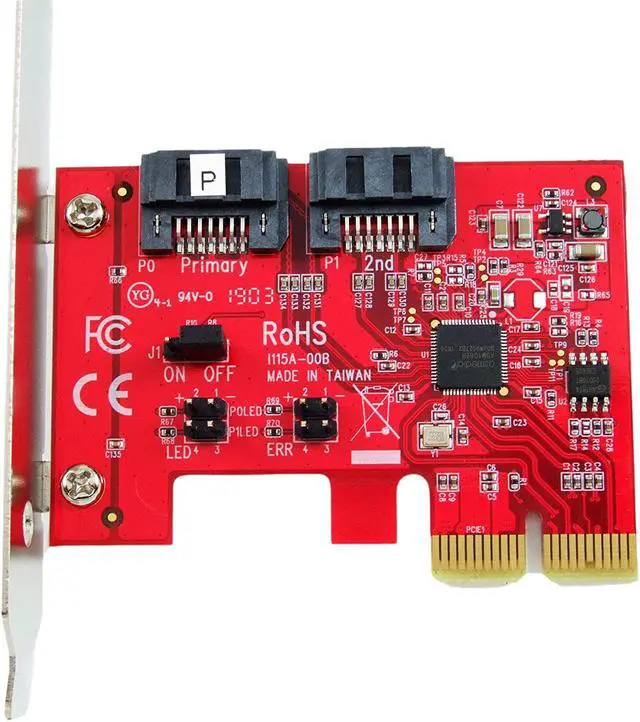

PEX-SA151 SATA III RAID 2-Port PCIe x2 Card (ASMedia ASM1062R Controller) - Support RAID 0 / RAID 1 / Span / Non-RAID

Add two SATA III ports with hardware RAID capability to your computer.

Specification
* Connector:
- 2 x SATA (7 pin; DATA) Plug
- PCI Express x2 Male
* Chipset: ASMedia ASM1062R

* Software:
- No driver installation is required on Windows 10/8/7, Server 2008 and later, Linux, macOS 10.9.1 and later. The AHCI drivers are natively built-in on most Operating Systems
- Legacy ROM on board that supports Legacy BIOS mainboard Booting for Windows and Linux. The product does not support booting for UEFI mainboards.
- Legacy BIOS on board support OS Booting for Windows and Linux

* Data transfer rate:
- Up to 6 Gbps

* Requirements:
- An empty PCIe x2 or x4 or x8 or x16 PCIe slot

* 6Gbps SATA III PCIe 2.0 x2 Lane Host Adapter
* Hardware RAID controller to offload host CPU for max performance
* Supports hardware RAID 0 / RAID 1 / SPAN (Big Disk) and Normal (non-RAID) modes for HDD and SSD
* Non-RAID mode supports Optical Drive, Blu-Ray Drive and SATA Command-based Port Multiplier
* Fully compliant with Serial ATA specifications 3.2
* Supports ATA and ATAPI commands
* Supports Native Command Queuing (NCQ)
* Supports TRIM

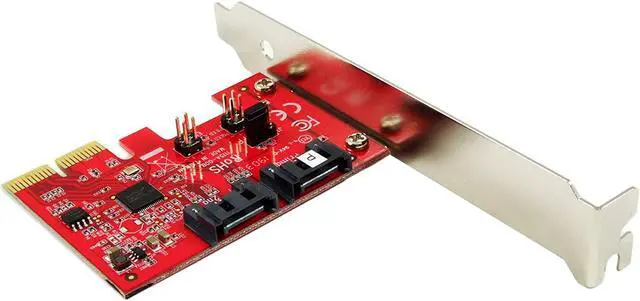

* Low Profile PCIe form factor card on a regular size bracket with an additional Low Profile bracket included
* Two Pin headers on board for Device LED connection
* Supports operating temperature range: +0 ~ +85 ºC
* Fully RoHS compliant
* Made in Taiwan

Package Contents
* Ableconn Hardware RAID SATA PCI Express Card
* One (1) low profile PCIe bracket
* Quick Installation Guide
