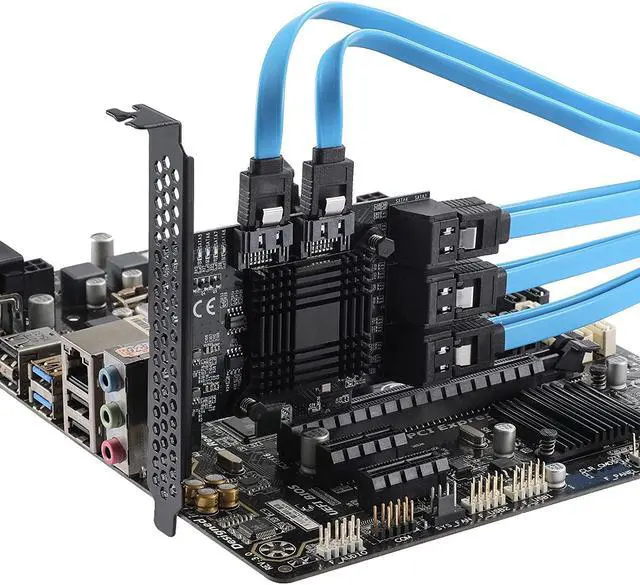

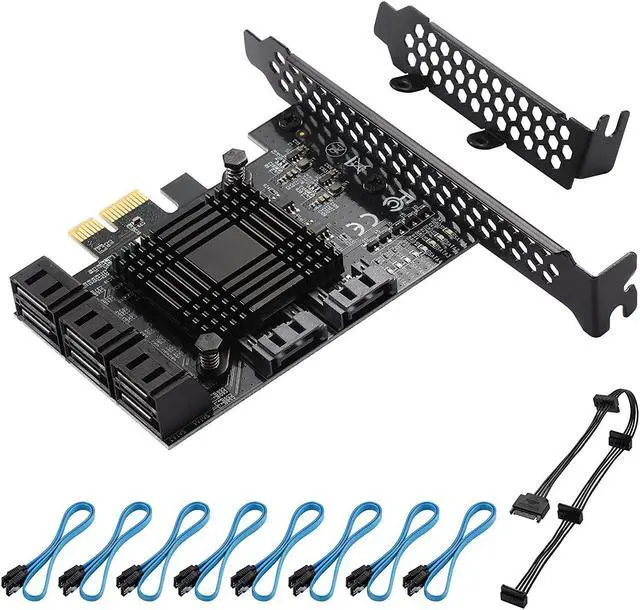

BEYIMEI PCIe SATA Card 8 Ports, PCI-E X1 3.0 Gen3 (6Gbps) Controller Card with 8 SATA Cables, Power Splitter Cable and Low Profile Bracket,SATA 3.0 Controller Expansion Card (ASM1064+JMB575)
- Item #: 9SIVAMDHY97109
- Mfr. Part #: 6900901243
- UNSPSC: 43201557

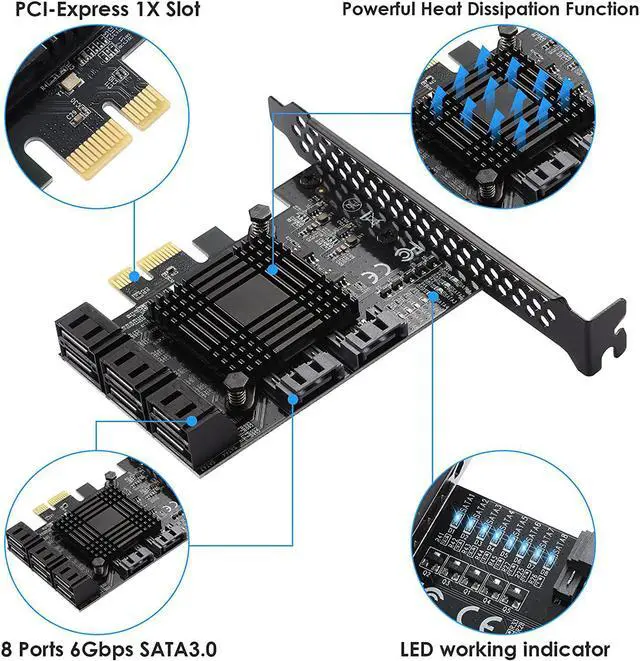

- 8 Ports Sata Card--- This PCIE SATA card allows you to add 8 SATA 3.0 6Gbps devices to your computer. Powerful chip --- Using the ASMedia ASM1064+JMB5XX, enhances heat dissipation, long-lasting high temperature resistance and more stable operation. Support interface --- There is an available PCI Express X1 slot, while supporting PCI-E X4/ X8/ X16 (This SATA 3.0 expansion card is only suitable for motherboard slots via PCI-E . Do not apply to PCI slots). Support system --- WIN8 /WIN10/ LINUXEasy to install, plug and play. This PCIe 1X 8SATA expansion card contains Included 8 SATA cables and 15pin SATA power splitter cable, make connection easier.It provides you with a complete set of perfect match.
+
+
Overview
Specs
Reviews
ProductName: 8-Port SATA 3.0

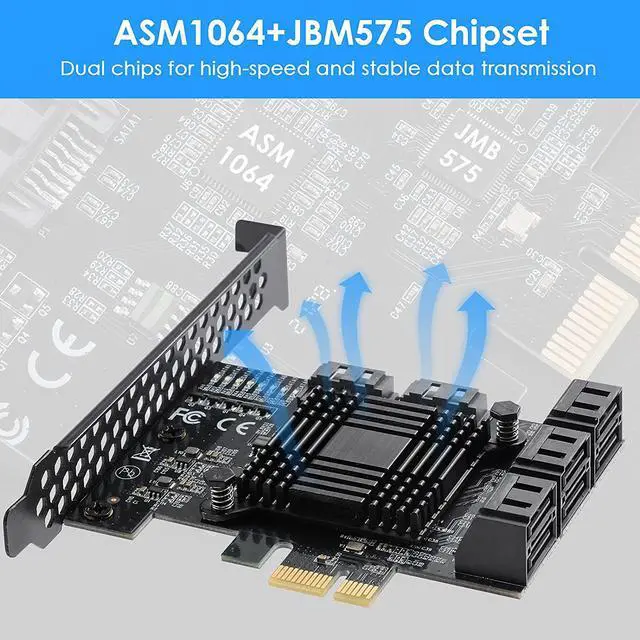

ExpansionCardProductRoot: ASM1064 +
JMB575ProductInterface: PCI-E 1X 3.0

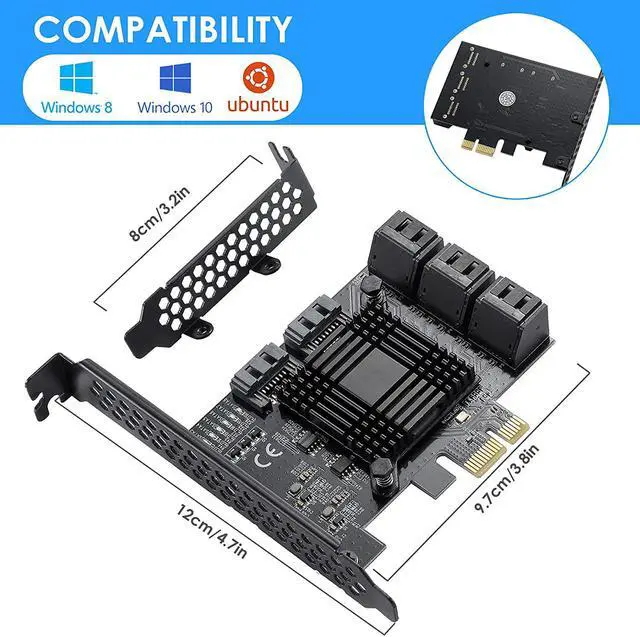

SupportSystem: WIN8 / WIN10 / Ubuntu Conforms to Serial ATA 3.0 specification, backwards compatible with SATA 2.0 SATA 1.0F ollow PCI-Express v 2.0 specification and backwards compatible with PCI-Express v1. 0. Supports communication speeds of 6.0 Gbit / s, 3.0 Gbit / s and 1.5 Gbit / sSupports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x and Gen 3i. Supports the AHCI1. 0 mode and IDE modeNative command queue (NCQ) supportSupport FIS based on port multiplier switch or command switch. Support hot hot swap. Compatible with SATA6G, 3G and 1.5G hard drives

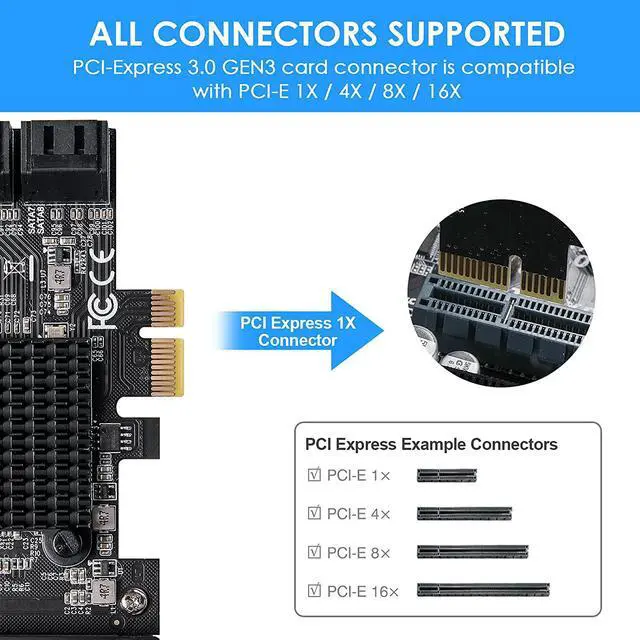

Systemrequirements: A PCI Express 1x slot is available that supports 1x / 4x / 8x / 16x Information on the speed description1. The best effect can be achieved with the SATA 3.0 data cable. 2. The setting of the motherboard

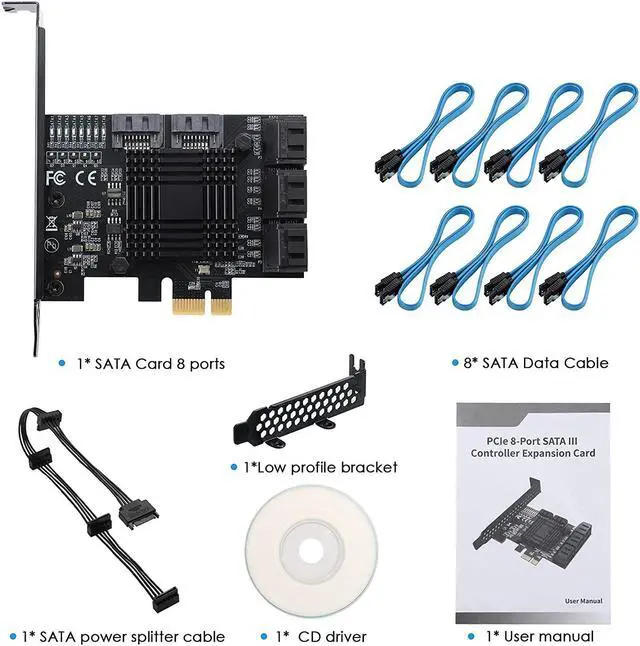

BOIS: SATA mode should be changed to AHCI. Although some motherboards are PCIE version 2.0, by default BOIS does not enable gen2 high speed mode, which must be enabled manually. The fastest speed of PCI-E 2.0 is 380-450 m / s. When connected to PCI-E 1.0, the speed is only 200-300 m / s. Different computer configurations and SATA SSDs have different speeds. 3. SATA ports slow down when used at the same time. This is not for users looking for speed. They are only used for expansion hard disk interfaces. Packing list 1 * PCIe X1 to 8 SATA 3.0 card8 x SATA cables 1 x low-profile bracket1 x manual1x 15pin SATA power splitter cable
ExpansionCardProductRoot: ASM1064 +
JMB575ProductInterface: PCI-E 1X 3.0
SupportSystem: WIN8 / WIN10 / Ubuntu Conforms to Serial ATA 3.0 specification, backwards compatible with SATA 2.0 SATA 1.0F ollow PCI-Express v 2.0 specification and backwards compatible with PCI-Express v1. 0. Supports communication speeds of 6.0 Gbit / s, 3.0 Gbit / s and 1.5 Gbit / sSupports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x and Gen 3i. Supports the AHCI1. 0 mode and IDE modeNative command queue (NCQ) supportSupport FIS based on port multiplier switch or command switch. Support hot hot swap. Compatible with SATA6G, 3G and 1.5G hard drives
Systemrequirements: A PCI Express 1x slot is available that supports 1x / 4x / 8x / 16x Information on the speed description1. The best effect can be achieved with the SATA 3.0 data cable. 2. The setting of the motherboard
BOIS: SATA mode should be changed to AHCI. Although some motherboards are PCIE version 2.0, by default BOIS does not enable gen2 high speed mode, which must be enabled manually. The fastest speed of PCI-E 2.0 is 380-450 m / s. When connected to PCI-E 1.0, the speed is only 200-300 m / s. Different computer configurations and SATA SSDs have different speeds. 3. SATA ports slow down when used at the same time. This is not for users looking for speed. They are only used for expansion hard disk interfaces. Packing list 1 * PCIe X1 to 8 SATA 3.0 card8 x SATA cables 1 x low-profile bracket1 x manual1x 15pin SATA power splitter cable
