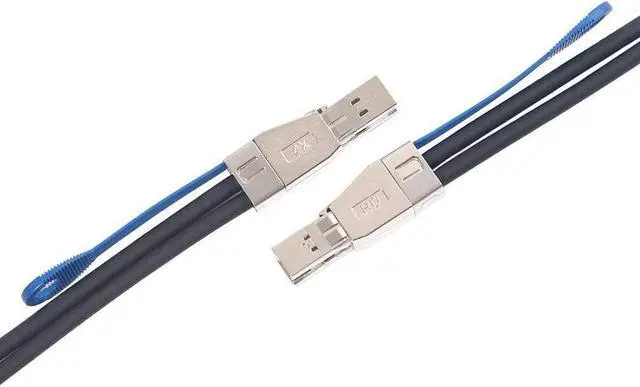

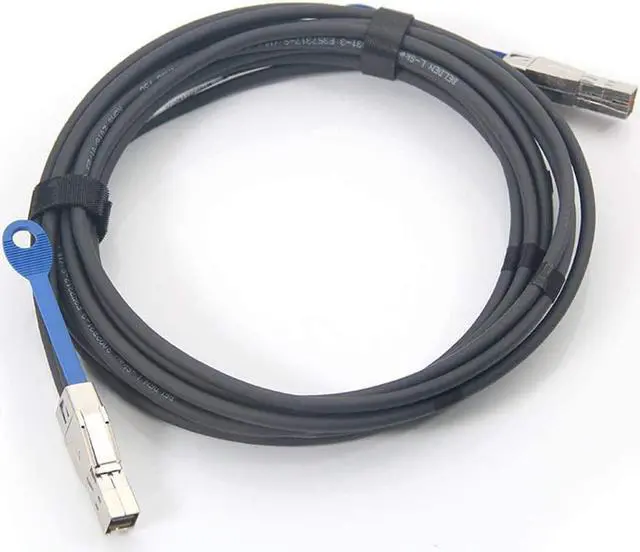

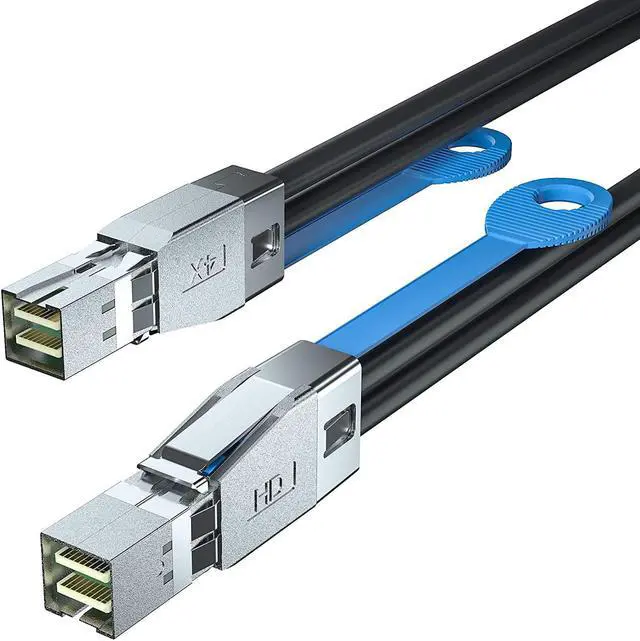

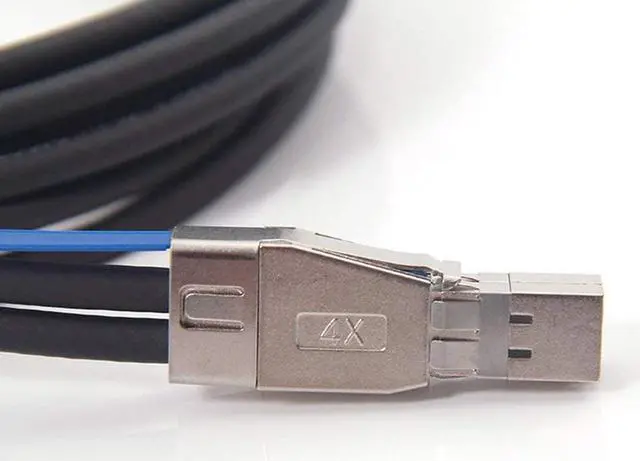

12G External Mini SAS HD Cable - SFF-8644 to SFF-8644 for Server, Raid Card & PCI Express Controller, 2-Meter(6.6ft)

12G SAS HD Cable SFF-8644, 0.5 ~7 metersIpolex\u2018s External SAS HD (SFF-8644 ) receptacle assembly is the next-generation SAS high-speed I/O interface. This interface was adopted for the SAS 2.1 standard and proposed for SAS 3.0 standard and is designed to support 6G and future 12G SAS applications. The passive Mini SAS HD copper cable assembly is up to 12Gbps data rates per channel. The EEPROM signature enables the host to identify what type and length of cable is connected to its port, and can be customized for any application. An improved latch design reduces the insertion force and increases the retention force.

Features:
Length: 0.5 ~7 meters Passive SFF-8644 compliant
ConnectorA: External SAS HD (SFF-8644)Connector
B: External
SASHD(SFF-8644)Impedance: 100
OhmsDataRate: 12.00 Gb/s per channel8-pair differential twinax cable30/28/26AWG
Applications: RAID systemsStorage racksExternal Storage SystemsSAS/SATA HBA interfacesDirect-attached storage (DAS)
Compliant: SAS 2.1SFF -8644
