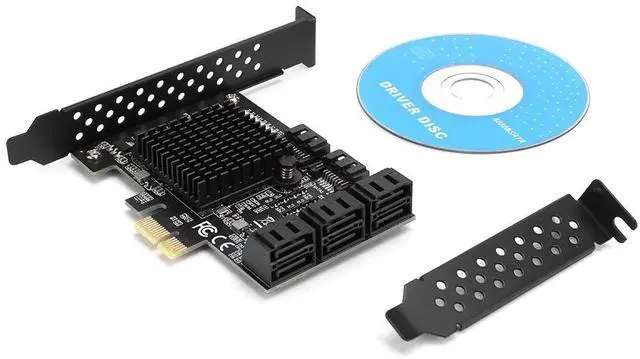

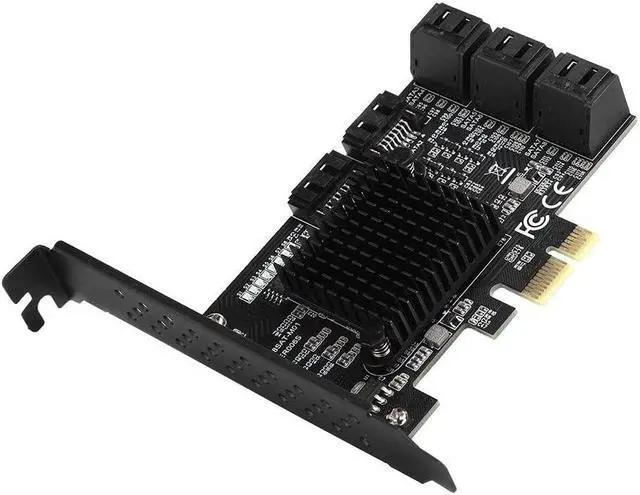

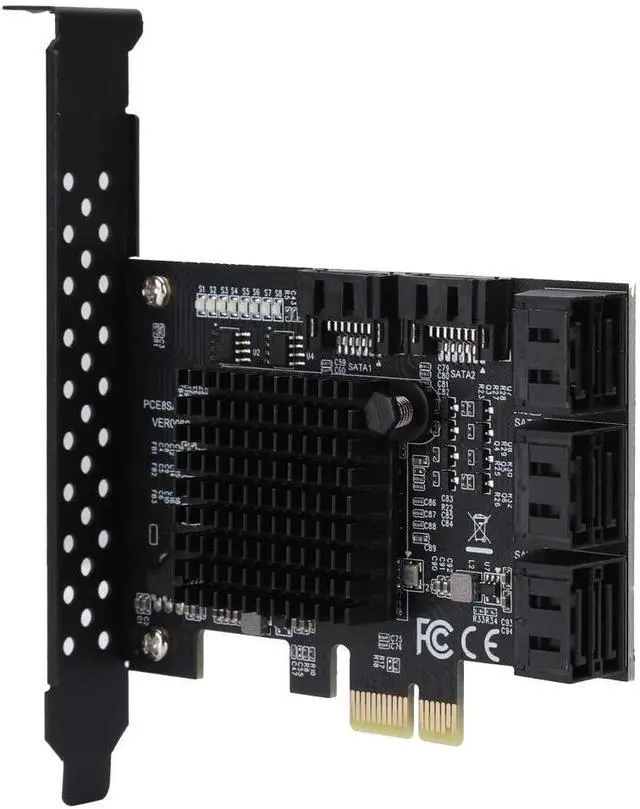

EBTOOLS 8 Port PCI E to SATA3.0 Controller, PCI Express to SATA3.0 8 Port SATA III Expansion Controller Card Adapter

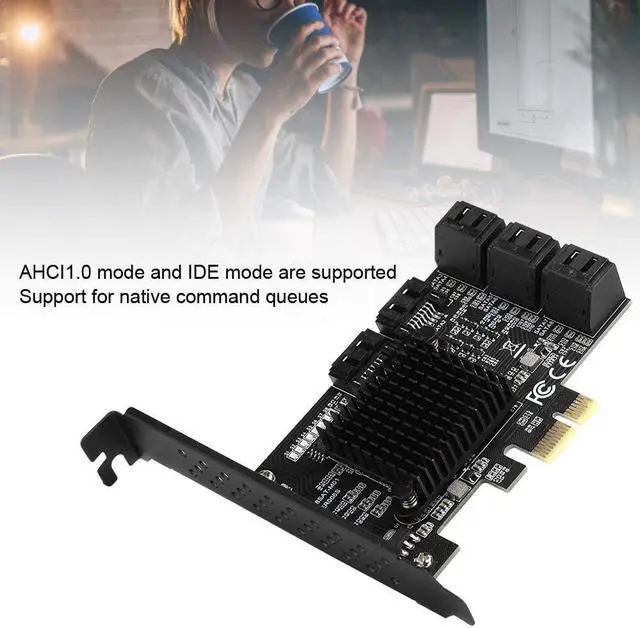

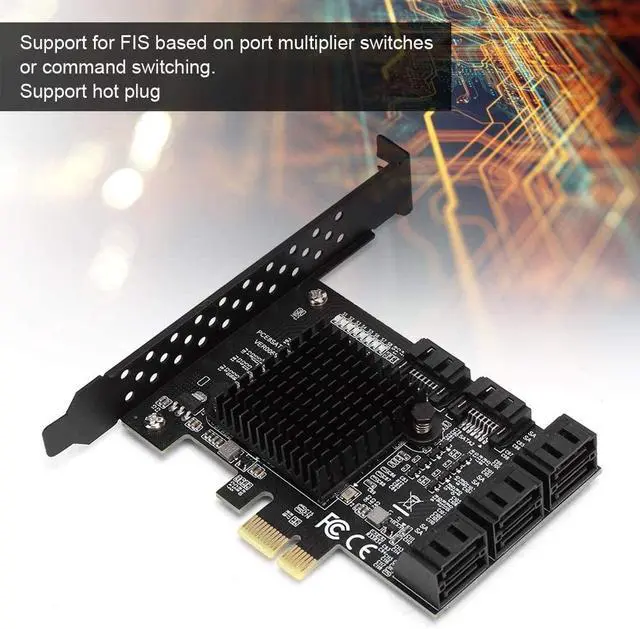

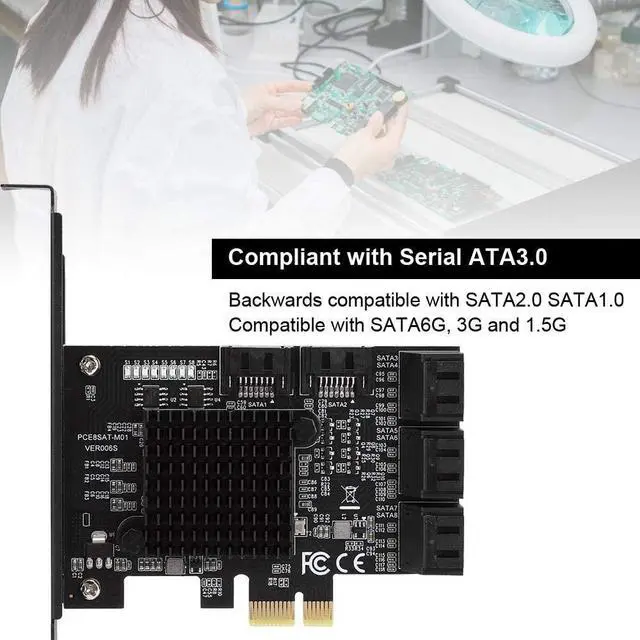

- Compliant with Serial ATA 3.0 specification, backward compatible with SATA2.0 SATA1.0; PCI Express v2.0 compliant, backward compatible with PCI Express v1.0. Supports communication speeds of 6.0 Gbps, 3.0 Gbps and 1.5 Gbps; supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i. Supports AHCI1.0 mode and IDE mode, native command queue (NCQ), FIS based on port multiplier switch or command switching and hot plug. Compatible with SATA6G, 3G and 1.5G hard drives. User with SATA3.0 data cable for best results.
+
+
Overview
Specs
Reviews
Specification: Item
Type: PCI E to SATA 3.0
CardModel: PCE8SAT
M01Master: Fit for Marvell 88SE92xx+JMB5XX
Interface: PCI E 1X 2X 4X 8X 16X
SupportSystem: Fit For Windows 7/8/XP/10 Fit For Ubuntu
ExpansionInterface: 8 x SATA 3.0
InterfacesPackageList: 1 x Expansion Card1 x Semi High Baffle1 x
DriverDiscNote: PCI E must have a slot above V 2.0, V 1.0 will not exceed 250M, PCI E can be X1 or X16 as long as it is V 2.0 version, there is spare X16 slot directly into X16 slot on.
BOISsettingofthemotherboard: SATA mode should be changed to AHCI, although some motherboard PCIE is version 2.0, but BOIS does not enable high speed transmission mode by default (gen2 high speed mode) needs to be manually turned on. In PCI E 1.0 mode, only 200to 250M, 2.0 mode is below 350 to 400M. If you don't accept it, change the motherboard. When the SATA port is used at the same time, it will slow down. It is not suitable for users who are pursuing speed. It is only used for the extended hard disk interface. From the brand
Type: PCI E to SATA 3.0
CardModel: PCE8SAT
M01Master: Fit for Marvell 88SE92xx+JMB5XX
Interface: PCI E 1X 2X 4X 8X 16X
SupportSystem: Fit For Windows 7/8/XP/10 Fit For Ubuntu
ExpansionInterface: 8 x SATA 3.0
InterfacesPackageList: 1 x Expansion Card1 x Semi High Baffle1 x
DriverDiscNote: PCI E must have a slot above V 2.0, V 1.0 will not exceed 250M, PCI E can be X1 or X16 as long as it is V 2.0 version, there is spare X16 slot directly into X16 slot on.
BOISsettingofthemotherboard: SATA mode should be changed to AHCI, although some motherboard PCIE is version 2.0, but BOIS does not enable high speed transmission mode by default (gen2 high speed mode) needs to be manually turned on. In PCI E 1.0 mode, only 200to 250M, 2.0 mode is below 350 to 400M. If you don't accept it, change the motherboard. When the SATA port is used at the same time, it will slow down. It is not suitable for users who are pursuing speed. It is only used for the extended hard disk interface. From the brand
