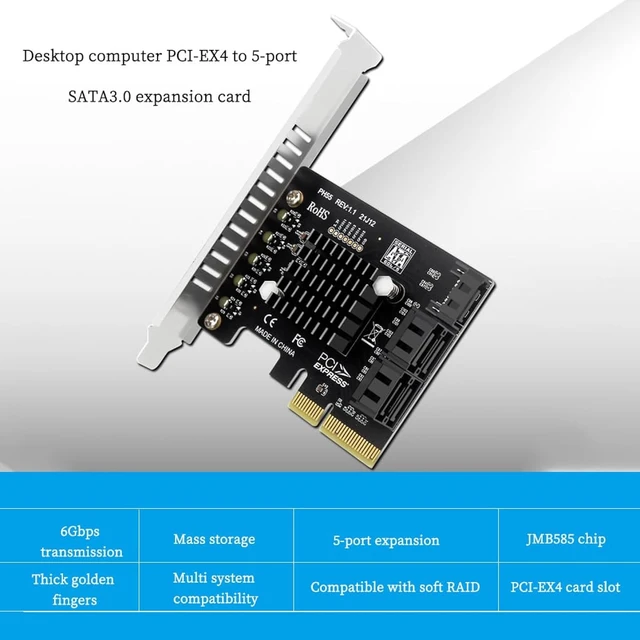

PH55 PCIe X4 to 5-Port SATA3.0 Expansion Card 6Gbps for Each SATA Port with Heatsink Support Soft RAID (with Half Height Baffle)

PH55 PCIe X4 to 5-port SATA 3.0 Expansion Card 6Gbps Each SATA Port with Heatsink Support soft RAID for DesktopPCI-E X4 to 5-port SATA 3.0 Expansion Card for

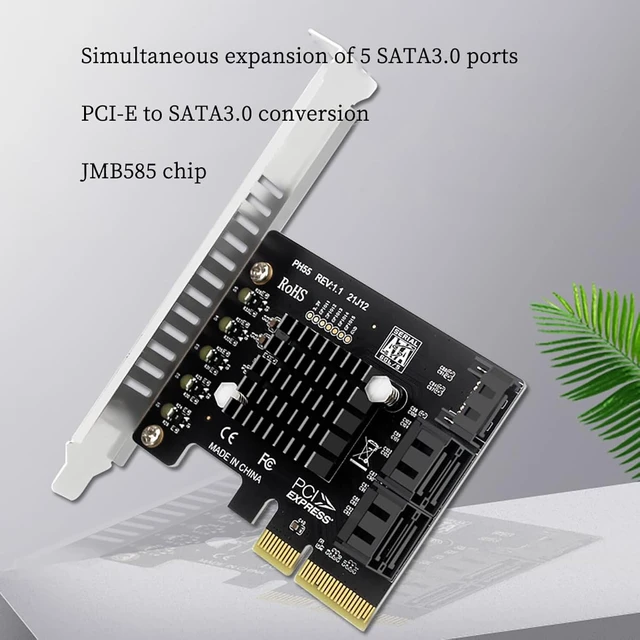

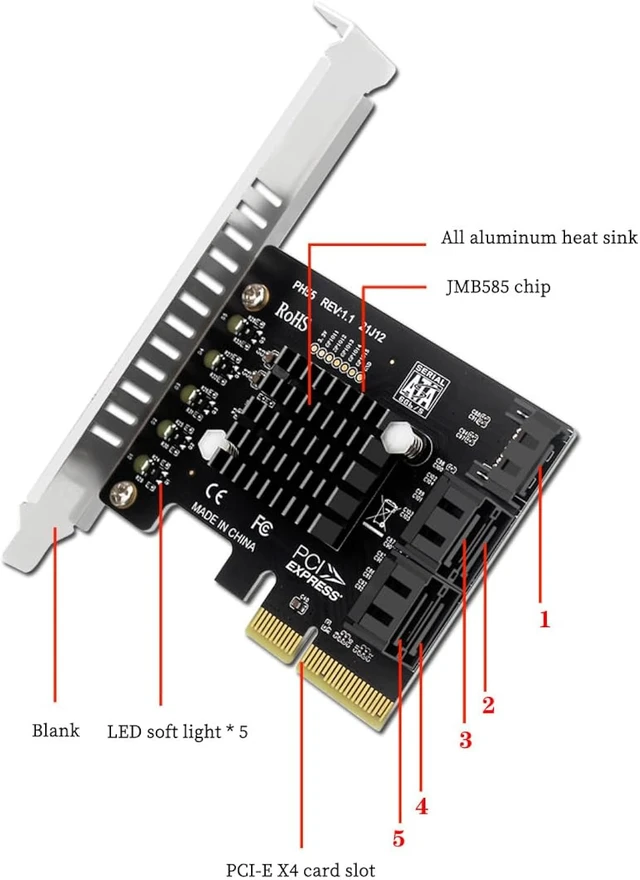

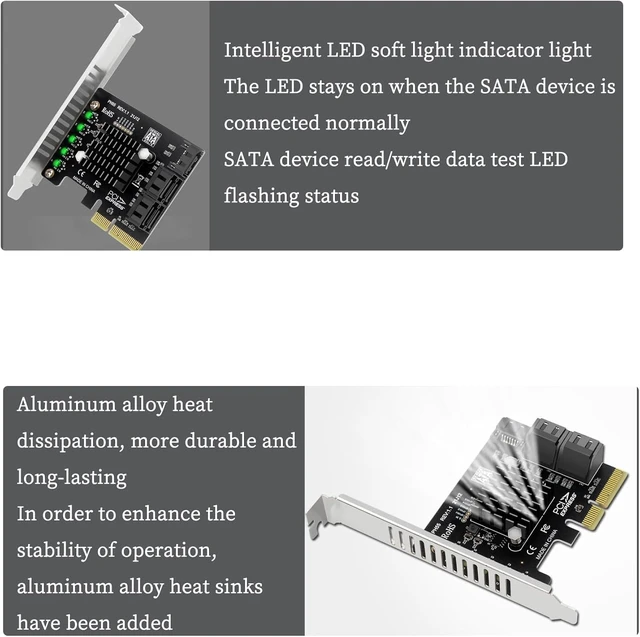

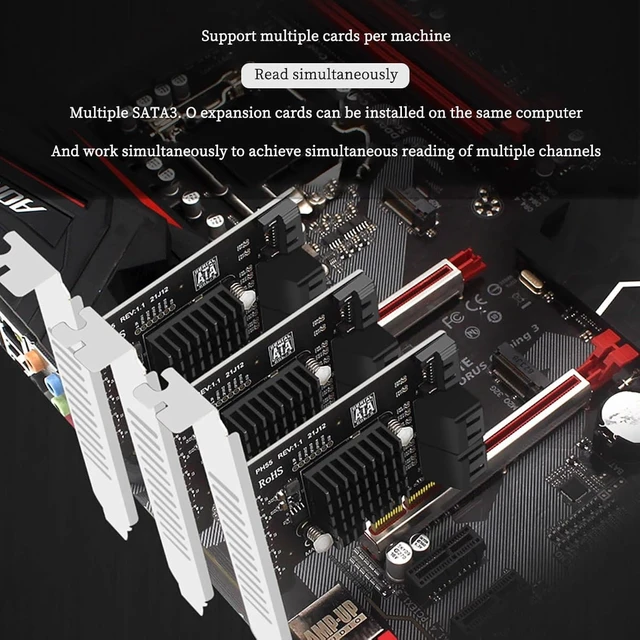

Desktop ComputersProduct Features: 6Gbps transfer, thickened gold finger, massive storage, PCI-E X4 slot, 5-port expansion, multi-system support, JMB585 chip, support soft RAIDJM585 Main ControlAdopts the latest JMB585 chip solution, high-speed transmission and stable performance, dedicated to meet the user's needs for massive data spaceSupports multiple cards on one computer for simultaneous readingMultiple SATA 3.0 expansion cards can be installed in the same computer and work at the same time, to realize multiple simultaneous readingIntelligent LED soft light indicatorWhen SATA device is normally connected, the LED is always on. LED blinks when SATA device is reading or writing data. Aluminum alloy heat dissipation, more durableIn order to enhance the stability of operation, aluminum alloy heat sink is added. Multi-system compatibilityCompatible with Wins series, MacOS, Linux and other systems. The system comes with soft RAID, support 4 storage modesExpansion adapter board supports desktop computer WIN 8.164 bit professional version of the system above, the formation of four soft RAID storage mode. 1. RAID1 (Mirror/SAFE mode)In this mode, two disks mirror each other as a backup, the same information, such as a bad disk just need toIf a disk is damaged, you only need to remove the faulty disk and replace it with a disk of equal or greater capacity to automatically recover the information without losing data.

2. AHCI1 (PM mode) In this mode, each individual disk to store information without interfering with each other, each disk as an independent body, insert a few disks show a few disks. 3. SPAN (BIG mode) In this mode, the capacity of all the disks added to the largest disk, the data will be stored on different disks, the disadvantage is that the disk will be lost if the data is damaged and will not be retrieved. 4. RAIDO (FSAT mode) In this mode, the information will be stored on multiple disks to form a whole, but the capacity of the smallest disk based on the capacity multiplied by the number of inserted disks, the theoretical transfer speed of a single disk 2 times.
Product ParametersModel Name: PH55Product
Size: 120*80mmProduct

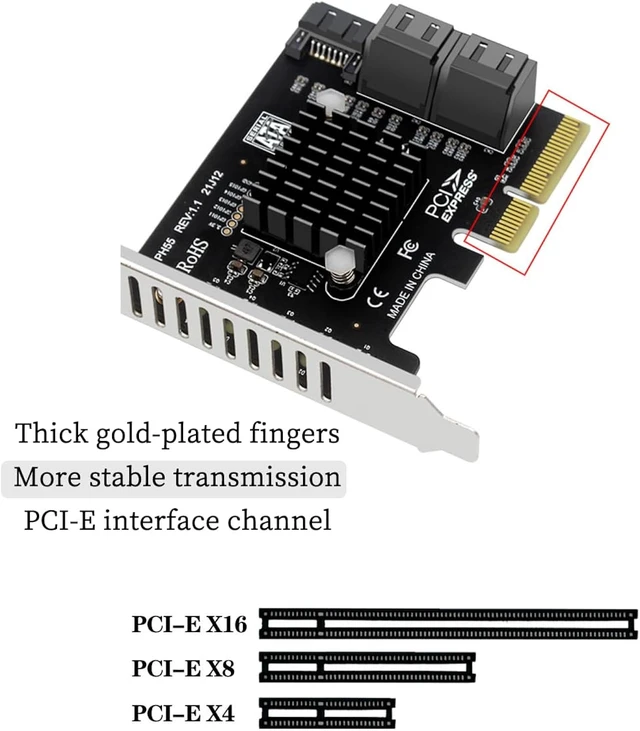

Interface: Support PCI-E X4 (compatible with X8 X16) interfaceOutput
Interface: SATA 3.0 *5Product
Weight: 46.6G
