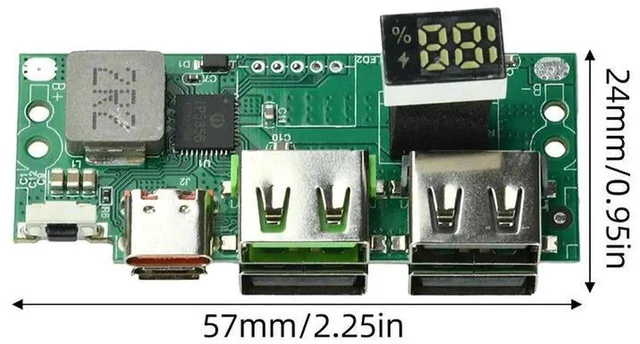

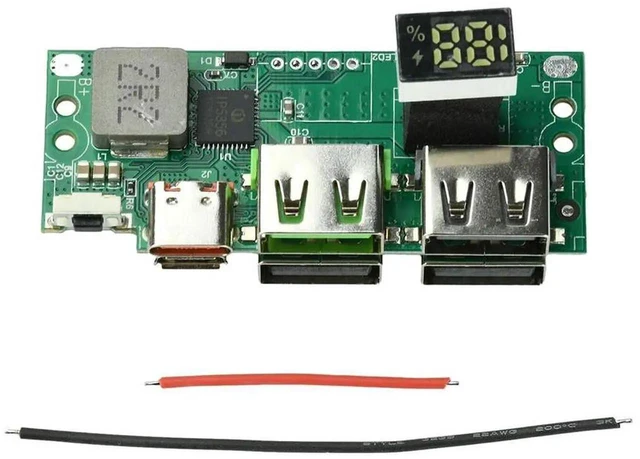

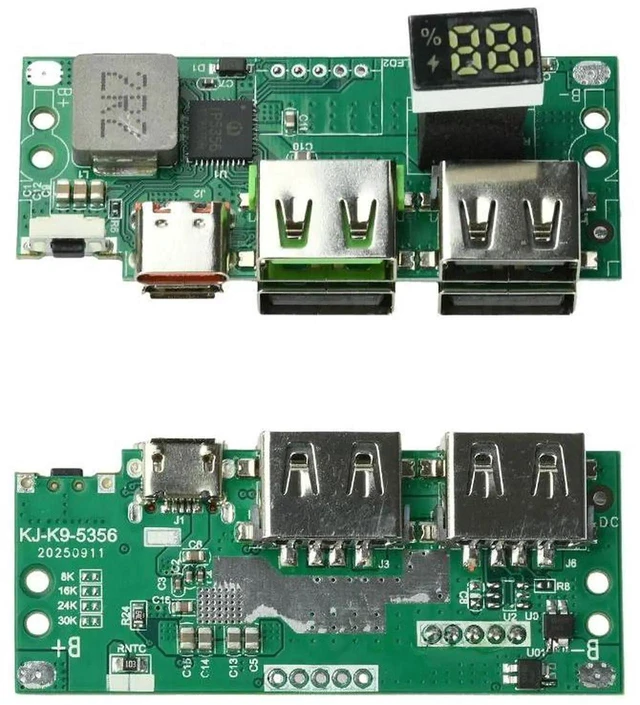

IP5356 22.5W PD QC3.0 Power Bank DIY Module 3.7V Lithium Battery Charge Discharge Board with Digital Display Fast Charging Power Supply Control Circuit for Homemade Portable Power Banks

Product Description:

IP5356 DIY power bank module designed for 3.7V lithium-ion batteries. It provides charge and discharge control for homemade portable power banks, backup power supplies, and lithium-battery-powered DIY electronics, with a digital display for monitoring battery level and operating status.

Core Selling Points:

Supports 22.5W fast charging and discharging with PD and QC 3.0 protocol compatibility. The digital display provides a clear view of remaining battery capacity and real-time working status. Integrated protection features help guard against overcharging, over-discharging, overcurrent, short circuit, and overtemperature conditions. The high-efficiency charge and discharge conversion circuit helps reduce energy loss. Compact layout, clear pin definition, and straightforward wiring support DIY assembly and power supply modification.

Technical Specifications:

Model: IP5356

Suitable battery: 3.7V lithium-ion battery

Fast-charge protocols: PD, QC 3.0

Maximum power: 22.5W

Display: Digital battery-level indicator

Protection: Overcharge, over-discharge, overcurrent, short circuit, and overtemperature protection

Core function: Lithium battery charge and discharge control for DIY power banks

Installation: Module-style DIY assembly requiring an external 3.7V battery

Before Purchase:

Use matched 3.7V lithium battery cells and an external battery. Correct wiring sequence is required to help avoid damage to the module or battery. This is a module for DIY assembly and is not a complete power bank.
