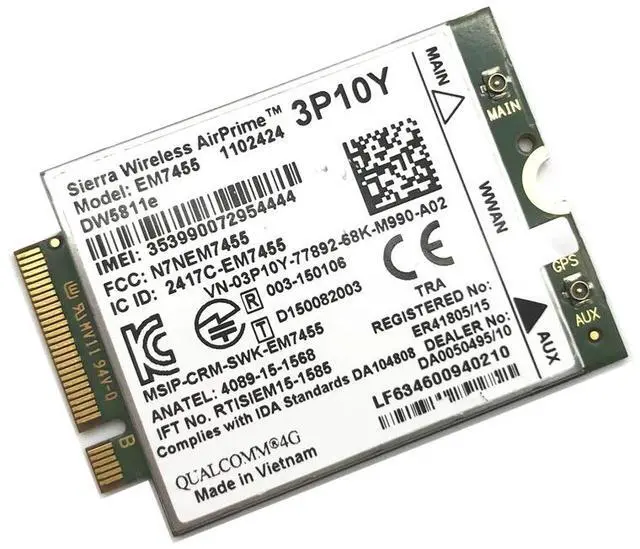

Wireless EM7455 LTE 4G NGFF Module DW5811E KF1W5/MR7VT/2J05X/1DPXG/3P10Y E7270 E7470 E7370 E5570 FDD/TDD LTE 4G Cat6 Gobi6000

Condition: Used, test before ship out!
Part Number: KF1W5/ MR7VT/ 2J05X/ 1DPXG/ 3P10Y/ Cat-6 reliable 4G LTE M2M with fallback 3G connectivity to the Americas and EMEA The EM7455 module is part of the EM Series offering unprecedented LTE speeds, bandwidth, and network performance In the M. 2 form factor commonly used in network equipment. This LTE-Advanced Cat-6 embedded module offers up to 300 Mbps download speed and supports most 4G LTE bands In the market by providing coverage for the Americas and EMEA in a single SKU. With automatic fallback for 3G networks And integrated GNSS receiver (GPS, GLONASS, Beidou, and supported Galileo satellite systems), the EM7455 is ideal for Networking and telematic applications. Together with the largest operator certifications in the industry and network switching capability, EM7455 (EM7430 to APAC) Allows customers to change their network provider at any time, providing more flexibility in manufacturing. LTE Support (North America / EMEA) -B1 (2100 MHz), B2 (1900 MHz), B3 (1800 MHz), B4 (1700 MHz AWS), B7 (800 MHz-DD), B7 (800 MHz-B), B7 (2600 MHz), B8 (900 MHz), B8 (900 MHz), VITAMIN B12 B25 (1900 MHz), B26 (850 MHz), B29 (700 MHz-D block), B30 (2300 MHz), B41 HSPA + Support Band (Global) -B1 (2100 MHz), B2 (1900 MHz), B3 (1800 MHz), B4 (1700 MHz   AWS), B5 (850 MHz), B8
(900 MHz) specifications: Sierra Wireless Airprime EM7455 Technical Specifications:
Category: 4G
Module Manufacturer: Sierra
Wireless Chipset: Qualcomm
Form Factor: PCIe M.
2 Pins: 52-pin Frequency bands
LTE FDD: Band B1-B5, B7, B12, B13, B17, B20, B25, B26, B29, B30, B41 UMTS /
HSPA +: B1, B2, B3, B4, B5, B8
Technologies: UMTS, HSDPA, HSPA +, LTE
Maximum Download Speed: 300
Mbps Max Upload Speed: 50
Mbps Temperature: -10 o C to 55 o C
Certifications / Regulatory:
Planned: FCC, IC, CE, NCC, GCF, PTCRB
Conveyors Approved:
Planned: AT & T, Verizon, Sprint, Vodafone, Telefonica, Orange
Connectors: Main, Aux / GNSS, GNSS
Satellite systems: GPS, Glonass, Beidou, Galileo
Modes: Standalone, SUPL 2.0, XTRA 3.0
Contrl Options: APIs, AT
Commands Rated voltage: 1.8 V Active
Antenna Control: 4 pin Dynamic
Power Control: 1-pin
Interfaces: "USB 3.0, USB 2.0
High Speed" SIM interface: 2x 1.8 v or 3 v
Audio: PCM / I2S
Other interfaces: Main Radio Disable, GNSS Disable, Flash Output LED, Wake on WAN, reset
Compatible with Dell: DELL Latitude 14 7000 Series E7470, DELL Latitude 12 7000 Series E7270, DELL Latitude 13 7000 Series E7370 DELL Latitude 15 5000 Series E5570 DELL Latitude 14 5000
Series E5470 Package Includes: 1 x WWAN Card
