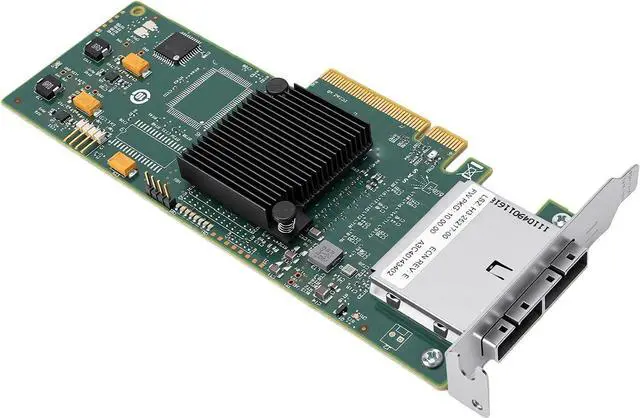

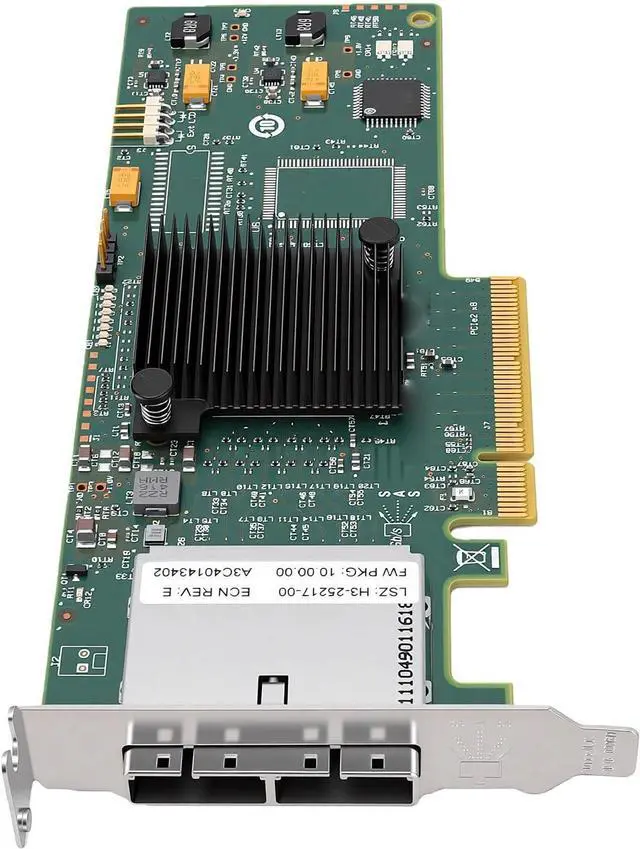

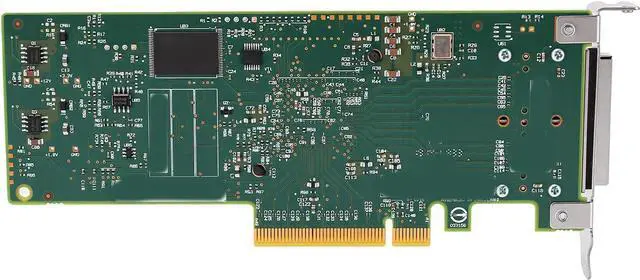

Jiawu High Speed 8 Port HBA Controller Card for External Storage Expansion in Compact Rack Servers
- Item #: 9SIVU6VM1J7936
- Mfr. Part #: TOLDB0H86LXZY5
- UNSPSC: 43201404
- [HIGH-SPEED CONNECTIVITY] Experience exceptional data transfer rates of up to 6Gb/s with our 8-port SAS Serial ATA controller card, designed to enhance overall storage performance. With the capability of handling over 320,000 , expect rapid responsiveness that significantly boosts your storage solutions.
- [EXPANSIVE DEVICE SUPPORT] Seamlessly connect up to 512 devices, including HDDs, SSDs, and tape drives, making this controller card a perfect choice for JBOD or expansive configurations. Embrace flexibility and scalability tailored to high-density storage requirements.
- [RELIABLE PCIe 2.0 INTERFACE] Equipped with a robust PCIe 2.0 x8 interface, this controller card ensures stable high-speed data transfer by effectively reducing system bottlenecks. Enjoy an uninterrupted data workflow, essential for intensive tasks and large data sets.
- [DUAL SAS SFF-8088 PORTS] Featuring two x4 external SAS connectors (SFF-8088), this controller card enables the easy connection of multiple storage ar
+
+
Overview
Specs
Reviews
Specification:
Item Type: SAS HBA Controller Card
Model: Support for LSI SAS 9200-8e (LSI00188)
Controller: Support for LSI SAS2008 (Support for Fusion-MPT 2.0)
Bus Interface: PCIe 2.0 x8 (5GT/s bandwidth)
External Ports: 2 x SFF-8088 SAS (8 SAS channels total)
Data Rate: 6Gb/s (SAS 2.0, backward compatible with 3Gb/s/1.5Gb/s)
Maximum Devices Supported: 512 SAS Serial ATA HDD SSD
Input Output Operations Per Second: >320,000 (high concurrency performance)
Power Consumption: 13.5W
Form Factor: Low Profile Full Height (MD2)
Operating Temperature: 0°C - 70°C
Firmware Mode: IT Mode (non-), JBOD supported
High Bandwidth: PCIe 2.0 x8 + 8x6Gb/s SAS, ideal for big data, high throughput
Compatibility:
Supports SAS Serial ATA HDD SSD tape drives
Compatible with 4Kn (4096 byte ) drives
UEFI BIOS supported
OS Support: Support for , Support for Support for VMware
Application:
NAS storage servers (Support for , Support for , Support for )
External storage expansion
Virtualization database high IO scenarios
How to Use:
Installation is completed.
PackageList:
1 x External PCIe Controller Card
Note:
Item Type: SAS HBA Controller Card
Model: Support for LSI SAS 9200-8e (LSI00188)
Controller: Support for LSI SAS2008 (Support for Fusion-MPT 2.0)
Bus Interface: PCIe 2.0 x8 (5GT/s bandwidth)
External Ports: 2 x SFF-8088 SAS (8 SAS channels total)
Data Rate: 6Gb/s (SAS 2.0, backward compatible with 3Gb/s/1.5Gb/s)
Maximum Devices Supported: 512 SAS Serial ATA HDD SSD
Input Output Operations Per Second: >320,000 (high concurrency performance)
Power Consumption: 13.5W
Form Factor: Low Profile Full Height (MD2)
Operating Temperature: 0°C - 70°C
Firmware Mode: IT Mode (non-), JBOD supported
High Bandwidth: PCIe 2.0 x8 + 8x6Gb/s SAS, ideal for big data, high throughput
Compatibility:
Supports SAS Serial ATA HDD SSD tape drives
Compatible with 4Kn (4096 byte ) drives
UEFI BIOS supported
OS Support: Support for , Support for Support for VMware
Application:
NAS storage servers (Support for , Support for , Support for )
External storage expansion
Virtualization database high IO scenarios
How to Use:
Installation is completed.
PackageList:
1 x External PCIe Controller Card
Note:
