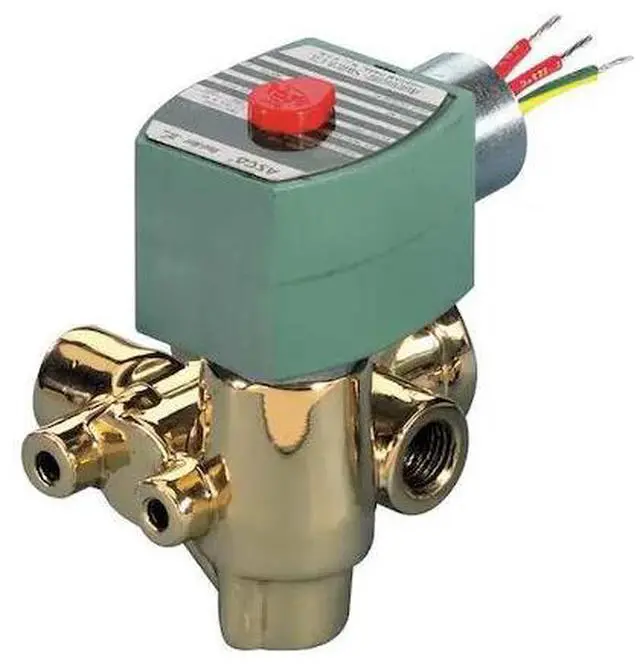

ASCO 8321G001120/60,110/50DA Solenoid Valve, 3-Way, 2-Position, Normally

The ASCO 8321G001120/60,110/50DA is a pilot-operated, normally closed solenoid valve designed to control the flow of air, inert gas, light oil, and water. It features a brass body and operates with a single air pilot actuator. The valve supports horizontal or vertical mounting orientations and is rated for operation with air, inert gas, light oil, and water within the specified pressure differential (minimum 10 psi for light oil; maximum 200 psi for air/inert gas/light oil/water) and maximum fluid temperature of 180°F. It includes the solenoid coil and necessary seals for installation and operation.

Key Features:

• - Valve Type: Quick Exhaust, 3-Way, 2-Position configuration
• - Body Material: Brass construction
• - Connections: NPTF inlet and outlet with 1/4 in nominal pipe size
• - Orifice Diameter: 9/32 in
• - Flow Coefficient (Cv): 0.8
• - Operating Pressure Differential: 10 psi minimum (Light Oil); 200 psi maximum (Air/Inert Gas, Light Oil, Water)
• - Maximum Fluid Temperature: 180°F
• - Coil: Included, 120V AC, 50/60 Hz, 6.1 W power consumption, Class F insulation
• - Electrical Connections: 1/2 in conduit with 18 in leads
• - Coil Enclosure: Watertight, without junction box
• - Environmental Rating: Indoor and outdoor use with IP66 protection
• - Seal Material: NBR (Buna-N)
• - Dimensions: Overall length 3-1/8 in; height 3-15/16 in; width 2-1/2 in
• - Mounting Orientation: Horizontal or vertical
• - Standards: ATEX, CSA, IEC Ex Zone 1-21, SIL, UL Listed
