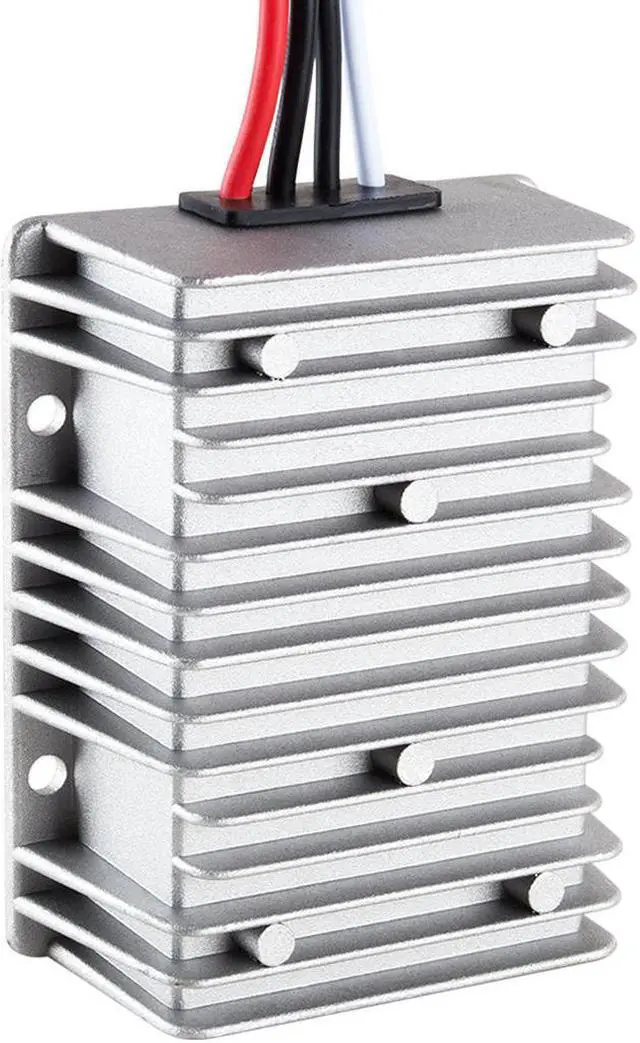

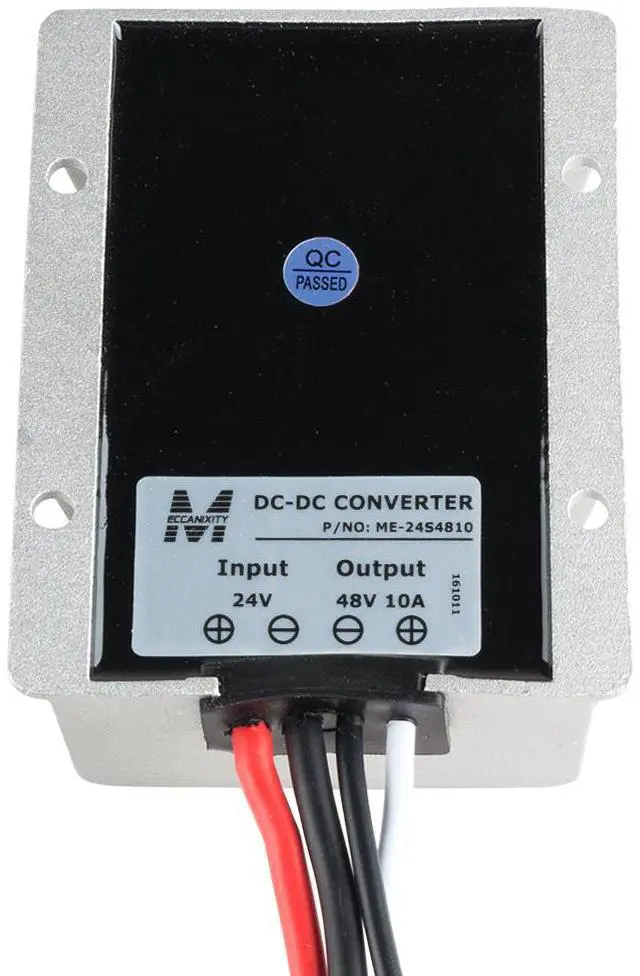

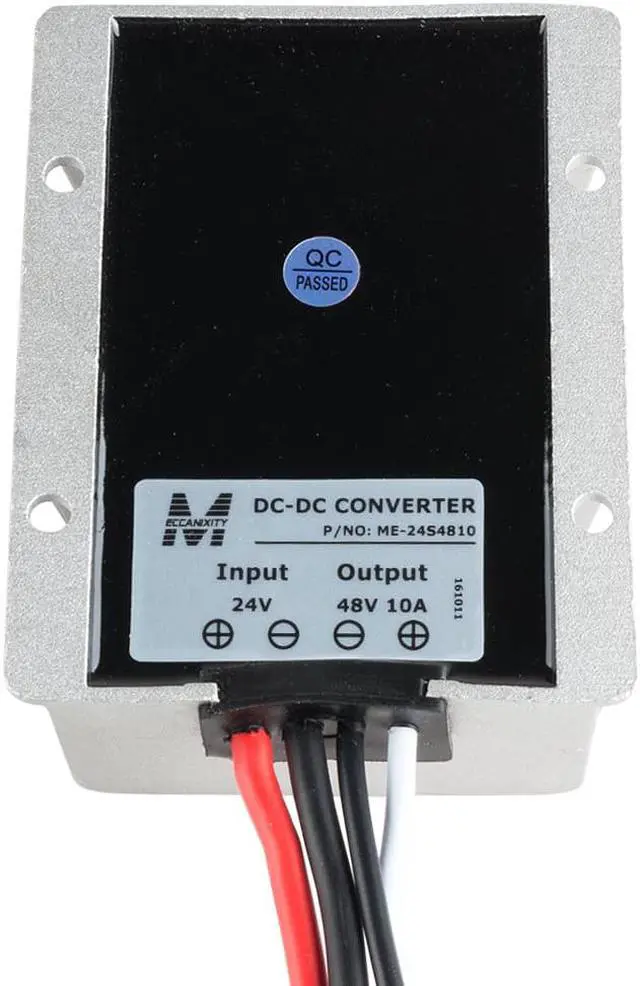

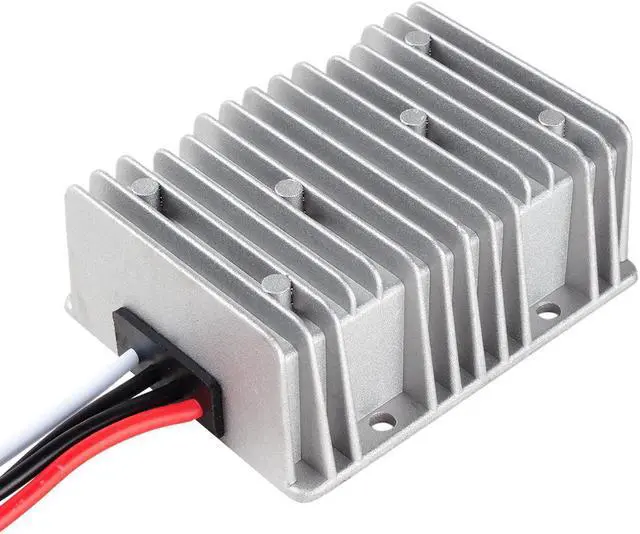

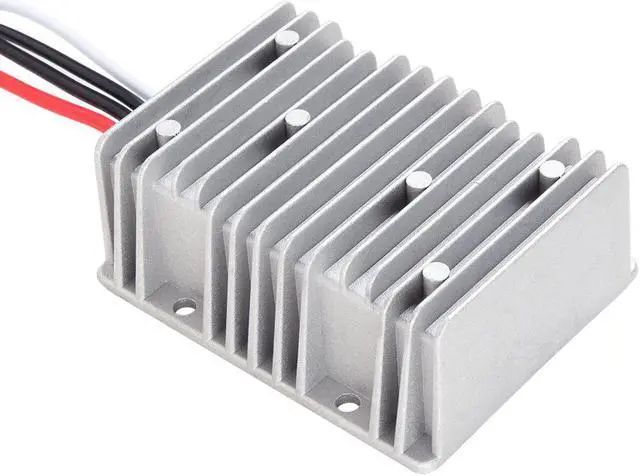

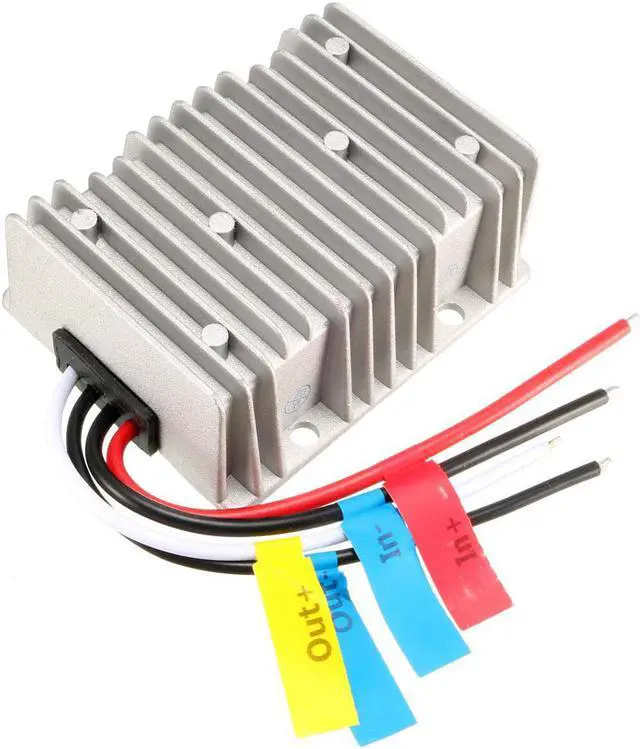

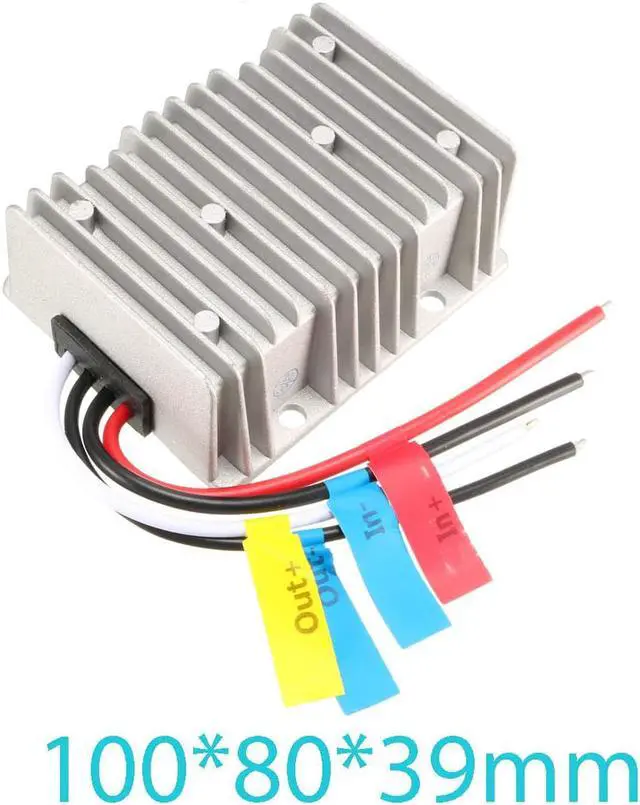

Unique Bargains Voltage Converter Regulator DC/DC DC 24V to DC 48V 10A 480W Power Boost
- Item #: 9SIV0KK7BF1380
- Mfr. Part #: a16101000ux1029
- UNSPSC: 39121017
- Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
- Auto-recovery when device is back to normal operating; high transfer efficiency of 96% max.
+
+
Overview
Specs
Reviews
Product Name: Waterproof Voltage Converter Regulator DC 24V to DC 48V 10A 480W
Features:
1. 100% full power and stable current output, non-isolated module.
2. Waterproof level IP68 and anti-shock protection, Ultra compact size, light weight.
3. Industry grade DC24V to DC 48V step-up converter,? efficiency up to 96%.
4. Die-cast aluminum shell, epoxy potting, cooling by free air convection.
5. Certificates: CE/RoHS, 1 year warranty, lifetime up to 100,000 hours.
6. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
Specifications:
* Input Rated Voltage: DC 24V
* Input Voltage Range: 20V-36V DC
* Output voltage: DC48V 10A
* Output Rated Power: 480W
* Efficiency: 96% (half load); 94% (full load)
* Output Peak Power: 600W
* Voltage Regulation: Less Than 1%
* Load Regulation: Less Than 2%
* Ripple(full load test)
Features:
1. 100% full power and stable current output, non-isolated module.
2. Waterproof level IP68 and anti-shock protection, Ultra compact size, light weight.
3. Industry grade DC24V to DC 48V step-up converter,? efficiency up to 96%.
4. Die-cast aluminum shell, epoxy potting, cooling by free air convection.
5. Certificates: CE/RoHS, 1 year warranty, lifetime up to 100,000 hours.
6. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
Specifications:
* Input Rated Voltage: DC 24V
* Input Voltage Range: 20V-36V DC
* Output voltage: DC48V 10A
* Output Rated Power: 480W
* Efficiency: 96% (half load); 94% (full load)
* Output Peak Power: 600W
* Voltage Regulation: Less Than 1%
* Load Regulation: Less Than 2%
* Ripple(full load test)
