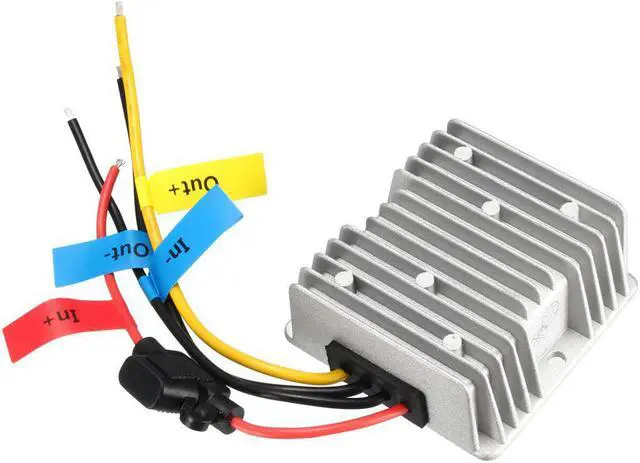

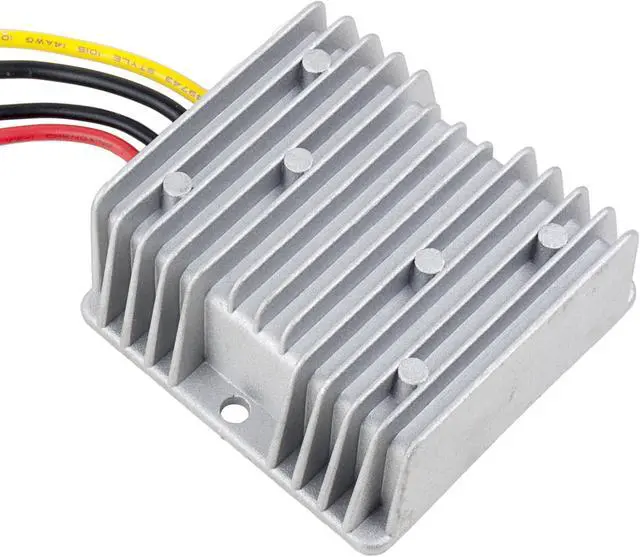

DC 24V to DC 12V 20A 240W Car Power Supply Module Converter Regulator Waterproof
- Item #: 9SIV0KK7BE6090
- Mfr. Part #: a16010800ux0005
- UNSPSC: 39121017
- Si-Fe Cores magnetic loop, high temperature resistance and super stability.
- The import high heat conduction organic silica gel filling and sealing technology.
+
+
Overview
Specs
Reviews
Features:
1. 100% full power and stable current output
2. 100% Imported components
3. Wide input voltage from 19-35Vdc
4. 100% waterproof and anti-shock protection, Ultra compact size, light weight
5. Industry grade DC24V to DC12V step-down converter, efficiency up to 92%
6.
Certificates: CE/RoHS
7.
Waterproof level: IP68
8. Die-cast aluminum shell, epoxy potting, Cooling by free air convection,
9.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and
Short-circuit, Auto-recovery when device is back to normal operating
10. Non-Isolated Module
11. Lifetime up to 100, 000 hours.
Input rated voltage 24V DC
Input voltage range 19-35V DC
Efficiency 94% (half load); 92% (full load)
Output voltage 12V DC
Output current 20 Amps
Output rated power 240 Watts
Output peak power 125%
Voltage regulation less than 1%
Load regulation less than 2%
Ripple (full load test) less than 50mV
No-load current less than 25mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP 68
Protections Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage

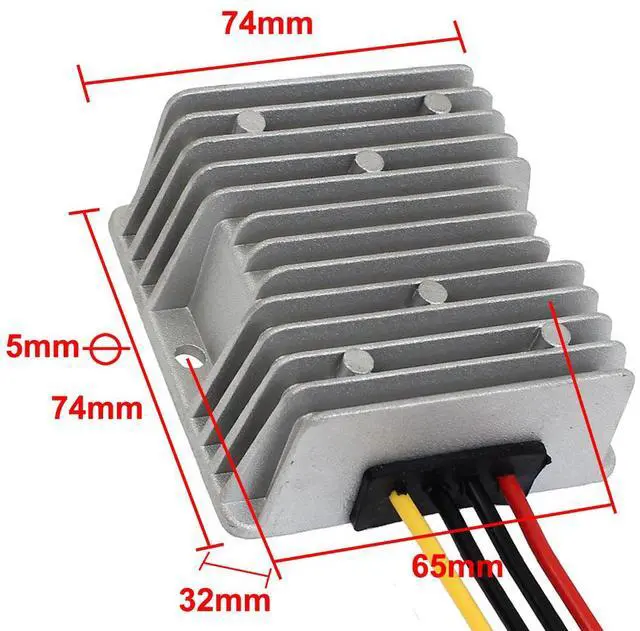

Machine size 74*74*32mm
N. Weight 300g
Cooling way Free air convection
Package Content: 1 x Power Converter Regulator Waterproof

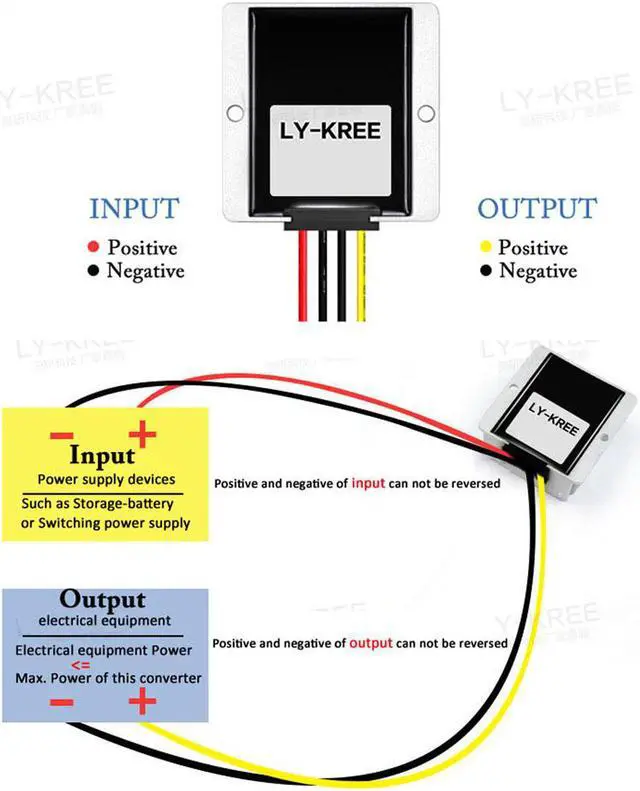

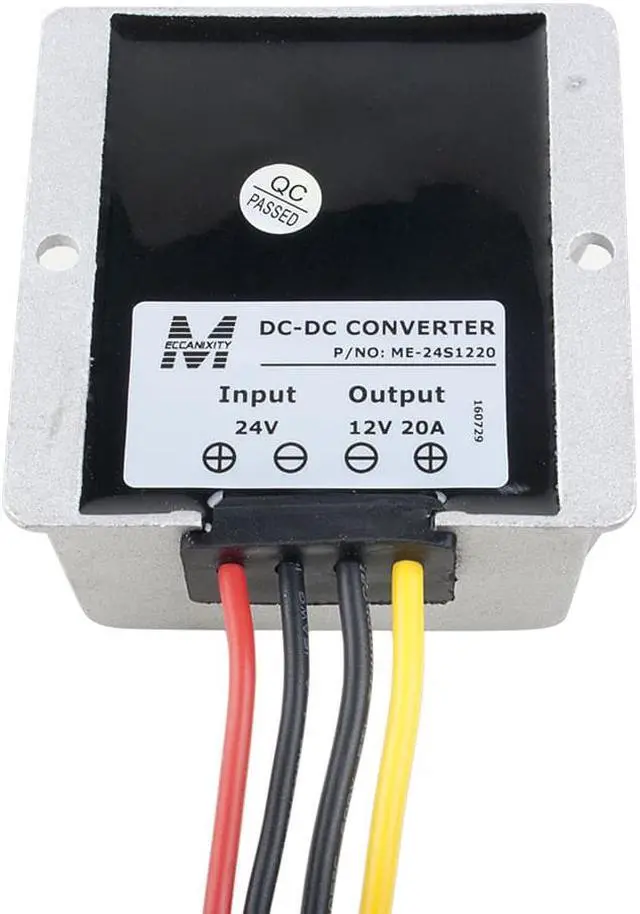

Note: The positive and negative pole, input and output connection are marked on the back of the product, be sure not to connect incorrectly
1. 100% full power and stable current output
2. 100% Imported components
3. Wide input voltage from 19-35Vdc
4. 100% waterproof and anti-shock protection, Ultra compact size, light weight
5. Industry grade DC24V to DC12V step-down converter, efficiency up to 92%
6.
Certificates: CE/RoHS
7.
Waterproof level: IP68
8. Die-cast aluminum shell, epoxy potting, Cooling by free air convection,
9.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and
Short-circuit, Auto-recovery when device is back to normal operating
10. Non-Isolated Module
11. Lifetime up to 100, 000 hours.
Specifications
:Input rated voltage 24V DC
Input voltage range 19-35V DC
Efficiency 94% (half load); 92% (full load)
Output voltage 12V DC
Output current 20 Amps
Output rated power 240 Watts
Output peak power 125%
Voltage regulation less than 1%
Load regulation less than 2%
Ripple (full load test) less than 50mV
No-load current less than 25mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP 68
Protections Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage
Machine size 74*74*32mm
N. Weight 300g
Cooling way Free air convection
Package Content: 1 x Power Converter Regulator Waterproof
Note: The positive and negative pole, input and output connection are marked on the back of the product, be sure not to connect incorrectly
