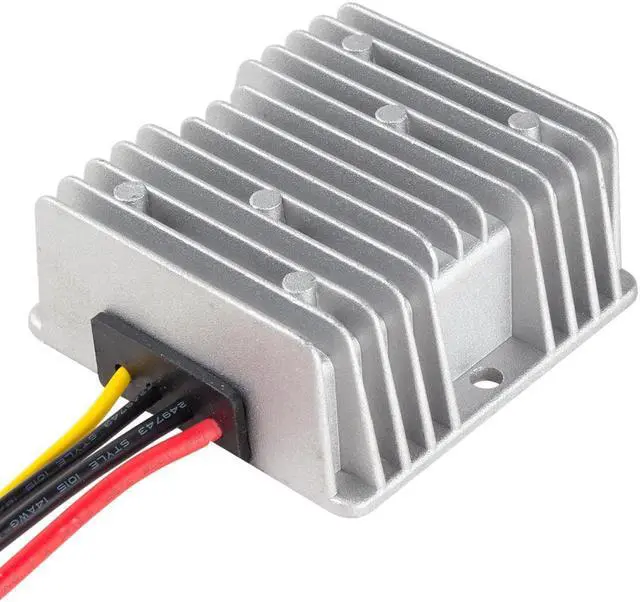

Unique Bargains Voltage Converter Regulator DC/DC DC 12V to DC 48V 3A 144W Power Boost
- Item #: 9SIV0KKATR0592
- Mfr. Part #: a16101000ux1027
- UNSPSC: 39121017
- Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
- Auto-recovery when device is back to normal operating; high transfer efficiency of 95% max.
+
+
Overview
Specs
Reviews
Features: 1. 100% full power and stable current output 2. 100% Imported components
3. Wide input voltage from 10-16Vdc 4. 100% waterproof and anti-shock protection, Ultra compact size, light weight
5. Industry grade DC12V to DC48V step-up converter, efficiency up to 94%
6.
Certificates: CE/RoHS
7.
Waterproof level: IP68

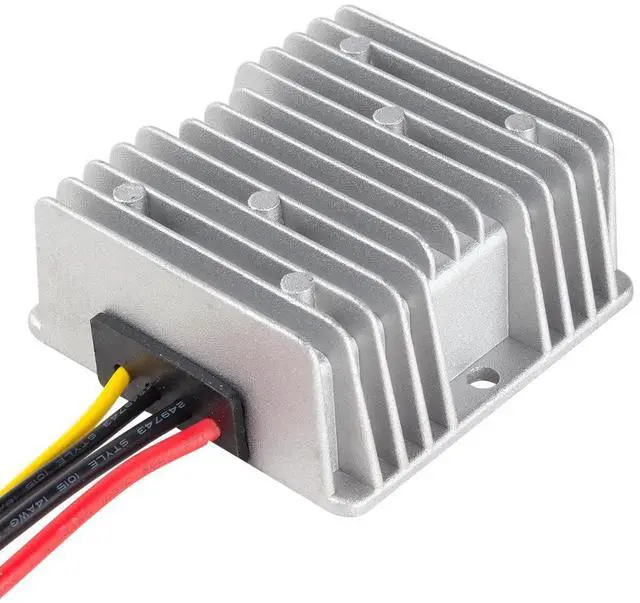

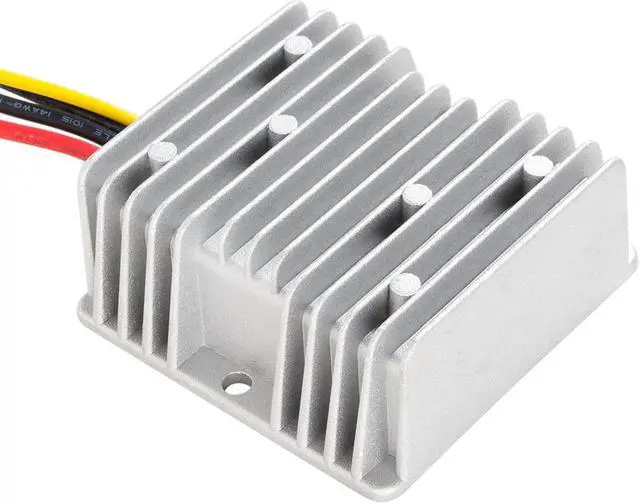

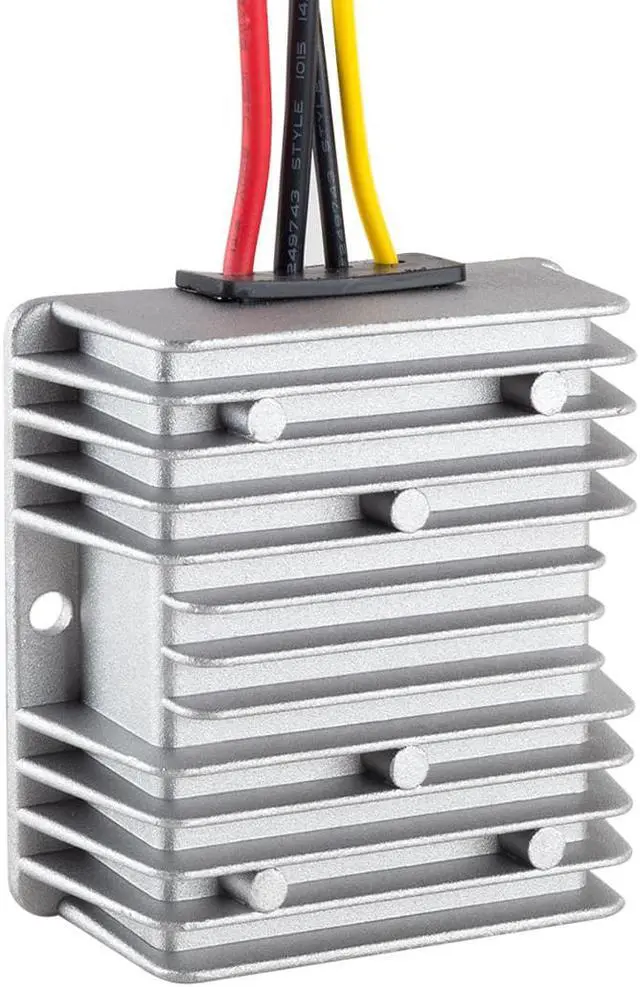

8. Die-cast aluminum shell, epoxy potting, Cooling by free air convection,
9.
Protections: Over-current, Over-voltage, Over-temperature and Over-load Auto-recovery when device is back to normal operating
10. Non-Isolated Module
11. Lifetime up to 100, 000 hours.

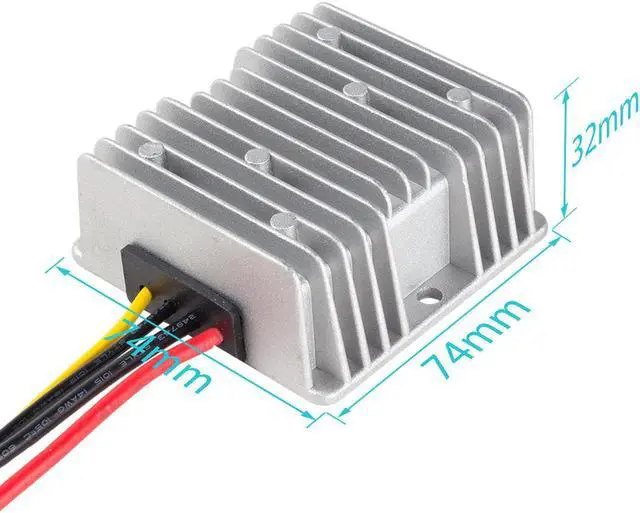

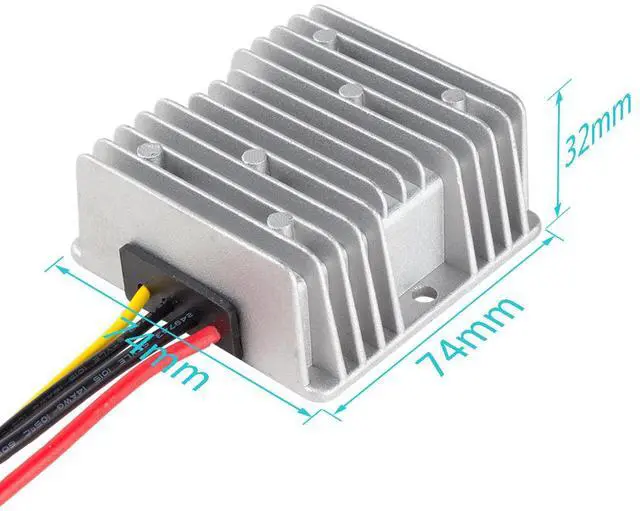

Specifications: Input rated voltage 12V DC Input voltage range 10-16V DC Efficiency 95% (half load); 94% (full load) Output voltage 48V DC Output current 3 Amps Output rated power 144 Watts Output peak power 125% Voltage regulation Less Than 1% Load regulation Less Than 2% Ripple (full load test) Less Than 150mV No-load current Less Than 20mA Working Temperature -40celsuis ~ +80celsuis Waterproof rating IP 68 Protections Over-load, Over-current, Over-temperature, Over-voltage Machine size 74*74*32mm W. Weight 300g Cooling way Free air convection
Contain: 1 x Waterproof DC

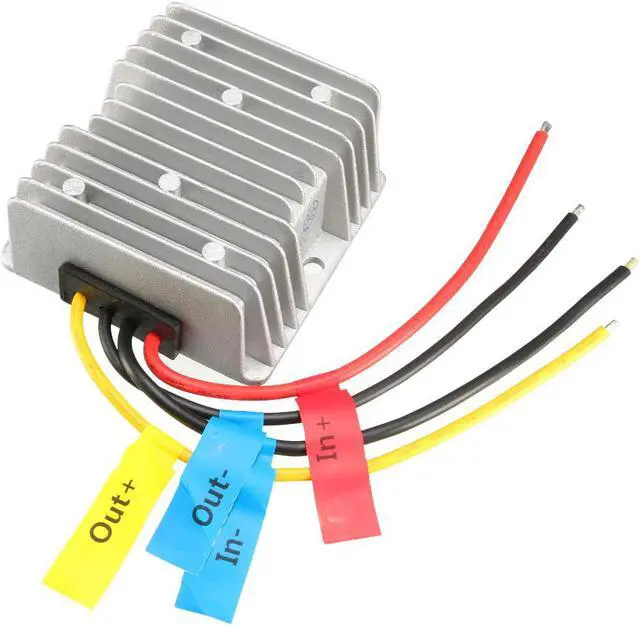

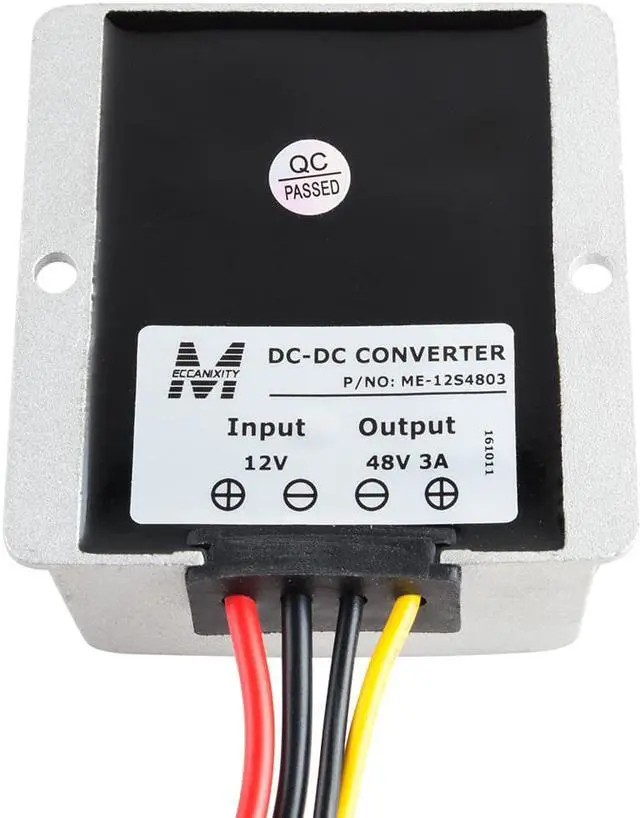

Power Converter Note: The positive and negative pole, input and output connection are marked on the back of the product, be sure not to connect incorrectly
3. Wide input voltage from 10-16Vdc 4. 100% waterproof and anti-shock protection, Ultra compact size, light weight
5. Industry grade DC12V to DC48V step-up converter, efficiency up to 94%
6.
Certificates: CE/RoHS
7.
Waterproof level: IP68
8. Die-cast aluminum shell, epoxy potting, Cooling by free air convection,
9.
Protections: Over-current, Over-voltage, Over-temperature and Over-load Auto-recovery when device is back to normal operating
10. Non-Isolated Module
11. Lifetime up to 100, 000 hours.
Specifications: Input rated voltage 12V DC Input voltage range 10-16V DC Efficiency 95% (half load); 94% (full load) Output voltage 48V DC Output current 3 Amps Output rated power 144 Watts Output peak power 125% Voltage regulation Less Than 1% Load regulation Less Than 2% Ripple (full load test) Less Than 150mV No-load current Less Than 20mA Working Temperature -40celsuis ~ +80celsuis Waterproof rating IP 68 Protections Over-load, Over-current, Over-temperature, Over-voltage Machine size 74*74*32mm W. Weight 300g Cooling way Free air convection
Contain: 1 x Waterproof DC
Power Converter Note: The positive and negative pole, input and output connection are marked on the back of the product, be sure not to connect incorrectly
