LINKUP Cat6 RJ45 Pass Through Connectors | Self-Protective Curved Unbendable Latch - No Boot Required | Durable, Space-Saving Ethernet Ends for Solid & Stranded Cable | Performance RJ45 Termination
- Item #: 9SIVSNWKTG2924
- Mfr. Part #: GENXB07S66F331
- UNSPSC: 26121604

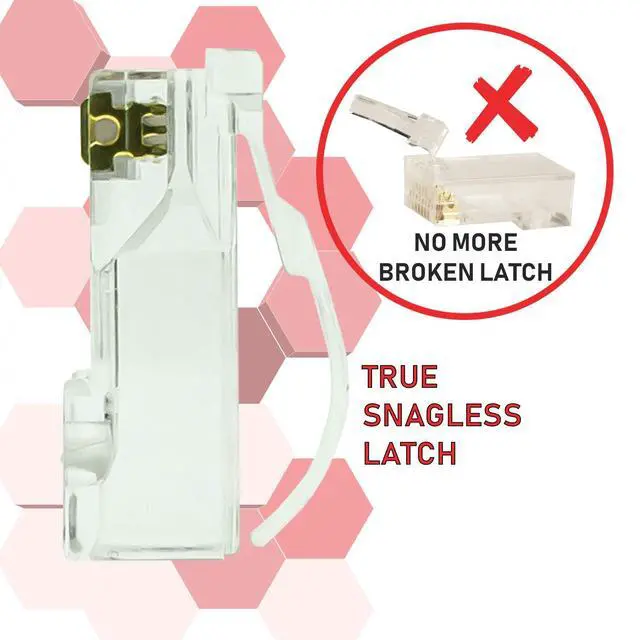

- CURVED SNAGLESS LATCH FOR MORE SECURE CONNECTIONS , NO BOOT REQUIRED - LINKUPs proprietary curved latch delivers a spring-like locking force that grips network ports more securely than standard flat latches. The reinforced design resists breakage and eliminates the need for bulky boots, ensuring long-term reliability.

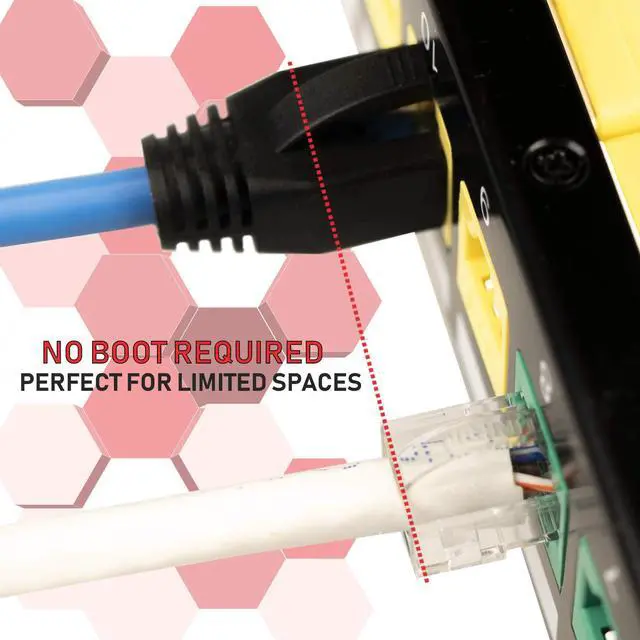

- SLIM NO-BOOT DESIGN IDEAL FOR TIGHT NETWORK PANEL - Without traditional, bulky boots, these connectors maintain a compact profile thats perfect for crowded patch panels, switches, and wall platesmaking cable management cleaner and easier in limited-space environments.
- PROFESSIONAL CAT6 PASS-THROUGH DESIGN FOR PRECISE TERMINATIONS - Pass-through construction allows full conductor visibility for accurate wire alignment and quicker crimps. Precision-molded housing ensures consistent terminations for installers who demand efficiency and accuracy.

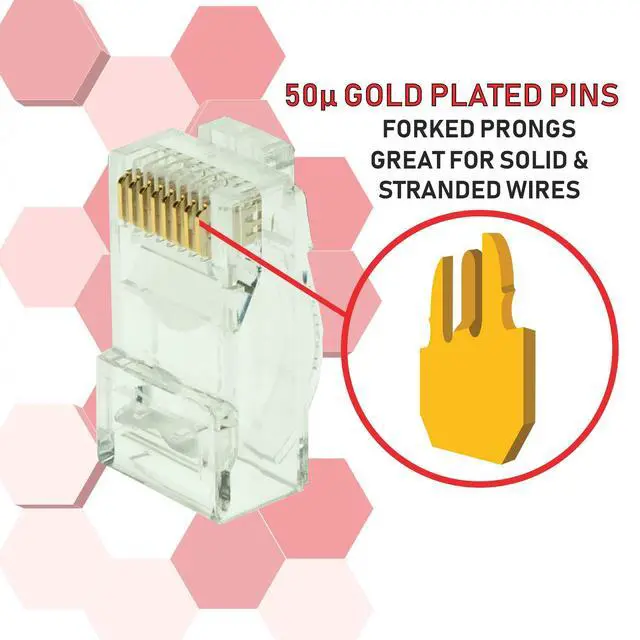

- 50-MICRON GOLD-PLATED CONTACTS FOR EXCEPTIONAL SIGNAL INTEGRITY - Premium 50µ gold-plated contacts provide superior conducti
+
+
Overview
Specs
Reviews
Get Wired

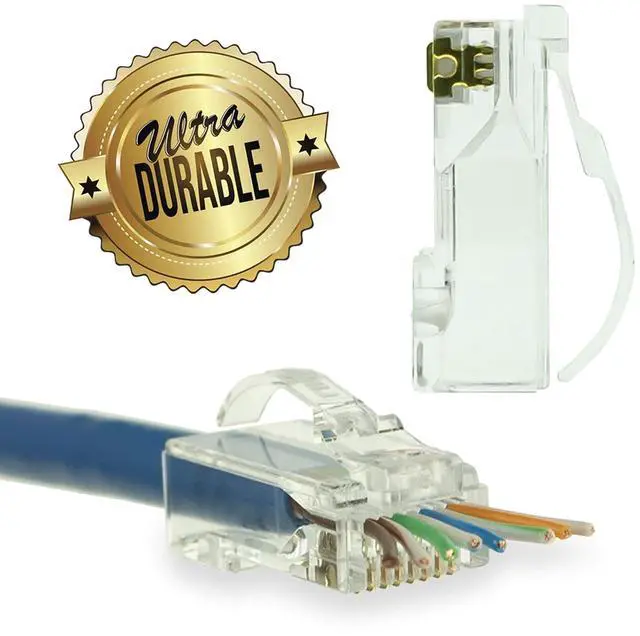

LINKUP Cat6 RJ45 Snagless Unshielded and Shielded Twisted Pair Easy Pass-Thru Modular Connectors maintain gigabit Ethernet performance standards. Featuring an easy to assemble pass-through design, ultra-durable snag-less latch and a quality build that meets all certification standards.
Compatible with all Category 6 8p8c wires between 24 to 26 AWG.Transparent casing for easy to pinout and routing sequence verificationSnagless latch design protects latch from breaking for a secure connection.Backward compatible with Cat5e and Cat5 cables.Featuring platinum 24K 50m gold-plated 3-pronged design for reliable fast connections solid or stranded wires.LINKUP Cat6 Snagless Connectors are tested and are RoHS, UL, Reach and FCC standards-compliant, and ISO 9001, ISO 14001 Certified.Compliant with application standard PoE+ (Power over Ethernet Plus).
Important Notes:
Maximum length of Cat6 ethernet cable should not exceed 328 ft / 100 m.Boots are optional.Only compatible with LINKUP Snagless Boots and LINKUP zTL-C6EZ Hand Tool.
LINKUP trusted by network professionals.

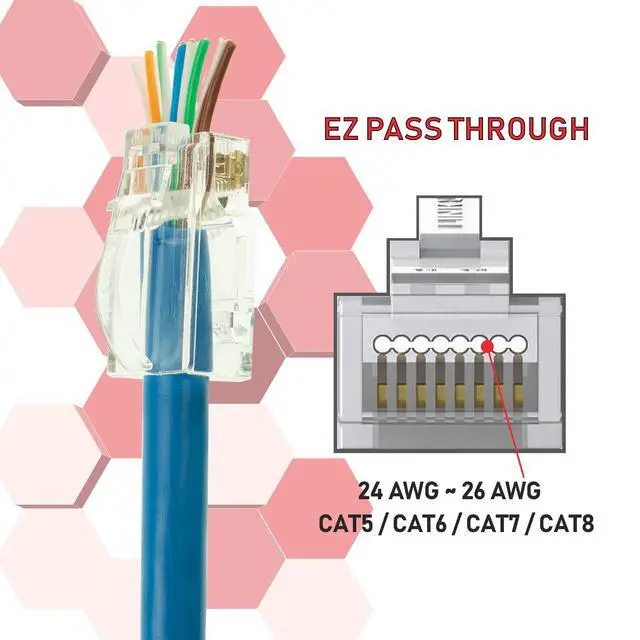

24-26 AWG wiresSuitable for Category 6 data network cables.Easily feed twisted pairs in one end and out the other.Maximum Insulated wire outside diameter is 1.10mm
Plenty of space within the connector funnels toward the tip allowing for an easy-to-feed experience. True Snagless latch resists snags.

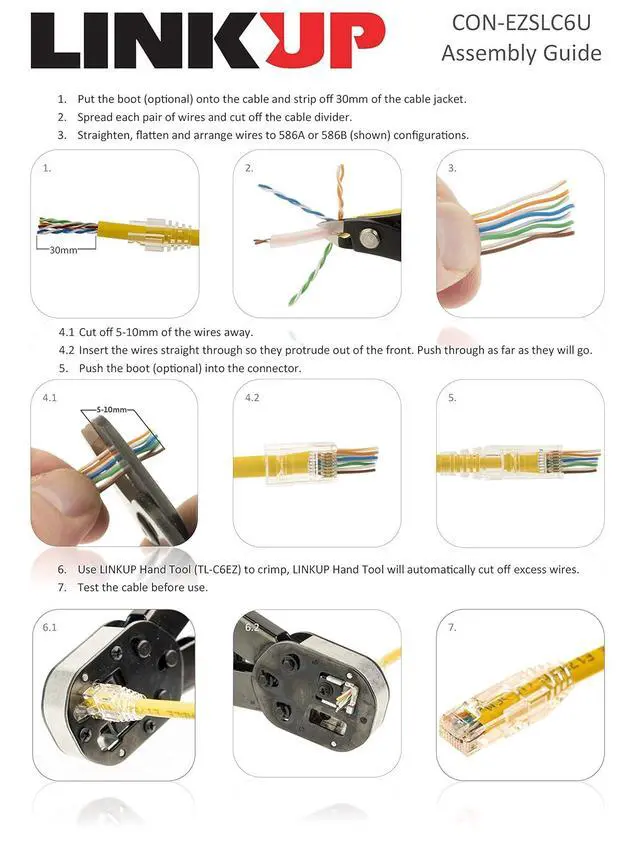

1.Put the boot (optional) onto the cable and strip off 30mm of the cable jacket.
2.Spread each pair of wires and cut off the cable divider.
3.Straighten, flatten and arrange wires to 586A or 586B (shown) configurations.
4.1 Cut off 5-10mm of the wires away.
4.2 Insert the wires straight through so they protrude out of the front. Push through as far as they will go.
5.Push the boot (optional) into the connector.
6.Use LINKUP Hand Tool (TL-C6EZ) to crimp, LINKUP Hand Tool will automatically cut off excess wires.
7.Test the cable before use.
Easy Pass Through True Snagless UTP Unshielded Easy Plug Assembly Guide
LINKUP Cat6 RJ45 Snagless Unshielded and Shielded Twisted Pair Easy Pass-Thru Modular Connectors maintain gigabit Ethernet performance standards. Featuring an easy to assemble pass-through design, ultra-durable snag-less latch and a quality build that meets all certification standards.
Compatible with all Category 6 8p8c wires between 24 to 26 AWG.Transparent casing for easy to pinout and routing sequence verificationSnagless latch design protects latch from breaking for a secure connection.Backward compatible with Cat5e and Cat5 cables.Featuring platinum 24K 50m gold-plated 3-pronged design for reliable fast connections solid or stranded wires.LINKUP Cat6 Snagless Connectors are tested and are RoHS, UL, Reach and FCC standards-compliant, and ISO 9001, ISO 14001 Certified.Compliant with application standard PoE+ (Power over Ethernet Plus).
Important Notes:
Maximum length of Cat6 ethernet cable should not exceed 328 ft / 100 m.Boots are optional.Only compatible with LINKUP Snagless Boots and LINKUP zTL-C6EZ Hand Tool.
LINKUP trusted by network professionals.
24-26 AWG wiresSuitable for Category 6 data network cables.Easily feed twisted pairs in one end and out the other.Maximum Insulated wire outside diameter is 1.10mm
Plenty of space within the connector funnels toward the tip allowing for an easy-to-feed experience. True Snagless latch resists snags.
1.Put the boot (optional) onto the cable and strip off 30mm of the cable jacket.
2.Spread each pair of wires and cut off the cable divider.
3.Straighten, flatten and arrange wires to 586A or 586B (shown) configurations.
4.1 Cut off 5-10mm of the wires away.
4.2 Insert the wires straight through so they protrude out of the front. Push through as far as they will go.
5.Push the boot (optional) into the connector.
6.Use LINKUP Hand Tool (TL-C6EZ) to crimp, LINKUP Hand Tool will automatically cut off excess wires.
7.Test the cable before use.
Easy Pass Through True Snagless UTP Unshielded Easy Plug Assembly Guide
