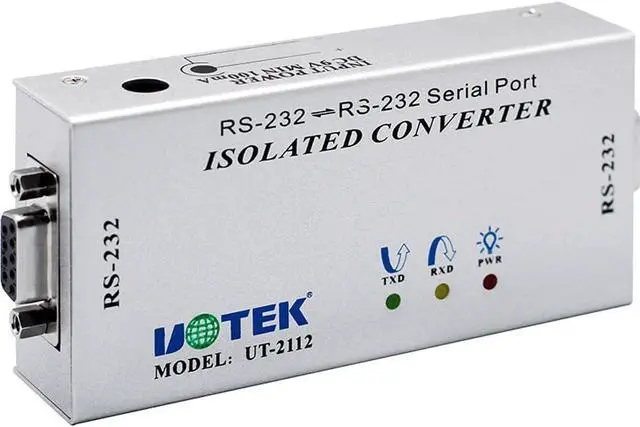

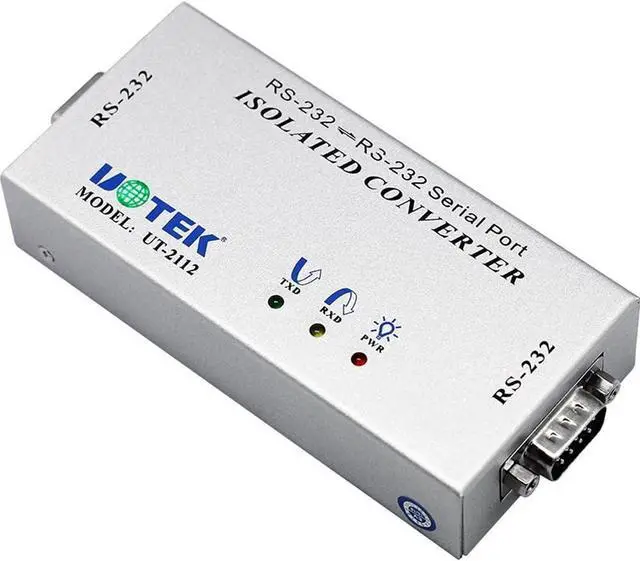

UTEK UT-2112 External-Powered RS-232 Repeater Mini-Size PhotoElectric Isolator Full-line
- Item #: 9SIVU6VM1B9485
- Mfr. Part #: TOLKB00GI9GRMC
- UNSPSC: 26121604
- Standards: EIA RS-232, CCITT V.24 asynchronous protocol Interface: two DB9 on both sides
- Transmission mode: Asynchronous, full-duplex, full transparent Isolated voltage: 2,500Vrms impulse or 500VDC
- Baudrate: 300BPS-11,5200BPS Voltage: DC9V-48V input

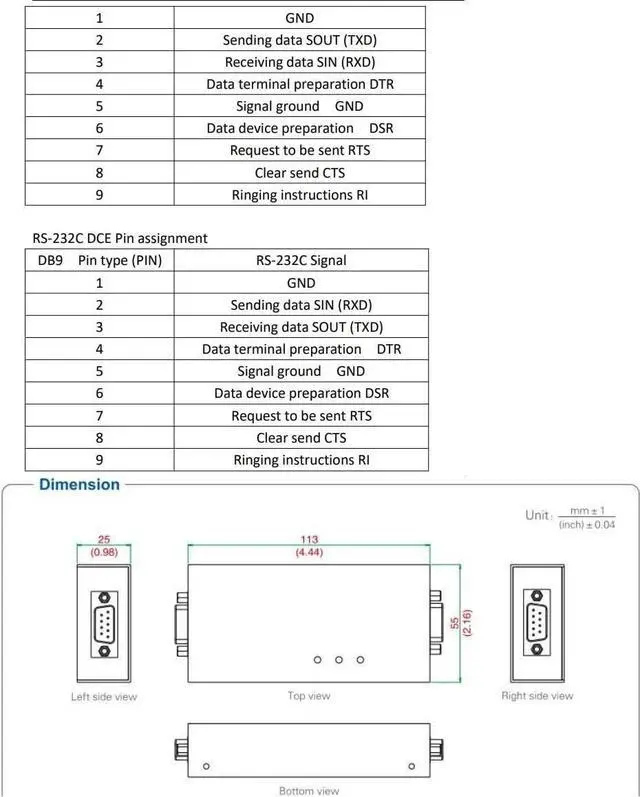

- Dimension: 113mmX55mmX25mm Weight: 150g Operating temperature: -40 to 85
- Relative humidity: 5% to 95%
+
+
Overview
Specs
Reviews
Standards: EIA RS-232, CCITT V.24 asynchronous protocol Interface: two DB9 on both sides
Transmission mode: Asynchronous, full-duplex, full transparent Isolated voltage: 2,500Vrms impulse or 500VDC
Baudrate: 300BPS-11,5200BPS Voltage: DC9V-48V input
Dimension: 113mmX55mmX25mm Weight: 150g Operating temperature: -40 to 85
Relative humidity: 5% to 95%
Transmission mode: Asynchronous, full-duplex, full transparent Isolated voltage: 2,500Vrms impulse or 500VDC
Baudrate: 300BPS-11,5200BPS Voltage: DC9V-48V input
Dimension: 113mmX55mmX25mm Weight: 150g Operating temperature: -40 to 85
Relative humidity: 5% to 95%
