Motherboard Serial to Parallel SATA to IDE/IDE to SATA Drive Interface converter Bi-Directional Adapter card

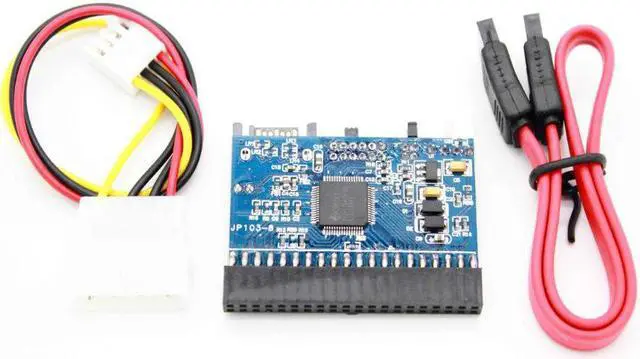

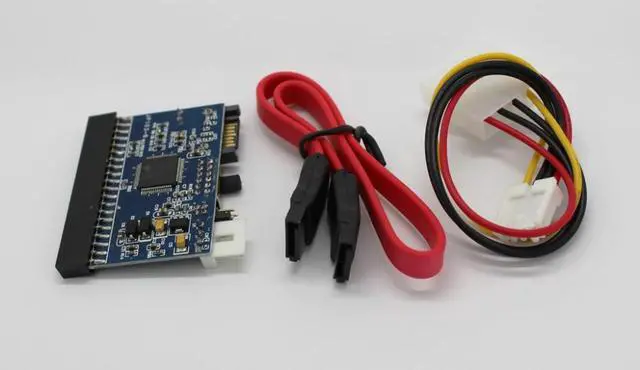

Products: 1 bi-directional converter for serial and parallel SATA 2 with two-way transmission function: SATA hard drive to IDE converter or IDE drive to SATA Host Converter 3 the converter is adapted to the bidirectional transmission of series and parallel ATA, which comprises a serial ATA PHY, connection, transmission, and parallel ATA adapter, serial media, and transmission line with a serial connection ATA 1.0, supports 1.5GHZ digital transmission rate. No driver, can be found directly in the hard drive in the host BIOS or DOS, WINDOWS in
Conversion Card

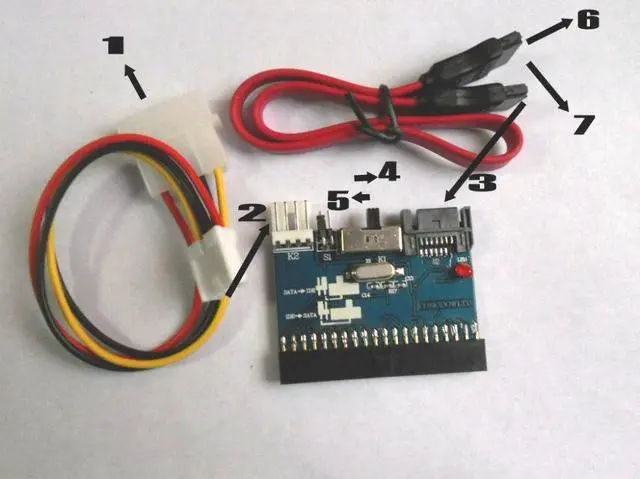

Description: There is a 40pin IDE port. Connect IDE cable There is a SATA port There is a 4pin power port The parallel ATA devices convert SATA Support ATA 100/133 hard Compatible with SATA 1.0 standard One 40pin IDE port One Serial ATA port One 4pin power connector Converts Parallel ATA to Serial ATA Supports ATA 100/133 Compliant with
Serial ATA specification Installation: 1. Before the operation should first mainframe computer power is off; 2. Open the computer case, the HW-629 board seats into the computer motherboard IDE IDE seat (IDE interface board); 3. The large end of the distribution of the power cord is connected to the chassis power supply spare power cord, one end of a small board in HW-629 (white transposons, pay attention to the direction can not be reversed); 4. The data lines are equipped with one end connected to HW-629 SATA board seat, one end connected to the SATA interface SATA devices; 5. Connect the computer to boot into the BIOS for device detection, the host computer should be able to correctly identify the connection of SATA devices.
